High strength Gear and Hub for heavy application.
✔
Integral spring applied hydraulic release braking system.
✔
Flange & cartridge mount fit most of standard Hydraulic Motor.
✔
Standard and custom mounting flanges, rim & stud patterns.
✔
Optional Ratio: 25, 48, 55, etc.
✔
Free Wheel function is optional.
✔
Electric Motor connection is optional.
Our Products are with OEM quality and widely used by big machinery manufacturers such as Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion and other main brand Excavators.
💡
Frequently Asked Questions

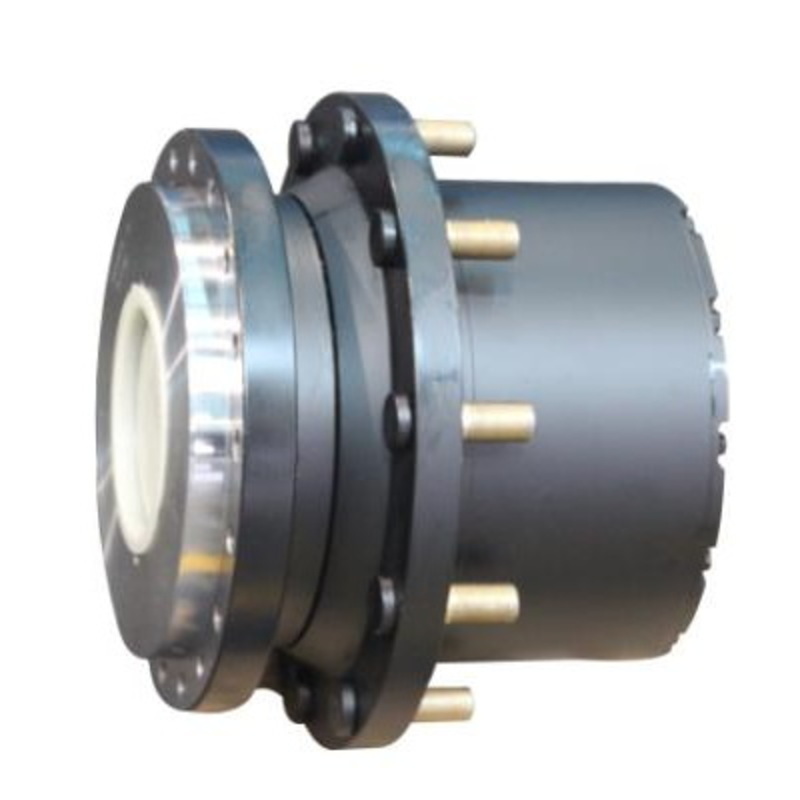

What is the maximum torque capacity of the WH007 Wheel Hub?
The WH007 series offers a maximum output torque of 7000 N.m and a rated output torque of 3500 N.m.
Can this planetary gearbox be used with electric motors?
Yes, the connection for electric motors is available as an optional feature, in addition to standard hydraulic motor compatibility.
What ratios are available for this series?
Standard ratios include 1:25, 48, and 55. Custom ratios can also be provided based on specific application requirements.
Does the WH007 include an integrated braking system?
Yes, it features an integral spring-applied, hydraulic-release braking system for enhanced safety and control.
Is there a free-wheel option for mobile machinery?
Yes, a free-wheel function is available as an option for specific wheel drive applications.
What is the approximate weight of the WH007 unit?
The approximate weight of the WH007 Wheel Hub is 40kg, making it a robust choice for heavy-duty applications.
