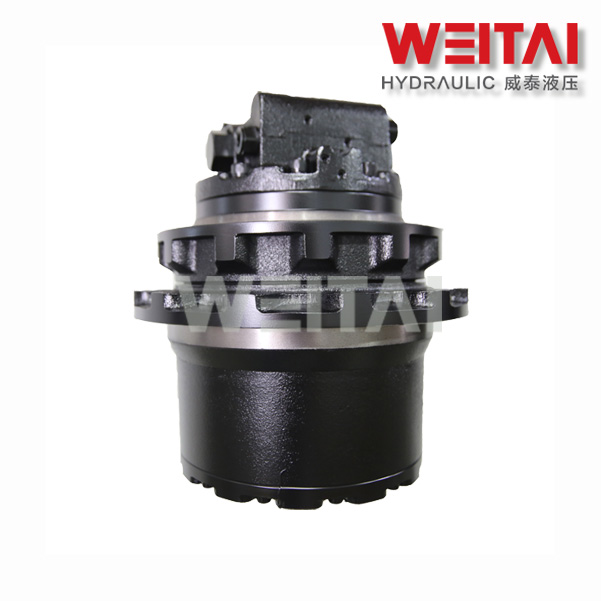

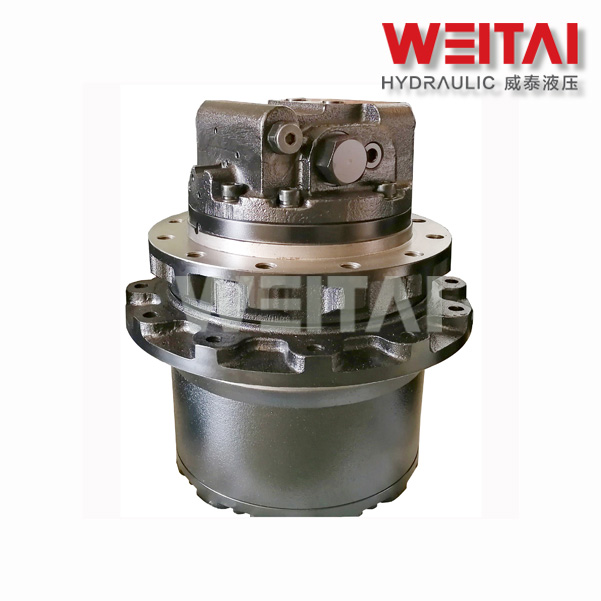

China Travel Motor MAG-50VP-900 Supplier, Suppliers

Model No.: MAG-50VP-900
7-9 ton Mini Excavator Final Drive.
OEM quality with One Year warranty.
Quickly delivery within 3 days (standard models).
Interchangeable with TM09, PHV-5B, DM09, GM10VA and JMV047 Travel Motors.

Send Inquiry

Product Description

▶ Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
MAG-50VP-900	30 MPa	9000 N.m	90 rpm	2-speed	4 ports	7-9 Ton Excavator

i Brief Introduction

MAG-50VP-900 Travel Motor is a medium-high torque motor for medium-slow speed crawler vehicle traveling. Combination of a case-rotation type simple planetary speed reducer and a swash plate motor, two-speed switching, and installation of parking brake are possible.

✔ Summary

MAG series Hydraulic Final Drive Motor is with the similar dimensions with most of the famous brands in market such as Nachi Travel Motor, KYB Travel Motor, Eaton Track Drive, and other Final Drives. So it widely used in the OEM and aftersales market to replace Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, Tong Myung and other Hydraulic Final Drive Motors.

Final Drives can be widely used for Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion Excavators.

We are making the OEM Piston Motor of MAG-12V-120, MAG-18V-230, MAG-18V-350, MAG-26V-400, MAG-33V-650, MAG-50VP-900, MAG-85VP-1800, MAG-85VP-2400, MAG-170VP-3800 and MAG-180VP-6000.

★ Key Features

High efficiency swash-plate Piston Motor with planetary reducer.

Double speed Motor with large ratio for widely usage.

Extremely compact volume and light weight.

Reliable quality and high durability.

Travels smoothly with very low noise.

Freewheel design is optional.

Automatic speed changing function is optional.

⚙ Specifications

Motor Displacement	34/53 cc/r
Working pressure	30 Mpa
2-Speed control pressure	2~7 Mpa
Ratio options	45.6
Max. torque of Gearbox	9000 N.m
Max. speed of Gearbox	51 rpm
Machine application	7~9 Ton

Note: Displacement and gear ratio can be made as required.

↔ Connection Dimensions

Frame flange orientation diameter	210mm
Frame flange bolt pattern	12-M16 Equally
Frame flange holes P.C.D.	250mm
Sprocket flange orientation diameter	265mm
Sprocket flange bolt pattern	12-M14 Equally
Sprocket flange holes P.C.D.	300mm
Flange distance	80mm
Approximate weight	90kg
