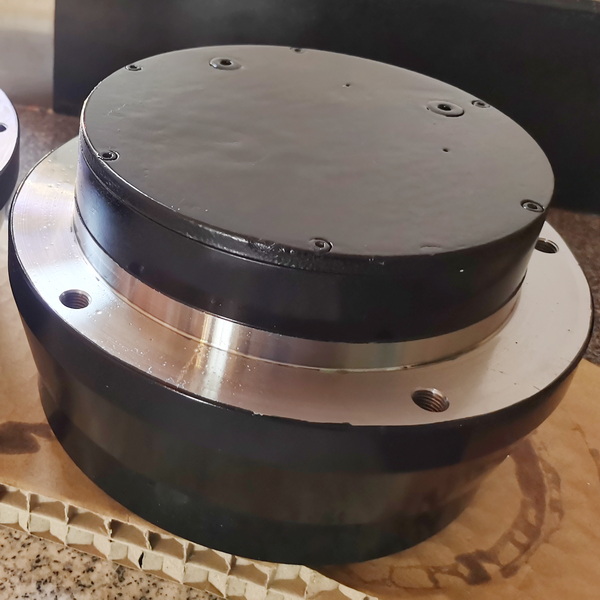

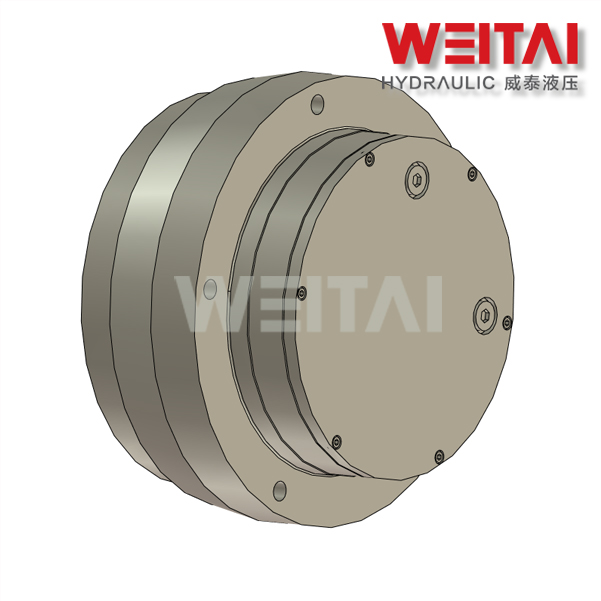

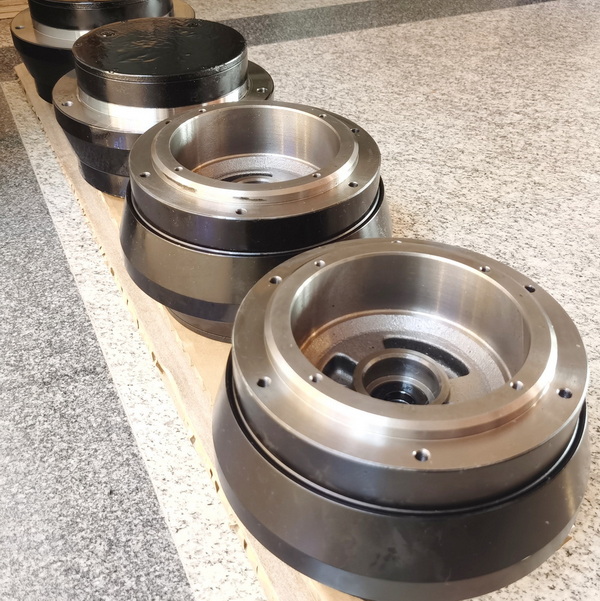

OEM Wheel Hub WH001 Planetary Reducer 1200 N.m Suppliers, Factories

Model No.: WH001 Planetary gearbox for Wheel Drive. Max. output 1200 N.m. Work with Electric Motors. OEM quality with One Year warranty.

Send Inquiry

Product Description

Technical Specifications

Model	Max Output Torque	Rated Output Torque	Max. Input Speed	Max. Output Speed	Ratio	Fit Motor
WH001	1200 N.m	500 N.m	3000 rpm	60 rpm	1:51	Electric

Key Features

High strength Gear and Hub for heavy application.
Integral spring applied hydraulic release braking system.
Flange & cartridge mount fit most of standard Hydraulic Motor.
Standard and custom mounting flanges, rim & stud patterns.
Integrated with Hydraulic releasing Brake.
Free Wheel function is optional.
Electric Motor connection is optional.

Brief Introduction

The WH001 series Wheel Hub is a high-performance planetary gearbox. The structure is specifically designed to work with standard Hydraulic Motors and Electric Motors. It is widely used in mobile machinery for wheel drive applications, providing reliable torque transmission and durability.

Connection Details

Frame orienting diameter	171.4mm
Frame flange bolt	8-M10
Frame flange P.C.D.	190.4mm
Sprocket orienting diameter	184mm
Sprocket flange bolt	5-M12
Sprocket flange P.C.D.	216mm
Flange distance	148mm
Approximate weight	20kg

Industry Summary

We are a professional manufacturer of Travel Motors and Wheel Motors. Our products meet OEM quality standards and are widely utilized by major machinery manufacturers, including: Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion, and other leading excavator brands.
