■ Brief Introduction

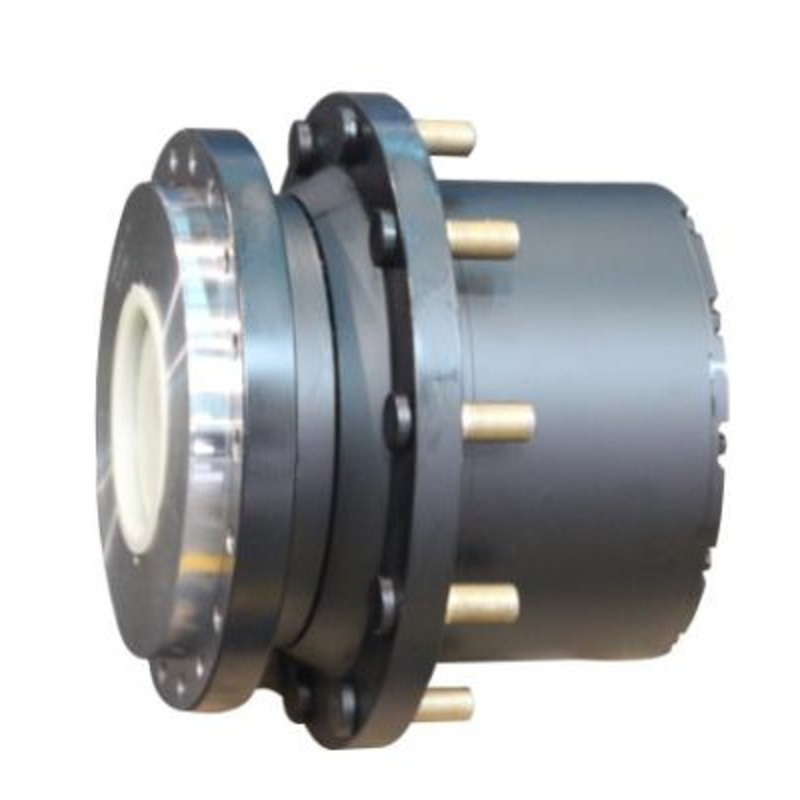

WH005 series Wheel Hub is a high-performance planetary gearbox. The structure is specifically designed to work seamlessly with standard Hydraulic Motors and Electric Motors. It is widely utilized in mobile machinery for efficient wheel drive applications.
■ Key Features
✔
High strength Gear and Hub for heavy application.
✔
Integral spring applied hydraulic release braking system.
✔
Flange & cartridge mount fit most of standard Hydraulic Motor.
✔
Standard and custom mounting flanges, rim & stud patterns.
✔
Integrated with Hydraulic releasing Brake.
✔
Free Wheel function and Electric Motor connection are optional.
| Model |
Max Output Torque |
Rated Output Torque |
Max. Input Speed |
Max. Output Speed |
Ratio |
Fit Motor |
| WH005 |
5000 N.m |
3000 N.m |
600 rpm |
80 rpm |
1:8 |
As required |
■ Connection Specifications
| Frame orienting diameter |
190mm |
| Frame flange bolt |
8-M16 |
| Frame flange P.C.D. |
225mm |
| Sprocket orienting diameter |
290mm |
| Sprocket flange bolt |
10-M16 |
| Sprocket flange P.C.D. |
330mm |
| Flange distance |
185mm |
| Approximate weight |
30kg |
■ Summary
Our Final Drive is a professional manufacture of Travel Motors and Wheel Motors. Our products are engineered with OEM quality and widely used by major machinery manufacturers globally, compatible with brands such as Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion, and other leading excavator brands.
? Frequently Asked Questions
Q1: What is the maximum output torque of the WH005 Wheel Hub?
A: The WH005 model provides a maximum output torque of 5000 N.m and a rated output torque of 3000 N.m.
Q2: Can this gearbox be used with electric motors?
A: Yes, the WH005 series is designed to work with both standard hydraulic motors and electric motors (optional).
Q3: Is the braking system included in the WH005 series?
A: Yes, it features an integral spring-applied hydraulic release braking system for enhanced safety.
Q4: What is the gear ratio for this planetary gearbox?
A: The standard gear ratio for the WH005 series is 1:8.
Q5: Can the mounting flanges be customized?
A: Yes, we offer both standard and custom mounting flanges, rim, and stud patterns to meet specific application needs.
Q6: What is the approximate weight of the WH005 unit?
A: The approximate weight of the WH005 Wheel Hub is 30kg.
