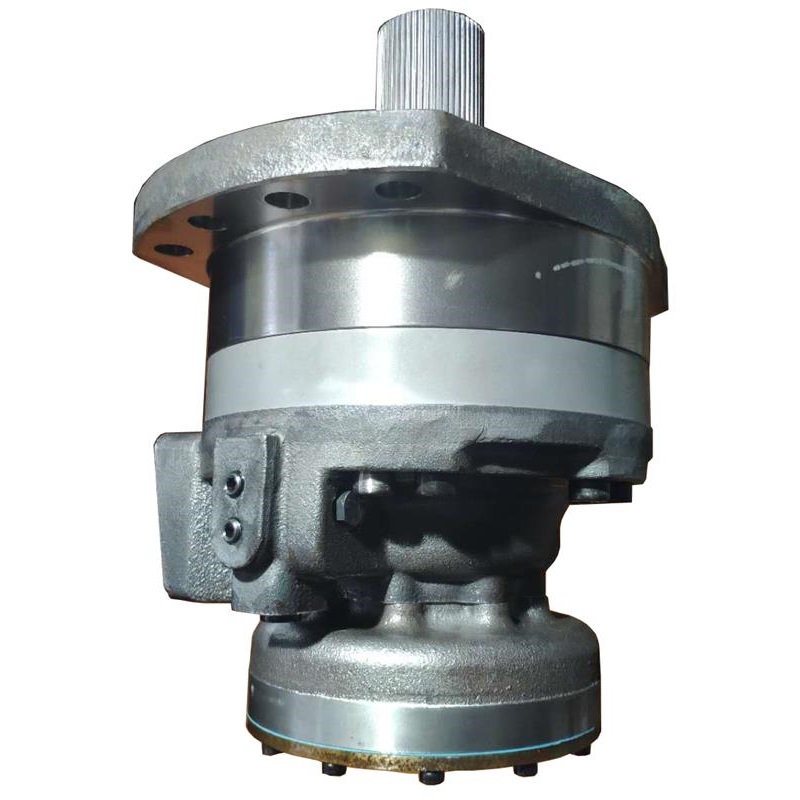

MCR10A series Radial Piston Motor is a shaft drive motor mainly used for Skid Steer Loader, Rotary Drill Rig, Mini Excavator, Compact Loader, Coal Mining Machine, Road Header, Scraper, and other similar machines. With various spline shaft mounted attachment, it can achieve many types of applications such as gear drive, sprocket, and chain drive.
✓ Completely interchangeable with Rexroth MCR10A series Piston Motor.
✓ Suitable for both open and closed loop circuits.
✓ Double speed and Bi-directional working capability.
✓ Compact structure and high operating efficiency.
✓ High reliability with low maintenance requirements.
✓ Equipped with parking brake and Free-wheel function.
✓ Optional Speed sensor and Flushing valve for closed circuits.
| Model |
MCR10A |
| Displacement (ml/r) |
780 |
860 |
940 |
1120 |
1250 |
1340 |
| Theo torque @ 10MPa (N.m) |
1240 |
1367 |
1494 |
1780 |
1987 |
2130 |
| Rated speed (r/min) |
125 |
100 |
100 |
100 |
80 |
80 |
| Rated pressure (Mpa) |
25 |
25 |
25 |
25 |
25 |
25 |
| Rated torque (N.m) |
2560 |
2820 |
3090 |
3680 |
4110 |
4400 |
| Max. pressure (Mpa) |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
| Max. torque (N.m) |
3160 |
3480 |
3810 |
4540 |
5060 |
5430 |
| Speed range (r/min) |
0-215 |
0-195 |
0-180 |
0-150 |
0-135 |
0-125 |
| Max. power (kW) |
44 |
44 |
44 |
50 |
50 |
50 |
✔
Advantages & Quality Control
In order to ensure the quality of our Hydraulic Motor, we adopt Full Automatic CNC Machining Centers to make our Hydraulic Motor Parts. The accuracy and uniformity of our Piston group, Stator, Rotor and other key parts are the same as Rexroth parts.
All our Hydraulic Motors are 100% inspected and tested after assembly. We also test the specifications, torque and efficiency of each motors before delivery.
We can also supply the inner parts of Rexroth MCR Motors and Poclain MS Motors. All our parts are completely interchangeable with your original Hydraulic Motors.
Frequently Asked Questions
What applications are MCR10A motors suitable for?
These motors are ideal for Skid Steer Loaders, Rotary Drill Rigs, Mini Excavators, Compact Loaders, Coal Mining Machines, Road Headers, and Scrapers.
Is the MCR10A motor compatible with other brands?
Yes, it is completely interchangeable with the Rexroth MCR10A series Radial Piston Motors.
Does the motor support both open and closed circuits?
Yes, the design allows it to be used efficiently in both open and closed loop hydraulic circuits.
What kind of quality testing do the motors undergo?
All motors undergo 100% inspection and testing after assembly, including verification of specifications, torque, and overall efficiency.
Can I get replacement parts for my existing Rexroth motor?
Yes, we provide inner parts that are fully interchangeable with Rexroth MCR and Poclain MS series motors.
What are the optional features available?
Optional features include speed sensors and flushing valves, which are particularly useful for closed circuit applications.
