Brief Introduction

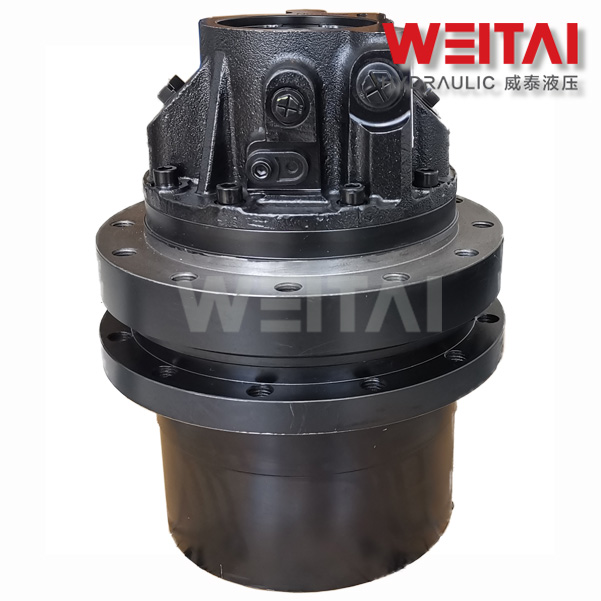

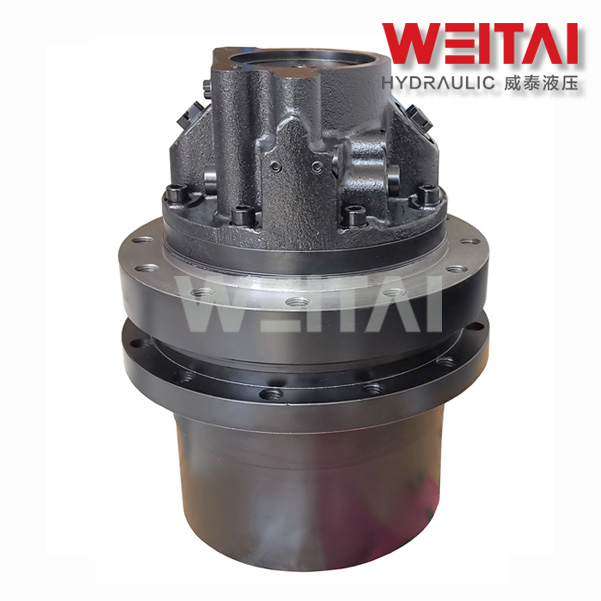

WBM-700CT series Track Drive is our new designed Final Drive which integrated with high efficiency hydraulic motor and high strength planetary gearbox. It is widely used for Skid Steer Loaders, Compact Track Loaders, Pavers, Dozers, Soil Compactors and other Crawler Equipment.
| Model |
Rated Working Pressure |
Max. Output Torque |
Max. Output Speed |
Speed Switching |
Oil Port |
Application |
| WBM-704CT |
27.5 MPa |
5000 N.m |
50 rpm |
2-speed |
5 ports |
3.5-5 Ton |
Key Features
✔Designed for closed hydraulic circuit.
✔Build-in flushing valve.
✔Axial Piston Motor with high efficiency.
✔Double speed Motor with large ration for widely usage.
✔Build-in parking brake for safety.
✔Extremely compact volume and light weight.
✔Reliable quality and high durability.
✔Travel smoothly with very low noisy.
✔Automatic speed changing function is optional.
Widely Applications
WBM Track Motors can be suitable for most of the Track Loaders in the market. Such as ASV, BOBCAT, BOXER, CASE, CATERPILLAR, JOHN DEERE, DITCH WITCH, EUROCOMACH, GEHL, IHI, JCB, KOMATSU, MANITOU, MUSTANG, NEW HOLLAND, TAKEUCHI, TEREX, TORO, VERMEER, VOLVO, WACKER NEUSON, YANMAR and other main brand Compact Loaders.
Summary
WBM-700 series Track Drive is our new designed Travel Motor for closed loop applications. It is mainly used in Skid Steer Loaders and Compact Track Loaders. These Final Drives are with the same specifications and connecting dimensions with Bonfiglioli 700 series Track Drives. We are also making the Track Drives which are interchangeable with the main brands such as Sauer-Danfoss BMVT, Nabtesco TH-VB, DANA CTL Spicer Torque-hub, etc. We can also design the Motor size and connection as your OEM Final Drives.
Frequently Asked Questions
Q1: Which machines are WBM-700CT series Track Drives designed for?
They are specifically designed for Skid Steer Loaders, Compact Track Loaders, Pavers, Dozers, Soil Compactors, and other crawler equipment requiring a high-efficiency final drive.
Q2: Are these track drives compatible with major equipment brands?
Yes, they are compatible with main brands including Bobcat, Caterpillar, John Deere, CASE, JCB, Kubota, and many others.
Q3: Can the WBM-700 series replace Bonfiglioli or Sauer-Danfoss drives?
Absolutely. These drives share the same specifications and connection dimensions as Bonfiglioli 700 series and are interchangeable with Sauer-Danfoss BMVT and Nabtesco TH-VB models.
Q4: Does the motor support different speed modes?
Yes, the WBM-704CT features a 2-speed axial piston motor, allowing for versatile operation across different terrains and load requirements.
Q5: Is it possible to customize the flange hole patterns?
Yes, both frame and sprocket flange hole patterns can be customized to meet your specific OEM mounting requirements.
Q6: What safety features are included in the drive?
The drive includes a high-strength planetary gearbox and a built-in parking brake to ensure safe operation and reliable stopping power.
