OEM PMCI 1000 Travel Drive Manufacturers, Suppliers

1 / 3

OEM PMCI 1000 Travel Drive Manufacturers, Suppliers

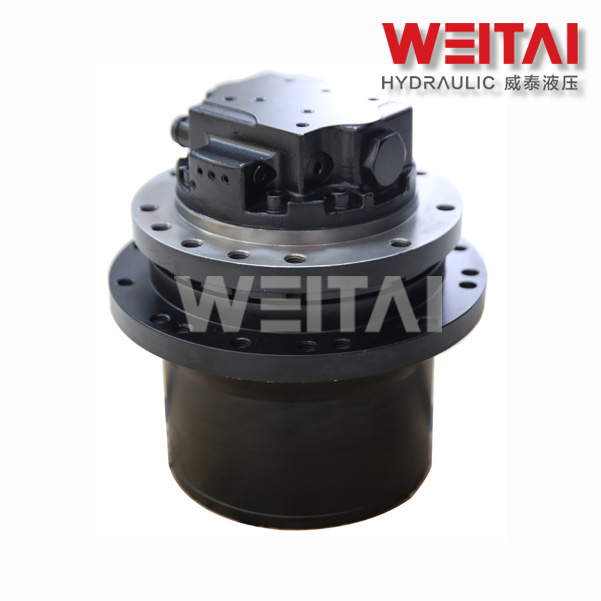

Model No.: PMCI 1000 5-7 ton Excavator Travel Motor. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with PMP Industries PMCI 1000 Integrated Travel Drive.

Send Inquiry

Product Description

◈ Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
PMCI 1000	27.5 MPa	10500 N.m	50 rpm	2-speed	4 ports	5-7 Ton

◈ Key Features

Swash-plate Axial Piston Motor with high efficiency.
Double speed Motor with large ration for widely usage.
Build-in parking brake for safety.
Extremely compact volume and light weight.
Reliable quality and high durability.
Travel smoothly with very low noisy.
Optional Free-wheel device.
Automatic speed changing function is optional.

◈ Brief Introduction

PMCI 1000 Integrated Travel Drive is consisted of Swash-plate Piston Motor integrated with planetary reducer gearbox. It is widely used for track driving hydraulic Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.

◈ Specifications

Motor Displacement	22/44 cc/r
Working pressure	27.5 Mpa
Speed control pressure	2~7 Mpa
Ratio options	55.3
Max. torque of Gearbox	10500 N.m
Max. speed of Gearbox	50 rpm
Machine application	5~7 Ton

◈ Connection

Frame connection diameter	210mm
Frame flange bolt	12-M14
Frame flange P.C.D.	244mm
Sprocket connection diameter	230mm
Sprocket flange bolt	12-M14
Sprocket flange P.C.D.	260mm
Flange distance	75mm
Approximate weigth	75kg

◈ Summary

PMCI 1000 is the ideal replacement for PMP Industries PMCI 1000 Travel Drive. It is a Motor with high efficiency and large strength. High performance OEM Final Drives are manufactured for mobile machinery by professional experts with decades of experience. These Final Drives are supplied to main top excavator brands, offering the best Track Motor resource available in the market.
