China Swing Motor WSM-64 Manufacturers, Factories

● Model No.: WSM-64 ● Swing Motor for 9~12 Ton Excavator. ●Interchangeable with JMF064 Swing Device. ● OEM quality with onen full year warranty. ● Quickly delivery in 3-5 days.

Send Inquiry

Product Description

Brief Introduction

WSM Swing Motor is an axial piston motor and planetary gearbox combination for Swing application. There are built-in parking brake, relief valve and anti-reverse valve for safety operation. It is widely used as a Swing Drive for hydraulic excavators.

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Application
WSM-64	25 MPa	4800 N.m	105 rpm	9.0-12.0 Ton

Our Advantage

More than 30 years in Fluid Power industry.
Improved structure based on famous brands.
OEM Motor supplier in China domestic machinery manufactures.
Parts are precisionly machined Automatic Producing Line.
Real testing for every motors before packing.
One full year warranty.
Professional international service team to help you.

Features

Compact design with small volume.
High efficiency Piston Motor.
Precision inside gear parts.
Smooth transmission and low noise.
Excellent performance and long durability.
Integrated with Relief Valve.
Parking brake inside.
With Conterbalance Valve.
Customised flange pattern as required.
Specifications and Dimensions are the same as Eaton JMF Slew Drive.

Specifications

Model

WSM-64

Input Flow

128 L/min

Displacement

60 ml/r

Max Working Pressure

25 MPa

Gear Ratio

Theoretical Output Torque

4800 N.m

Theoretical Output Speed

105 r/min

Weight

120 kg

Application

9~12 Ton

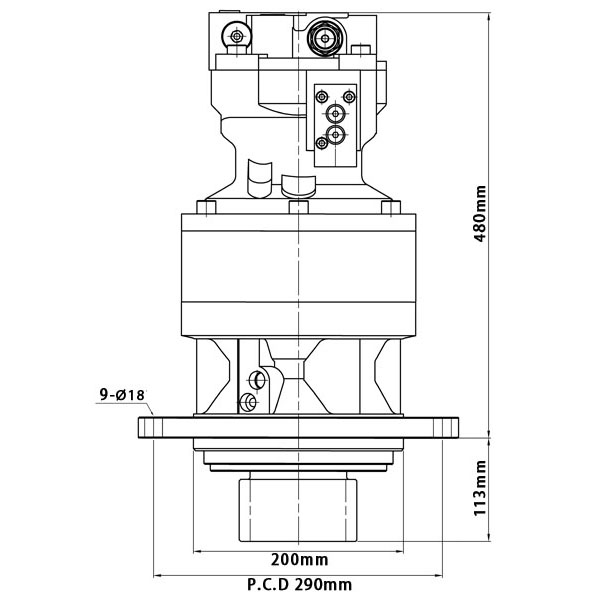

Dimensions

Frequently Asked Questions

What components are integrated into the WSM Swing Motor?

The WSM Swing Motor is a combination of an axial piston motor and a planetary gearbox. It includes a built-in parking brake, relief valve, and anti-reverse valve for safe operation.

Which excavator sizes is the WSM-64 model suitable for?

The WSM-64 model is specifically designed for hydraulic excavators ranging from 9.0 to 12.0 tons.

Is the WSM Swing Motor compatible with other brands?

Yes, the specifications and dimensions of the WSM Swing Motor are designed to be equivalent to the Eaton JMF Slew Drive.

What safety features are included in the motor?

It features an integrated relief valve, an internal parking brake, and a counterbalance valve to ensure smooth and safe swing operations.

What is the warranty period for this swing motor?

Every WSM Swing Motor comes with a one full year warranty, backed by over 30 years of industry experience and professional testing before packing.

Can the mounting flange be customized?

Yes, we can provide customized flange patterns to meet specific installation requirements as needed by the customer.
