OEM MS18 Wheel Drive Motor Manufacturer, Suppliers

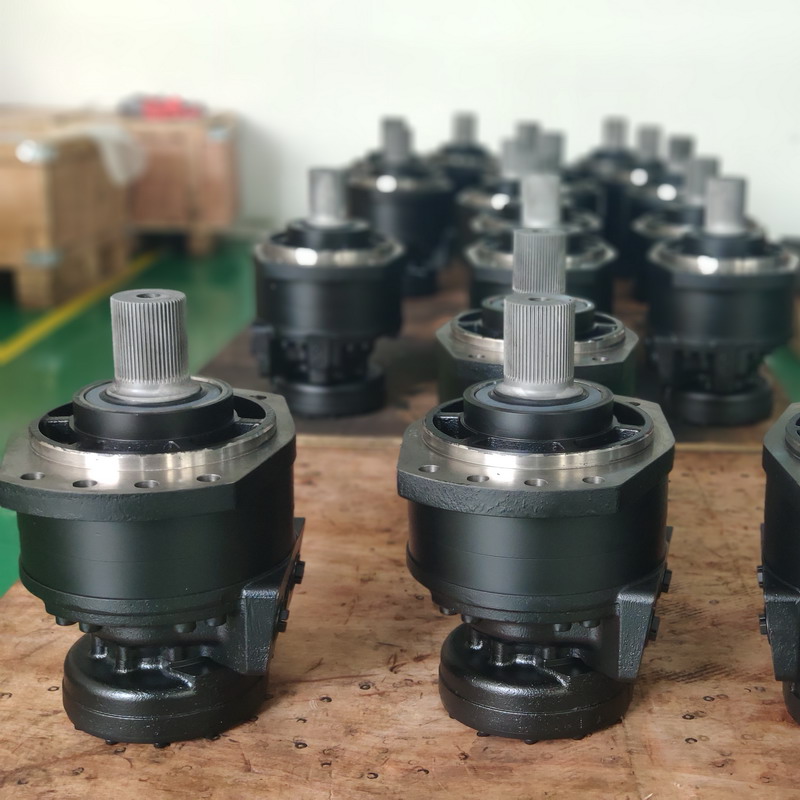

Model: MS18-MSE18 series Displacement from 1091~2812cc/r. Widely used for wheel drive machinery. Perfectly replacement of Poclain MS and MSE series Multipurpose Hydraulic Motors.

Send Inquiry

Product Description

1 Brief Introduction

MS and MSE series Multipurpose Hydraulic Motor is an optimized and modular design Radial Piston Motor. Various connection types and output options such as Wheel flange, Splined shaft, and Keyed shaft are available for different usages. It is an ideal drive motor mainly used for agricultural machinery, municipal vehicles, forklift trucks, forestry machinery, and other similar machines.

2 Key Features

High displacement Radial piston for high speed and big torque drive.

Compact structure and High efficiency.

Can be used in both open and closed loop circuits.

High reliability and low maintenance.

Inside Parking brake and Free-wheel function.

Optional Speed sensor for digital control.

Optional Flushing valve for closed circuits.

Completely interchangeable with Poclain MS and MSE series Multipurpose Motors.

3 Specifications

Model	MS18						MSE18
Displacement (ml/r)	1091	1395	1571	1747	1911	2099	2340	2560	2812
Theo torque @ 10MPa (N.m)	1735	2218	2498	2778	3038	3337	3721	4070	4471
Rated speed (r/min)	100	100	100	80	80	80	63	63	50
Rated pressure (Mpa)	25	25	25	25	25	25	25	25	25
Rated torque (N.m)	3580	4550	5150	5700	6250	6900	7650	8400	9200
Max. pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5
Max. torque (N.m)	4420	5650	6350	7050	7700	8500	9450	10350	11400
Speed range (r/min)	0-170	0-155	0-140	0-125	0-115	0-100	0-90	0-85	0-75
Max. power (kW)	Standard disp. 70kW; Variable disp. Priority rotation 47kW; Non priority rotation 35kW.

4 Our Advantages

All MS and MSE Motors we produce share the same specifications and connecting dimensions as the original Poclain Motors. To ensure superior quality, we utilize Full Automatic CNC Machining Centers for manufacturing parts. The accuracy and uniformity of our Piston groups, Stators, Rotors, and other key components are maintained to the highest industry standards, comparable to Rexroth parts.

Every Hydraulic Motor undergoes 100% inspection and testing after assembly. We verify the specifications, torque, and efficiency of each motor before delivery to guarantee that every unit you receive meets performance expectations. Furthermore, we provide inner parts that are completely interchangeable with original motors.

Frequently Asked Questions

What are the main applications for MS and MSE series motors?

These motors are ideal for agricultural machinery, municipal vehicles, forklift trucks, and forestry equipment due to their high torque and radial piston design.

Are these motors interchangeable with Poclain series?

Yes, our MS and MSE series motors are designed to be completely interchangeable with original Poclain MS and MSE series motors in terms of specifications and mounting dimensions.

Can these motors operate in a closed-loop circuit?

Absolutely. These hydraulic motors are versatile and can be used in both open and closed-loop hydraulic circuits.

What kind of output shaft options are available?

We offer multiple modular options including Wheel flanges, Splined shafts, and Keyed shafts to suit different mechanical requirements.

How do you ensure the quality of the hydraulic motors?

We use full automatic CNC machining for all parts and conduct a 100% inspection and performance test on every motor after assembly to ensure high efficiency and reliability.

Is it possible to purchase internal spare parts separately?

Yes, we supply all inner parts for MS and MSE motors, and they are fully interchangeable with your existing original hydraulic motors.
