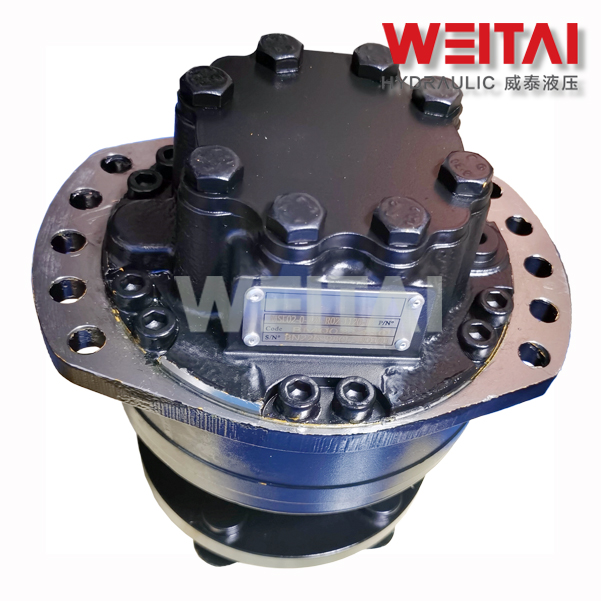

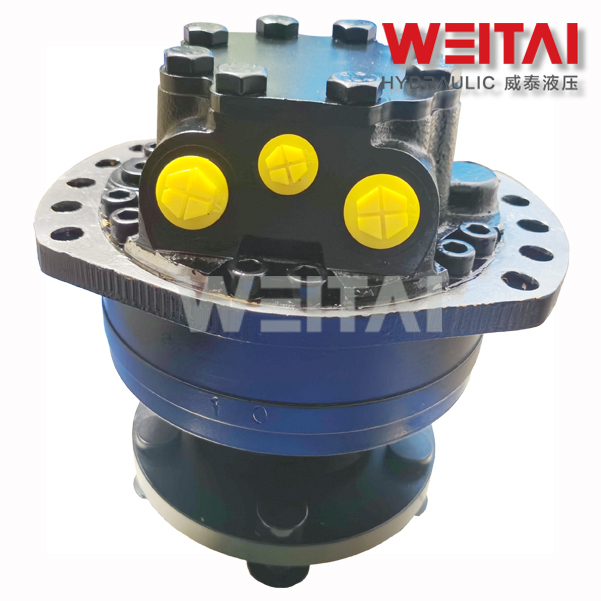

MS and MSE series Multipurpose Hydraulic Motor is an optimized and modular design Radial Piston Motor. Various connection type and output options such as Wheel flange, Splined shaft, Keyed shaft for different usages. It is an ideal drive motor mainly used for agricultural machinery, municipal vehicles, forklift trucks, forestry machinery, and other similar machines.
High displacement Radial piston for high speed and big torque drive.
Compact structure and High efficiency.
Compatible with both open and closed loop circuits.
High reliability and low maintenance requirements.
Integrated Parking brake and Free-wheel function.
Optional Speed sensor for advanced digital control.
Optional Flushing valve for closed circuit applications.
Completely interchangeable with Poclain MS and MSE series motors.
| Model |
MS05 |
MSE05 |
| Displacement (ml/r) |
260 | 376 | 468 | 514 | 560 |
503 | 625 | 688 | 750 | 820 |
| Theo torque @ 10MPa (N.m) |
413 | 598 | 744 | 817 | 890 |
800 | 994 | 1094 | 1193 | 1304 |
| Rated speed (r/min) |
160 | 160 | 125 | 125 | 125 |
100 | 100 | 100 | 80 | 80 |
| Rated pressure (Mpa) |
25 | 25 | 25 | 25 | 25 |
25 | 25 | 25 | 25 | 25 |
| Rated torque (N.m) |
850 | 1200 | 1500 | 1650 | 1800 |
1650 | 2050 | 2250 | 2450 | 2650 |
| Max. pressure (Mpa) |
31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max. torque (N.m) |
1050 | 1500 | 1850 | 2050 | 2250 |
2030 | 2500 | 2750 | 3000 | 3300 |
| Speed range (r/min) |
0-265 | 0-250 | 0-240 | 0-220 | 0-200 |
0-200 | 0-190 | 0-175 | 0-160 | 0-140 |
| Max. power (kW) |
Standard disp. 29kW; Variable disp. Priority rotation 19kW; Non priority rotation 15kW. |

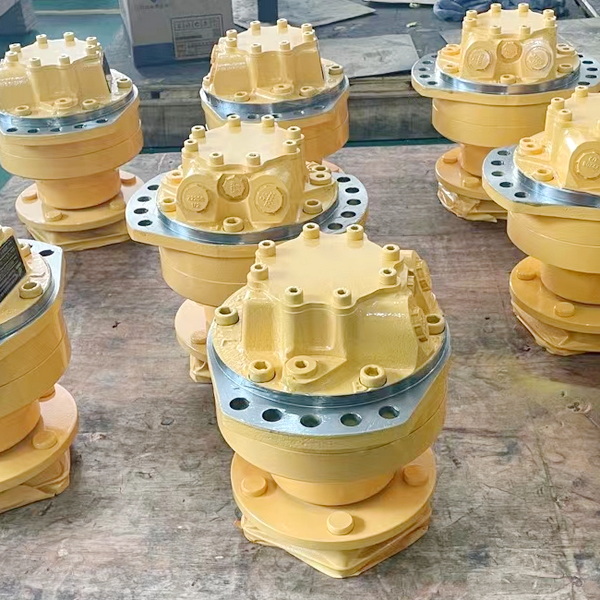

All MS and MSE Motors are manufactured with the same specifications and connecting dimensions as original Poclain Motors. To ensure superior quality, we utilize Full Automatic CNC Machining Centers for production. The accuracy and uniformity of critical components—including the Piston group, Stator, and Rotor—are maintained at the highest industry standards.
Every Hydraulic Motor undergoes 100% inspection and testing post-assembly. We rigorously verify specifications, torque, and efficiency before delivery to guarantee that every motor received meets performance expectations.
Inner parts for MS and MSE series are also available and are completely interchangeable with original equipment, providing a cost-effective solution for maintenance and repair.
Frequently Asked Questions
Are these motors fully interchangeable with Poclain models?
Yes, the MS and MSE series are designed with the exact same specifications and mounting dimensions, making them 100% interchangeable with Poclain MS and MSE series motors.
What types of machinery are these motors suitable for?
These multipurpose hydraulic motors are ideal for agricultural machinery, municipal vehicles, forklift trucks, forestry equipment, and various heavy-duty industrial machines.
Can these motors be used in closed-loop systems?
Yes, they are designed to operate efficiently in both open and closed loop hydraulic circuits. An optional flushing valve is available specifically for closed circuit use.
What safety features are integrated into the motor?
The motors feature an internal parking brake and a free-wheel function, ensuring safety and versatility during operation and transport.
How do you ensure the quality of each motor?
We use full automatic CNC machining for high precision. Furthermore, 100% of motors are inspected and tested for torque, speed, and efficiency before they leave our facility.
Are replacement parts available for maintenance?
Yes, we provide a full range of internal parts for MS and MSE motors that are completely interchangeable with your original hydraulic equipment.
