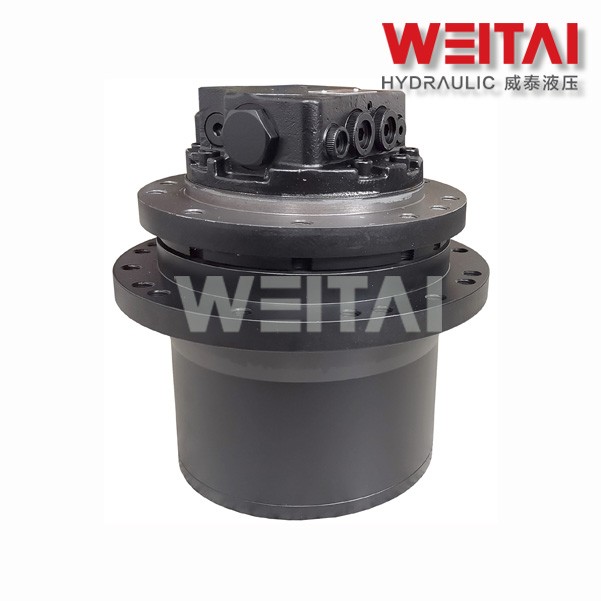

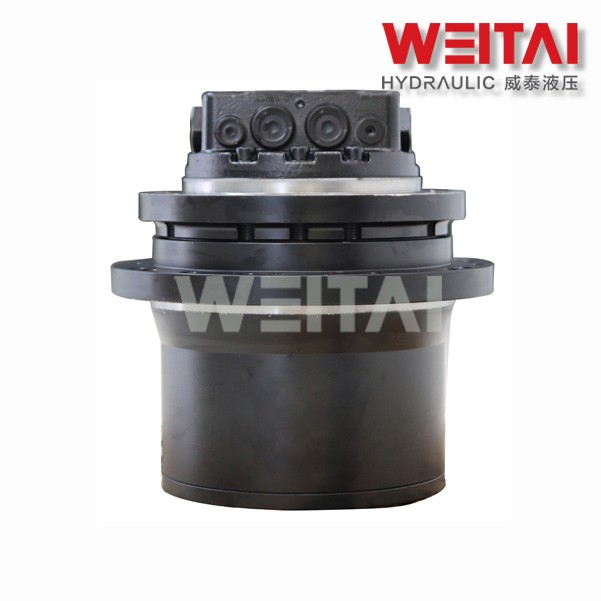

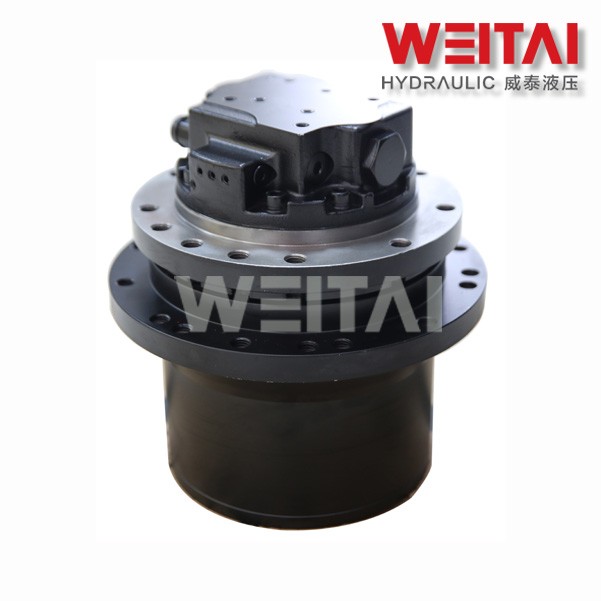

OEM Final Drive Motor WTM-07N Factory, Factories

Model No.: WTM-07N

6-8 ton Mini Excavator Final Drive.

Small ratio with very high traveling speed.

OEM quality with One Year warranty.

Quickly delivery within 3 days (standard models).

Send Inquiry

Product Description

Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
WTM-07N	30 MPa	5260 N.m	113 rpm	2-speed	4 ports	6-8 Ton

Brief Introduction

WTM-07N Final Drive is consisted of two-speed Swash-plate Piston Motor integrated with high strength planetary gearbox. It has a small ratio and with high output speed. Widely used in Agricultural machinery and other Crawler Equipment which require a high traveling speed.

Key Features

● Swash-plate Axial Piston Motor with high efficiency.

● Double speed Motor with large ration for widely usage.

● High speed to 113rpm for fast traveling.

● High working pressure up to 300 bar.

● Build-in parking brake for safety.

● Extremely compact volume and light weight.

● Reliable quality and high durability.

● Travel smoothly with very low noisy.

● Optional Free-wheel device and Automatic speed changing.

Specifications

Model	WTM-07N
Motor Displacement	34/53 cc/r
Working pressure	30 Mpa
Speed control pressure	2~7 Mpa
Ratio options	20.8
Max. torque of Gearbox	5260 N.m
Max. speed of Gearbox	113 rpm
Machine application	6~8 Ton

Connection Details

Model	WTM-07N
Frame connection diameter	210mm
Frame flange bolt	12-M14
Frame flange P.C.D.	244mm
Sprocket connection diameter	250mm
Sprocket flange bolt	12-M14
Sprocket flange P.C.D.	282mm
Flange distance	68mm
Approximate weight	75kg

Summary & Compatibility

WTM series Hydraulic Final Drive Motor features similar dimensions to most famous brands in the market such as Nachi, KYB, Eaton, and others. It is widely used in both OEM and aftersales markets to replace brands like Kayaba, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, and Tong Myung.

WTM Travel Motors are suitable for a vast range of crawler machinery including Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, New Holland, Nissan, Pel Job, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, and Zoomlion.

Frequently Asked Questions

Q: What type of machinery is the WTM-07N best suited for?

A: It is specifically designed for 6-8 ton crawler equipment and agricultural machinery that require high traveling speeds.

Q: Is the WTM-07N a single or double speed motor?

A: It is a 2-speed Swash-plate Piston Motor, allowing for versatile operation across different terrains.

Q: What is the maximum output torque and speed?

A: The WTM-07N offers a maximum output torque of 5260 N.m and a maximum output speed of 113 rpm.

Q: Can this motor replace other major brands?

A: Yes, it is designed with compatible dimensions to replace motors from Nachi, KYB, Eaton, Rexroth, and many other leading manufacturers.

Q: Does it include a braking system?

A: Yes, it features a built-in parking brake for enhanced safety during operation.

Q: What is the maximum working pressure?
