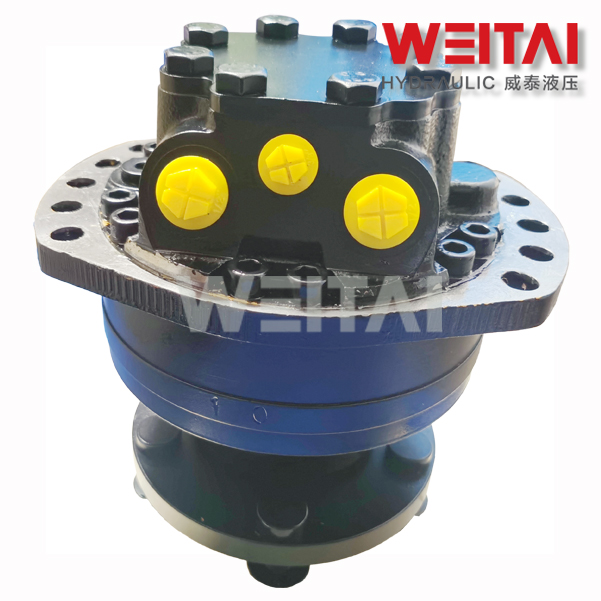

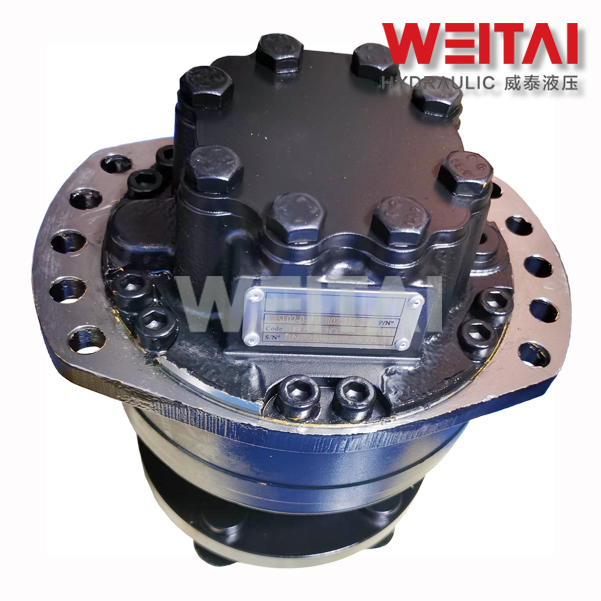

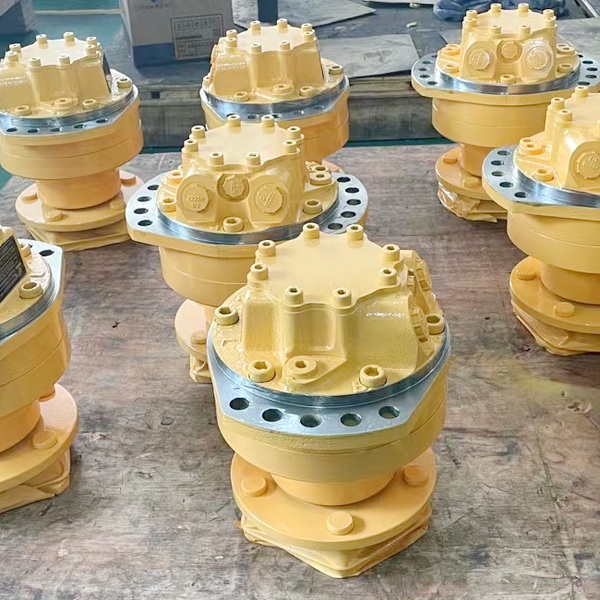

OEM MS02 Wheel Drive Motor Supplier, Factories

Model: MS02-MSE02 series Displacement from 172~398cc/r. For open or closed loop system. Widely used for wheel drive machinery. Perfectly replacement of Poclain MS and MSE series Multipurpose Hydraulic Motors.

Send Inquiry

Product Description

Brief Introduction

MS and MSE series Multipurpose Hydraulic Motor is an optimized and modular design Radial Piston Motor. Various connection type and output options such as Wheel flange, Splined shaft, Keyed shaft for different usages. It is an ideal drive motor mainly used for agricultural machinery, municipal vehicles, forklift trucks, forestry machinery, and other similar machines.

Key Features

High displacement Radial piston for high speed and big torque drive.

Compact structure and High efficiency.

Suitable for both open and closed loop circuits.

High reliability and low maintenance requirements.

Includes Inside Parking brake and Free-wheel function.

Optional Speed sensor for advanced digital control.

Optional Flushing valve for closed circuit systems.

Completely interchangeable with Poclain MS and MSE series.

Specifications

Model	MS02				MSE02
Displacement (ml/r)	172	213	235	255	332	364	398
Theo torque @ 10MPa (N.m)	273	339	374	405	528	579	633
Rated speed (r/min)	200	200	160	160	160	125	100
Rated pressure (Mpa)	25	25	25	25	25	25	25
Rated torque (N.m)	550	700	750	800	1100	1150	1300
Max. pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5
Max. torque (N.m)	650	850	950	1000	1300	1450	1600
Speed range (r/min)	0-390	0-310	0-285	0-260	0-200	0-182	0-165
Max. power (kW)	18kW				22kW

Advantage

All MS and MSE Motors are manufactured with the exact same specifications and connecting dimensions as original Poclain Motors. To ensure superior quality, Full Automatic CNC Machining Centers are utilized for the production of all parts. The accuracy and uniformity of the Piston group, Stator, Rotor, and other key components reach the highest industry standards.

Every Hydraulic Motor undergoes 100% inspection and testing after assembly. Specifications, torque, and efficiency are verified for each individual unit before delivery to ensure guaranteed performance upon arrival.

Additionally, internal parts for MS and MSE Motors are available, which are completely interchangeable with original Hydraulic Motors.

Frequently Asked Questions

Are these motors interchangeable with Poclain MS/MSE series?

Yes, our MS and MSE series motors are designed with the same specifications and connecting dimensions, making them completely interchangeable with original Poclain series motors.

What applications are these hydraulic motors suitable for?

They are ideal for a wide range of machinery, including agricultural equipment, municipal vehicles, forklift trucks, and forestry machinery.

Do the motors support both open and closed loop circuits?

Yes, the modular design allows these radial piston motors to be used efficiently in both open and closed loop hydraulic circuits.

How do you ensure the quality of each motor?

We use Full Automatic CNC Machining Centers for part production. Furthermore, 100% of our motors are inspected and tested for torque, speed, and efficiency before they are shipped.

Are spare parts available for the MS and MSE series?

Yes, we supply inner parts that are fully compatible and interchangeable with the original MS and MSE series hydraulic motors.

Does the motor include a braking function?

Yes, these motors come with an inside parking brake and a free-wheel function as part of their robust design features.
