China Swing Motor MSG-27B-16A Manufacturers, Factory

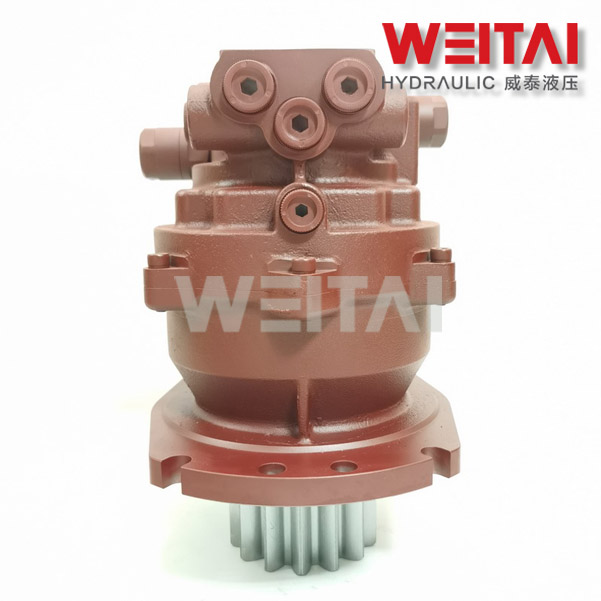

Model No.: MSG-27B-16A Swing Motor for 2-3.5 ton Mini Excavator. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with Kayaba MSG-27P-16E Swing Motor.

Send Inquiry

Product Description

Brief Introduction

The MSG series Swing Motor is a combination of a shaft-rotation type simple planetary speed reducer and a swash plate motor. It is ideal for swinging motors for excavators and mini excavators. An inside relief valve and parking brake is standard option.

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Application
MSG-27B-16A	21 MPa	1270 N.m	100 rpm	2.0-3.5 Ton

Key Features

✔ The Swing Motor is compact design with small volume.

✔ High efficiency Piston Motor.

✔ Precision inside gear parts.

✔ Smooth transmission and low noise.

✔ Excellent performance and long durability.

✔ Integrated with Relief Valve.

✔ Parking brake inside.

✔ With Counterbalance Valve.

✔ Customised flange pattern as required.

✔ Interchangeable with Kayaba MSG-27P-16E Slew Motor.

Specifications

Model:	MSG-27B-16A
Max. Input Flow:	14L/min
Motor Displacement:	23.6cc/r
Max. Working Pressure:	21.5MPa
Gear Ratio:	16
Max. Output Torque:	1270N.m
Max. Output Speed:	80rpm
Control Oil pressure:	2~7MPa
Machine Application:	~3.5Ton

Our Advantages

The dimensions are the same as Kayaba MSG-27P-16E Swing Motor.

01. Many years in Fluid Power industry.

02. Improved structure based on famous brands.

03. OEM Motor supplier for domestic machinery manufactures.

04. Parts are precisely machined on Automatic Producing Lines.

05. Real testing for every motor before packing.

06. One full year warranty.

07. Professional international service team.

Frequently Asked Questions

What machines are the MSG series Swing Motors suitable for?

The MSG series is specifically designed for excavators and mini excavators, particularly those in the 2.0 to 3.5-ton range.

Is the MSG-27B-16A compatible with Kayaba models?

Yes, this swing motor is fully interchangeable with the Kayaba MSG-27P-16E Slew Motor, featuring the same dimensions and performance specifications.

Does the motor include built-in safety features?

Yes, an internal relief valve and a parking brake are included as standard options to ensure safe and reliable operation.

What kind of warranty is provided?

We offer a one full year warranty on all our motors, reflecting our confidence in their long-term durability and performance.

How is the quality of the swing motors controlled?

Every motor undergoes real-world testing before being packed. Additionally, all parts are precision-machined on automatic production lines to maintain high consistency.

Can the flange pattern be customized?

Yes, we can provide customized flange patterns to meet specific requirements for different machinery designs.
