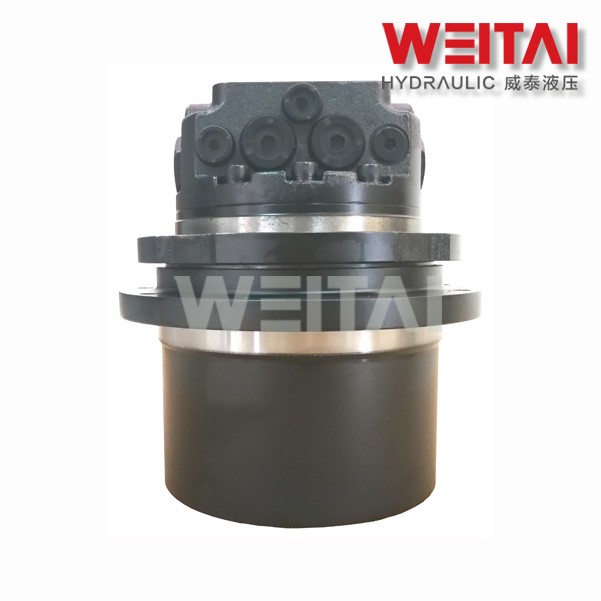

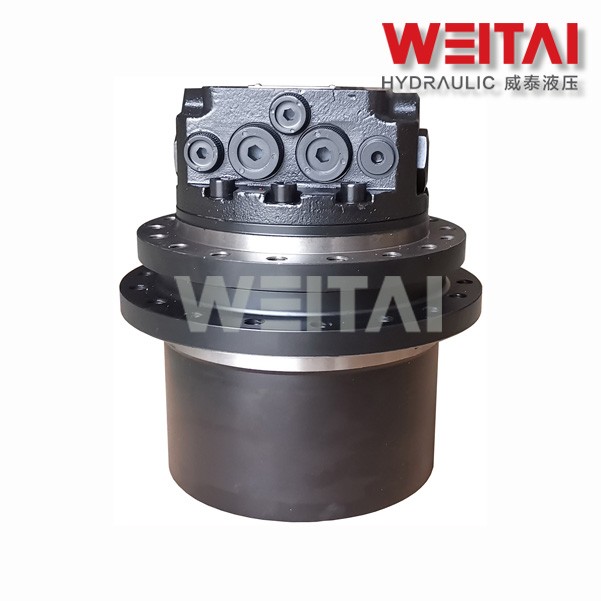

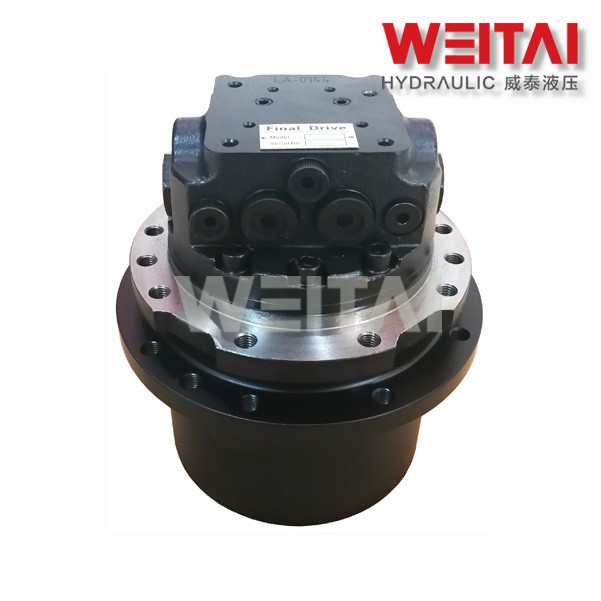

China Final Drive PHV-2B Manufacturer, Manufacturers
Model No.: PHV-2B
1.5-2.5 ton Mini Excavator Travel Motor.
OEM quality with One Year warranty.
Quickly delivery within 3 days (standard models).
Interchangeable with PHV-2B, MAG-18V-230, JMV016, 700-2C2K Travel Motors.
PHV-2B Final Drive consists of a high-efficiency Swash-plate Piston Motor integrated with a high-strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.
Key Features
All-in-One Design
All required components for the track drive motor are in one unit, including the planetary gearbox, hydraulic motor, negative type parking brake, shockless relief valve, and anti-cavitation check valve.
High Reliability
All main parts, including special-made angular ball bearings in the gearbox, are manufactured and tested under strict standards to ensure long-term durability.
High Efficiency
The axial piston motor maintains excellent efficiency at high pressure ranges, reducing engine stall and enabling superior machine maneuverability.
Optional Functions
Features include an optional Auto Kick Down for automatic speed changes without a selector switch, and a standard 2-Speed Function.
Connection Specifications
The PHV-2B Final Drive is fully interchangeable in terms of displacement, torque, and speed.
Model
PHV-2B
Frame connection diameter
150mm
Frame flange bolt
12-M10
Frame flange P.C.D.
170mm
Sprocket connection diameter
160mm
Sprocket flange bolt
12-M10
Sprocket flange P.C.D.
180mm
Flange distance
40mm
Approximate weight
28kg (60lbs)
* Flange hole patterns can be customized as required.
Summary
As a reliable OEM Travel Motor supplier, the manufacturing facility features high-standard intelligent automatic machining. All key parts are produced by precision CNC machining centers. A dust-free assembly workshop protects core components from pollution, while a high-accuracy inspection laboratory ensures every assembly is qualified. 100% testing and trial runs are performed before delivery.
Available models include the full series: PHV-1B, PHV-2B, PHV-3B, PHV-4B, PHV-4B-70D, PHV-5B, and other interchangeable models.
Frequently Asked Questions
What applications is the PHV-2B Final Drive suitable for?
The PHV-2B is designed for mini excavators (1.5-2.5 Ton), drilling rigs, mining equipment, and various crawler-based machinery.
Is the PHV-2B Final Drive interchangeable with other brands?
Yes, it is designed to be fully interchangeable with standard PHV-2B models in terms of displacement, torque, and installation dimensions.
What is included in the "All-in-One" design?
The unit integrates the planetary gearbox, hydraulic motor, negative type parking brake, shockless relief valve, and anti-cavitation check valve into a single compact component.
Can the flange connection patterns be modified?
Yes, flange hole patterns can be customized and manufactured according to your specific equipment requirements.
Does this motor support two-speed operation?
Yes, the PHV-2B includes a 2-speed function, and an optional auto kick-down feature is available for automatic speed adjustment.
How is the quality of the travel motor ensured?
Every motor undergoes 100% testing and a trail-run in a high-accuracy laboratory. All core parts are processed via CNC machining in dust-free environments.
