⬧ Brief Introduction

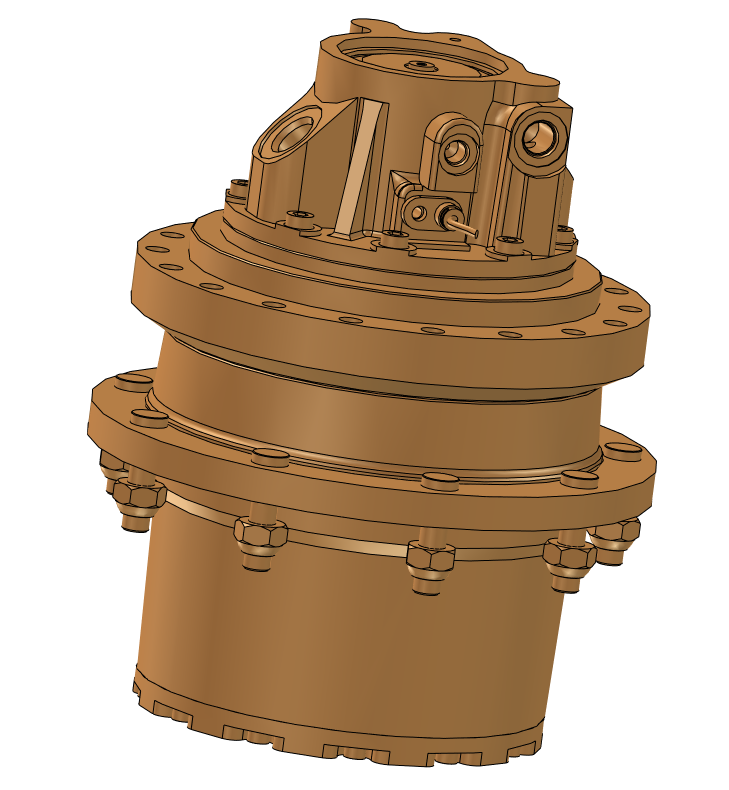

WBM-700CT series Track Drive is our new designed Final Drive which integrated with high efficiency hydraulic motor and high strength planetary gearbox. It is widely used for Skid Steer Loaders, Compact Track Loaders, Pavers, Dozers, Soil Compactors and other Crawler Equipment.
| Model |
Rated Working Pressure |
Max. Output Torque |
Max. Output Speed |
Speed Switching |
Oil Port |
Application |
| WBM-707TD |
30 MPa |
7300 N.m |
80 rpm |
2-speed |
5 ports |
5-7 Ton |
⬧ Key Features
✓ Designed for closed hydraulic circuit.
✓ Build-in flushing valve.
✓ Axial Piston Motor with high efficiency.
✓ Double speed Motor with large ration for widely usage.
✓ Build-in parking brake for safety.
✓ Extremely compact volume and light weight.
✓ Reliable quality and high durability.
✓ Travel smoothly with very low noisy.
✓ Automatic speed changing function is optional.
⬧ Widely Applications
WBM Track Motors can be suitable for most of the Track Loaders in the market. Such as BOBCAT, CASE, CATERPILLAR, JOHN DEERE, DITCH WITCH, EUROCOMACH, GEHL, IHI, JCB, KOMATSU, MANITOU, MUSTANG, NEW HOLLAND, TAKEUCHI, TEREX, TORO, VERMEER, VOLVO, WACKER NEUSON, YANMAR and other main brand Compact Loaders.
⬧ Summary
WBM-700 series Track Drive is our new designed Travel Motor for closed loop applications. It is mainly used in Skid Steer Loaders and Compact Track Loaders. These Final Drives are with the same specifications and connecting dimensions with Bonfiglioli 700 series Track Drives. We are also making the Track Drives which are interchangeable with the main brands such as Sauer-Danfoss BMVT, Nabtesco TH-VB, DANA CTL Spicer Torque-hub, etc. We can also design the Motor size and connection as your OEM Final Drives.
⬧ Connection Dimensions
| Frame orientation diameter |
240mm |
| Frame bolt pattern |
18-M16 |
| Frame holes P.C.D. |
275mm |
| Sprocket orientation diameter |
250mm |
| Sprocket bolt pattern |
9-M16 |
| Sprocket holes P.C.D. |
290mm |
| Flange distance |
110mm |
| Approximate weight |
80kg |
● Both flange holes patterns can be made as required.
⬧ Frequently Asked Questions (FAQ)
What types of machinery are WBM-700CT series track drives compatible with?
The WBM-700CT series is primarily designed for Skid Steer Loaders, Compact Track Loaders, Pavers, Dozers, and Soil Compactors. It is compatible with major brands like Bobcat, CAT, Kubota, and many others.
Can these final drives replace Bonfiglioli or Sauer-Danfoss models?
Yes, the WBM-700 series features the same specifications and connecting dimensions as the Bonfiglioli 700 series and is interchangeable with brands like Sauer-Danfoss BMVT, Nabtesco TH-VB, and DANA CTL Spicer Torque-hub.
Does the motor support different speed modes?
Yes, it features a double-speed motor with a large ratio for versatile usage, and an automatic speed-changing function is available as an optional feature.
What safety features are integrated into the drive?
Each unit includes a built-in parking brake and a flushing valve to ensure safe operation and efficient heat dissipation during heavy-duty tasks.
Are custom connection dimensions available for OEM projects?
Absolutely. We can customize motor sizes and flange hole patterns to match your specific OEM final drive requirements and equipment connections.
What is the weight and load capacity of the WBM-707TD model?
The WBM-707TD weighs approximately 80kg and is designed for applications in the 5 to 7-ton range, providing a maximum output torque of 7300 N.m.
