China PMCI 4000 Travel Drive Supplier, Suppliers

Model No.: PMCI 4000
20-25 ton Excavator Travel Motor.
OEM quality with One Year warranty.
Quickly delivery within 3 days (standard models).
Interchangeable with PMP Industries PMCI 4000 Integrated Travel Drive.

Send Inquiry

Product Description

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
PMCI 4000	34 MPa	43000 N.m	50 rpm	2-speed	4 ports	20-25 Ton

Key Features

Swash-plate Axial Piston Motor with high efficiency.

Double speed Motor with large ration for widely usage.

Build-in parking brake for safety.

Extremely compact volume and light weight.

Reliable quality and high durability.

Travel smoothly with very low noisy.

Optional Free-wheel device.

Automatic speed changing function is optional.

Brief Introduction

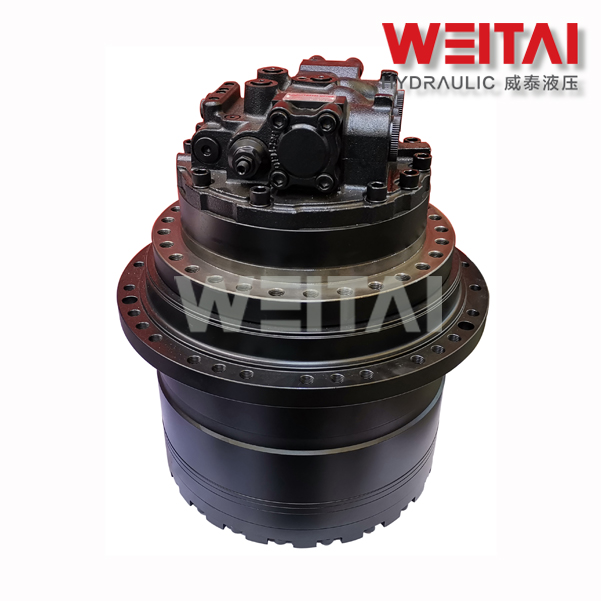

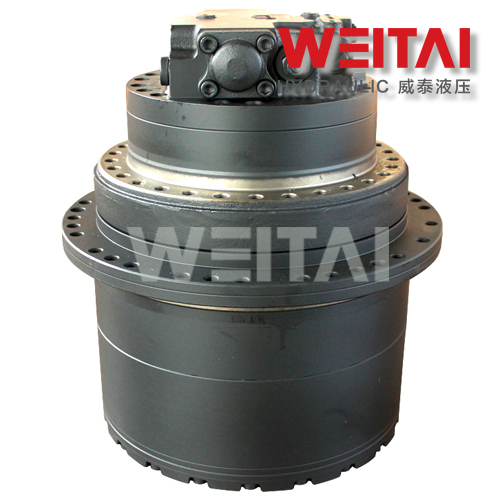

PMCI 4000 Integrated Travel Drive is consisted of Swash-plate Piston Motor integrated with planetary reducer gearbox. It is widely used for track driving hydraulic Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.

Specifications

Motor Displacement	108/95 cc/r
Working pressure	34 Mpa
Speed control pressure	2~7 Mpa
Ratio options	48
Max. torque of Gearbox	43000 N.m
Max. speed of Gearbox	50 rpm
Machine application	20~25 Ton

Connection

Frame connection diameter	300mm
Frame flange bolt	30-M16
Frame flange P.C.D.	340mm
Sprocket connection diameter	402mm
Sprocket flange bolt	30-M16
Sprocket flange P.C.D.	440mm
Flange distance	98mm
Approximate weigth	300kg

Summary

PMCI 4000 Travel Motor are interchangeable with PMP PMIC 4000, Doosan TM40, Kayaba MAG-180VP, Nabtesco GM40VA and other similar size machines. It is suitable for most of the hydraulic Excavators in the market. Such as Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion and other main brand Excavators.
