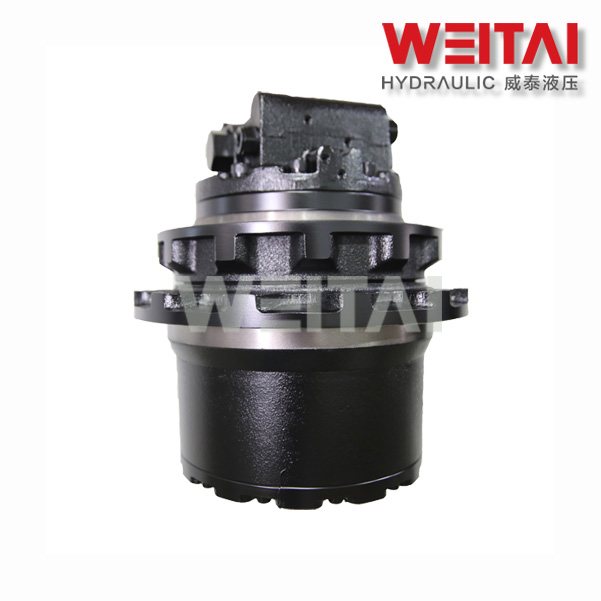

China PMCI 1200 Travel Drive Suppliers, Factories

Model No.: PMCI 1200 7-8 ton Excavator Travel Motor. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with PMP Industries PMCI 1200 Integrated Travel Drive.

Send Inquiry

Product Description

► Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
PMCI 1200	30 MPa	11500 N.m	50 rpm	2-speed	4 ports	7-8 Ton

★ Key Features

Swash-plate Axial Piston Motor with high efficiency.

Double speed Motor with large ration for widely usage.

Build-in parking brake for safety.

Extremely compact volume and light weight.

Reliable quality and high durability.

Travel smoothly with very low noisy.

Optional Free-wheel device.

Automatic speed changing function is optional.

ⓘ Brief Introduction

The PMCI 1200 Integrated Travel Drive consists of a Swash-plate Piston Motor integrated with a planetary reducer gearbox. It is widely used for track driving hydraulic Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.

⚙ Specifications

Motor Displacement	34/53 cc/r
Working pressure	30 Mpa
Speed control pressure	2~7 Mpa
Ratio options	45.57
Max. torque of Gearbox	11500 N.m
Max. speed of Gearbox	50 rpm
Machine application	7~8 Ton

🔗 Connection Details

Frame connection diameter	210mm
Frame flange bolt	12-M16
Frame flange P.C.D.	250mm
Sprocket connection diameter	265mm
Sprocket flange bolt	12-M14
Sprocket flange P.C.D.	300mm
Flange distance	80mm
Approximate weight	90kg

✔ Summary

The PMCI 1200 Final Drive is the ideal replacement for PMP Industries PMCI 1200 Travel Drive. It is a motor with high efficiency and large strength. High performance OEM Final Drives are manufactured for mobile machinery. With decades of experience in Travel Motors, these products are supplied to major top excavator brands. This Final Drive is one of the best Track Motor resources available in the market.

? Frequently Asked Questions

What machines is the PMCI 1200 suitable for?

The PMCI 1200 is designed for 7-8 ton crawler equipment, including hydraulic excavators, drilling rigs, and mining equipment.

Can this unit replace a PMP Industries Travel Drive?

Yes, it is an ideal replacement for the PMP Industries PMCI 1200 Travel Drive with compatible specifications.

Does it feature a braking system?

Yes, it includes a built-in parking brake to ensure safety during operation.

What is the maximum torque output of the gearbox?

The maximum output torque for the PMCI 1200 gearbox is 11500 N.m.

Is the speed range adjustable?

Yes, it is a 2-speed motor, and it offers an optional automatic speed changing function for versatile usage.

What is the weight of the PMCI 1200?
