China Final Drive Motor WTM-10 Suppliers, Factories

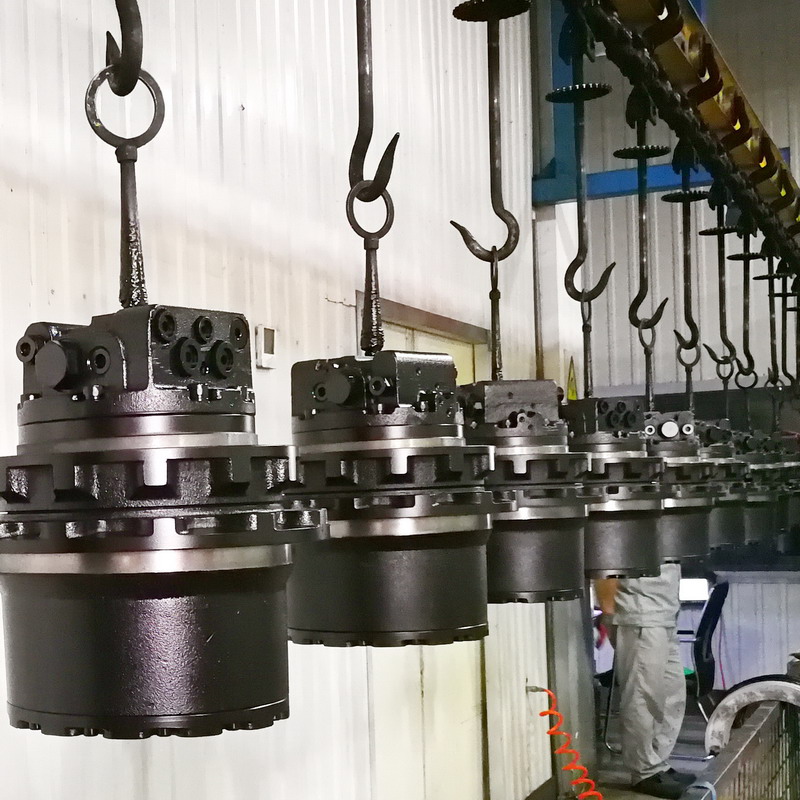

Model No.: WTM-10 9-11 ton Excavator Travel Motor. OEM quality with One Year warranty. Freewheel function for easily dragging. Quickly delivery within 3 days (standard models). Interchangeable with Doosan TM10 Travel Motors.

Send Inquiry

Product Description

▶ Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
WTM-10	30 MPa	13700 N.m	48 rpm	2-speed	4 ports	7-9 Ton

★ Key Features

Swash-plate Axial Piston Motor with high efficiency.

Double speed Motor with large ration for widely usage.

Build-in parking brake for safety.

Extremely compact volume and light weight.

Reliable quality and high durability.

Travel smoothly with very low noisy.

Optional Free-wheel device.

Automatic speed changing function is optional.

✨ Brief Introduction

WTM-10 Final Drive consists of a high-efficiency Swash-plate Piston Motor integrated with a high-strength planetary gearbox. It is widely used for track-driving hydraulic Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.

⚙ Specifications

Motor Displacement	34/53 cc/r
Working Pressure	30 Mpa
Speed Control Pressure	2~7 Mpa
Ratio Options	54.4
Max. Torque of Gearbox	13700 N.m
Max. Speed of Gearbox	48 rpm
Machine Application	9~11 Ton

🔗 Connection Data

Frame Connection Diameter	210mm
Frame Flange Bolt	12-M16
Frame Flange P.C.D.	250mm
Sprocket Connection Diameter	265mm
Sprocket Flange Bolt	12-M14
Sprocket Flange P.C.D.	300mm
Flange Distance	80mm
Approximate Weight	100kg

📝 Summary

WTM series Hydraulic Final Drive Motor features similar dimensions to most famous brands in the market such as Nachi Travel Motor, KYB Travel Motor, Eaton Track Drive, and other excavator Travel Motors. It is widely used in both OEM and aftersales markets to replace Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Rexroth, Kawasaki, Teijin Seiki, Tong Myung, and other Hydraulic Final Drive Motors.

Frequently Asked Questions

What is the primary application of the WTM-10 Final Drive?

The WTM-10 is primarily designed for track driving in 7-11 ton hydraulic excavators, drilling rigs, mining equipment, and other crawler-based machinery.

Can this motor replace other major brands like Nachi or KYB?

Yes, WTM series motors are designed with dimensions similar to major brands like Nachi, KYB, Eaton, and Rexroth, making them ideal for both OEM and aftermarket replacements.

Does the WTM-10 include a safety brake system?

Yes, the motor features a built-in parking brake to ensure safety during operation and while the machine is stationary.

What are the speed options for this hydraulic motor?

The WTM-10 is a double-speed motor, providing versatility for different working conditions. An automatic speed-changing function is also available as an option.

What is the maximum output torque and pressure?

The unit delivers a maximum output torque of 13,700 N.m and is designed to operate at a maximum working pressure of 30 MPa.

Is the WTM-10 suitable for heavy-duty mining environments?

Absolutely. Its high-strength planetary gearbox and high-efficiency piston motor are built for reliability and durability in demanding environments like mining and drilling.
