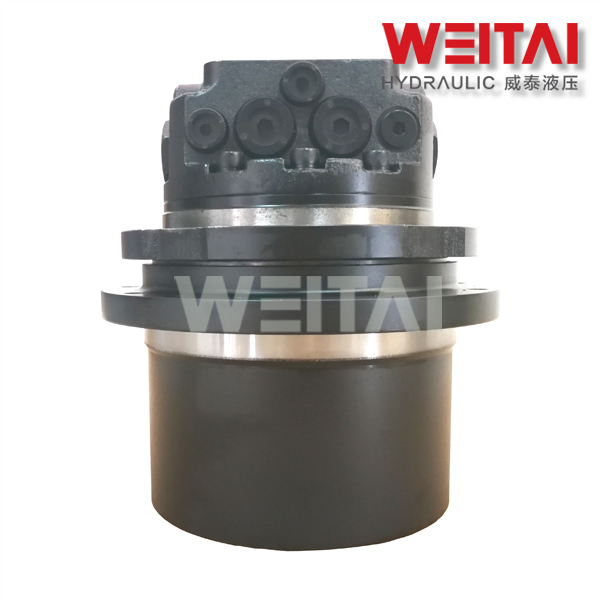

China Track Drive Motor JMV016 Manufacturers, Factories

Model No.: JMV016
1.5-2.5 ton Mini Excavator Final Drive.
OEM quality with One Year warranty.
Quickly delivery within 3 days (standard models).
Interchangeable with Eaton JMV Axial Piston Motor, 2-speed Track Drive Motor JMV016.

Send Inquiry

Product Description

🎥 Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
JMV016	21 MPa	1700 N.m	70 rpm	2-speed	4 ports	1.5-2.5 Ton Excavator

📝 Brief Introduction

JMV series Track Drive Motor consists of a JMV Axial Piston Motor integrated with a high-strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.

⚙️ Typical Applications

Excavator and mini excavator
Crawler crane
Winch
Aerial working platform
Grasper
Rotary drilling
Horizontal directional drilling
Crusher
Asphalt milling
Special crawler vehicle

⭐ Key Features

Integrated gearbox with 2-speed Axial Piston Motor
Rated pressure up to 365 bar
Displacement: 16cc ~ 274cc
Suitable for 1.5 ton ~ 50 ton mobile applications
Integrated Relief and Counterbalance valves
Integrated fail-safe mechanical Parking Brake
Higher mechanical and volumetric efficiency
Improved design for higher start-up torque
Optimum design for smooth start and stop
Compact design with high power density
Auto-shift between high speed and high torque
High performance and reliability

📐 Connection Dimensions

Frame flange orientation diameter	150mm
Frame flange bolt pattern	9-M10 Equally
Frame flange holes P.C.D.	170mm
Sprocket flange orientation diameter	160mm
Sprocket flange bolt pattern	9-M10 Equally
Sprocket flange holes P.C.D.	1580mm
Flange distance	40mm
Approximate weight	25kg

* Flange hole patterns can be made as required.

Frequently Asked Questions

Q1: What equipment is the JMV series Track Drive Motor suitable for? A1: It is ideal for mini excavators, drilling rigs, mining equipment, crawler cranes, and other crawler-based machinery.

Q2: Does the motor support automatic speed switching? A2: Yes, the motor features auto-shift functionality, transitioning from high-speed low torque to low-speed high torque when traveling resistance increases.

Q3: What safety features are integrated into the drive? A3: The JMV series includes an integrated fail-safe mechanical parking brake, as well as integrated relief and counterbalance valves for safe operation.

Q4: Can the flange dimensions be customized? A4: Yes, flange hole patterns and connection dimensions can be manufactured according to specific installation requirements.

Q5: What is the maximum pressure rating for these motors? A5: The JMV series motors are designed to handle rated pressures up to 365 bar, ensuring high power density in a compact design.

Q6: What tonnages are covered by this motor series? A6: The JMV range is suitable for a wide variety of mobile applications ranging from 1.5 tons up to 50 tons.
