■ Brief Introduction

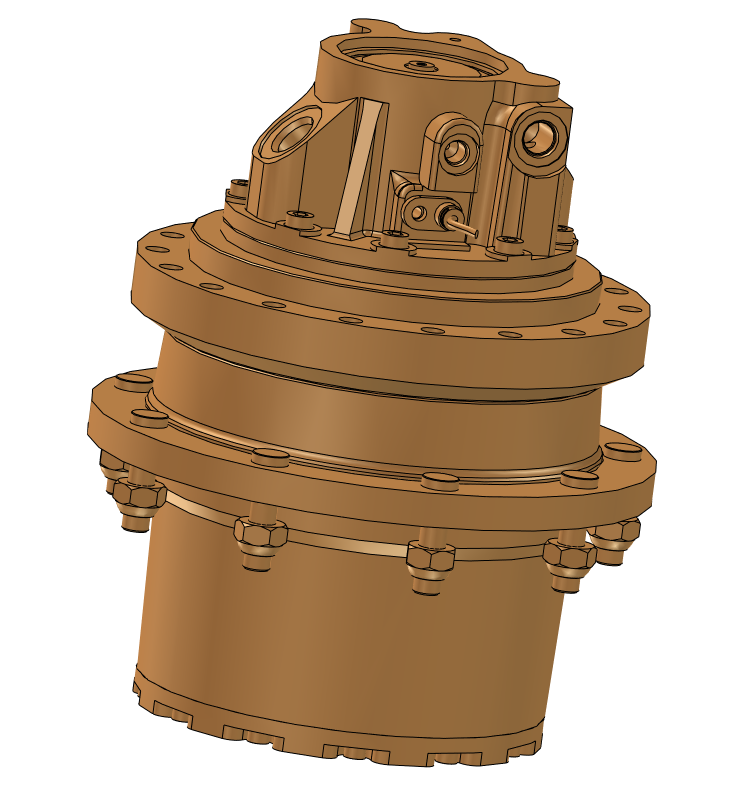

WBM-700CT series Track Drive is our new designed Final Drive which integrated with high efficiency hydraulic motor and high strength planetary gearbox. It is widely used for Skid Steer Loaders, Compact Track Loaders, Pavers, Dozers, Soil Compactors and other Crawler Equipment.
| Model |
Rated Working Pressure |
Max. Output Torque |
Max. Output Speed |
Speed switching |
Oil Port |
Application |
| WBM-704CT |
27.5 MPa |
11500 N.m |
50 rpm |
2-speed |
5 ports |
7-9 Ton |
■ Key Features
- Designed for closed hydraulic circuit.
- Build-in flushing valve.
- Axial Piston Motor with high efficiency.
- Double speed Motor with large ration for widely usage.
- Build-in parking brake for safety.
- Extremely compact volume and light weight.
- Reliable quality and high durability.
- Travel smoothly with very low noisy.
- Automatic speed changing function is optional.
■ Widely Applications
WBM Track Motors can be suitable for most of the Track Loaders in the market. Such as BOBCAT, CASE, CATERPILLAR, JOHN DEERE, DITCH WITCH, EUROCOMACH, GEHL, IHI, JCB, KOMATSU, MANITOU, MUSTANG, NEW HOLLAND, TAKEUCHI, TEREX, TORO, VERMEER, VOLVO, WACKER NEUSON, YANMAR and other main brand Compact Loaders.
■ Summary
WBM-700 series Track Drive is our new designed Travel Motor for closed loop applications. It is mainly used in Skid Steer Loaders and Compact Track Loaders. These Final Drives are with the same specifications and connecting dimensions with Bonfiglioli 700 series Track Drives. We are also making the Track Drives which are interchangeable with the main brands such as Sauer-Danfoss BMVT, Nabtesco TH-VB, DANA CTL Spicer Torque-hub, etc. We can also design the Motor size and connection as your OEM Final Drives.
■ Connection Dimensions
| Frame orientation diameter |
210mm |
| Frame bolt pattern |
12-M16 |
| Frame holes P.C.D. |
250mm |
| Sprocket orientation diameter |
265mm |
| Sprocket bolt pattern |
12-M14 |
| Sprocket holes P.C.D. |
300mm |
| Flange distance |
80mm |
| Approximate weight |
80kg |
● Both flange holes patterns can be made as required.
■ FAQ
What applications is the WBM-700CT series Track Drive suitable for?
It is primarily designed for Skid Steer Loaders, Compact Track Loaders, Pavers, Dozers, Soil Compactors, and various other Crawler Equipment.
Is this Track Drive compatible with Bonfiglioli 700 series?
Yes, the WBM-700 series shares the same specifications and connecting dimensions as the Bonfiglioli 700 series Track Drives.
What other brands can the WBM Track Motor replace?
Our drives are interchangeable with main brands such as Sauer-Danfoss BMVT, Nabtesco TH-VB, and DANA CTL Spicer Torque-hub.
Does the motor support two-speed switching?
Yes, it features a double-speed motor with a large ratio for versatile usage across different operating conditions.
Can the connection dimensions be customized?
Yes, we can design the motor size and connection patterns according to your specific OEM requirements.
Is safety integrated into the design?
Absolutely. The drive includes a built-in parking brake and a flushing valve to ensure safe and reliable operation in closed hydraulic circuits.
