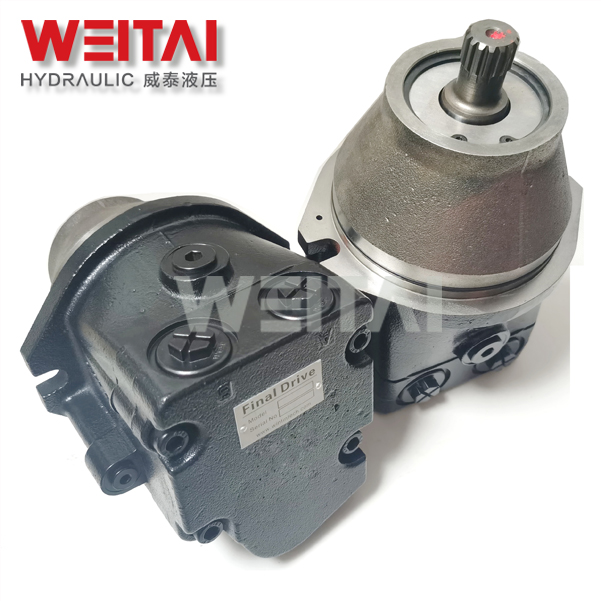

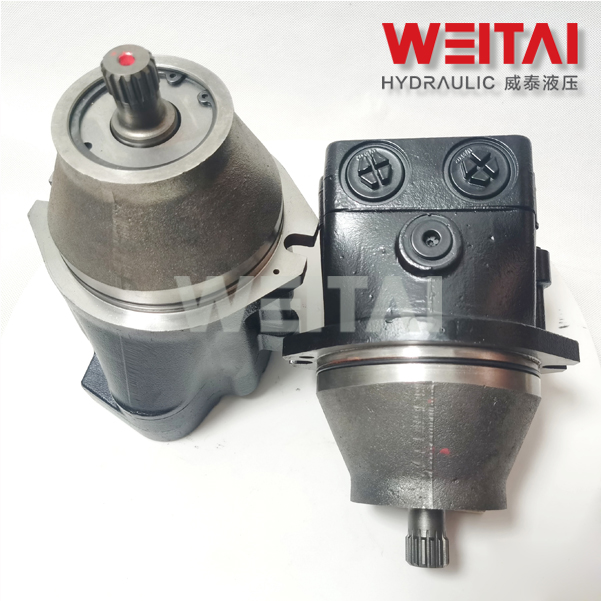

China L and K Frame Variable Motor LC25, Cartridge Mount Manufacturer, Manufacturers

Model No.: WLC25 Interchangeable with Danfoss LC25 Various Motor. Used for Aerial Lift and other wheel drive equipment. Cartridge Type working with Planetary Gearbox. OEM quality with One Year warranty.

Send Inquiry

Product Description

Brief Introduction

LC25, KC38 and KC45 Cartridge Type Motor is designed to work with Planetary Gearbox for Wheel Drive. It is an axial piston design with two positions various motor. This motor is ideally configured for installations requiring compact packaging and optimized plumbing, such as wheel ends.

Model	Rated Working Pressure	Max. Output Torque	Max. Output Speed (@ max displacement)	Max. Output Speed (@ min displacement)
WLC25	400 bar	80 N.m	3400 rpm	4400 rpm

Key Features

✓High pressure max to 400 bar.
✓Cartridge design for gearbox connection directly.
✓Short and compact for space-optimized situation.
✓Three clean sides with superior clearance and access to mounting bolts.
✓High Efficiency - nine piston rotating groups.
✓Versatility - wide displacement range.
✓Reliability - uses existing and proven technology.
✓Optional flushing valve for closed loop.
✓Optional speed sensor.

Widely Applications

LC motors and KC motors are with OEM quality and perfectly replace various Hydraulic Motors. They can also be integrated with relative Planetary Reducing Gearboxes.

Summary

The LC and KC Frame variable motors consist of five unique rotating groups: displacements of 20cc/r, 25cc/r, 30cc/r, 38cc/r and 45cc/r. The motor is spring biased to maximum displacement and hydraulically shifted to minimum displacement. Minimum and maximum displacement can be set with fixed internal stops. The large diameter servo piston allows smooth acceleration and deceleration with relatively large circuit orificing.

Connection Dimensions

Video Display

Frequently Asked Questions

What are the available displacement options for LC and KC motors?

The series includes five unique rotating groups with displacements of 20cc/r, 25cc/r, 30cc/r, 38cc/r, and 45cc/r.

What is the maximum pressure these motors can handle?

These cartridge type motors are designed for high-pressure operations, reaching a maximum of 400 bar.

How does the displacement shifting mechanism work?

The motor is spring biased to maximum displacement and utilizes hydraulic pressure to shift to minimum displacement.

Can these motors be used with planetary gearboxes?

Yes, the cartridge design is specifically engineered for direct connection to planetary gearboxes, making them ideal for wheel drive applications.

Are there any optional accessories for these motors?

Optional features include a flushing valve for closed-loop systems and an integrated speed sensor for monitoring performance.

What makes these motors suitable for compact machinery?

Their short, compact cartridge design and "three clean sides" provide superior clearance and easy access to mounting bolts in space-constrained installations.
