| Model | Max Output torque | Rated Output Torque | Max. Input Speed | Max. Output Speed | Ratio | Motor |
|---|---|---|---|---|---|---|
| WED-003 | 1100 N.m | 325 N.m | 3600 rpm | 145 rpm | 1:25 | 5.0 Kw |

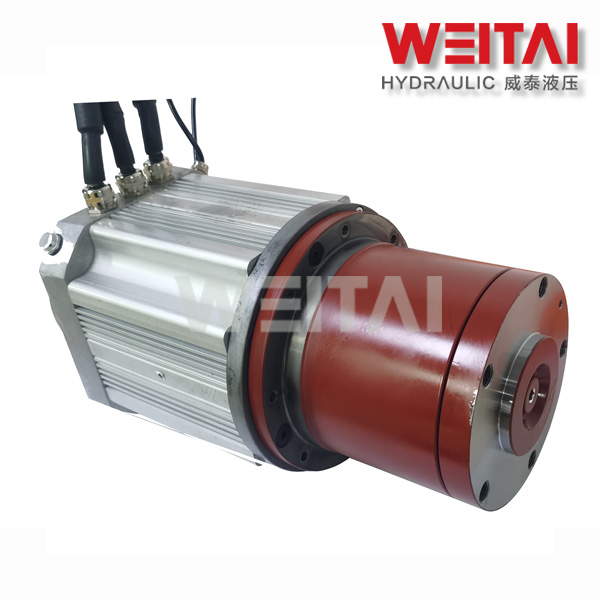

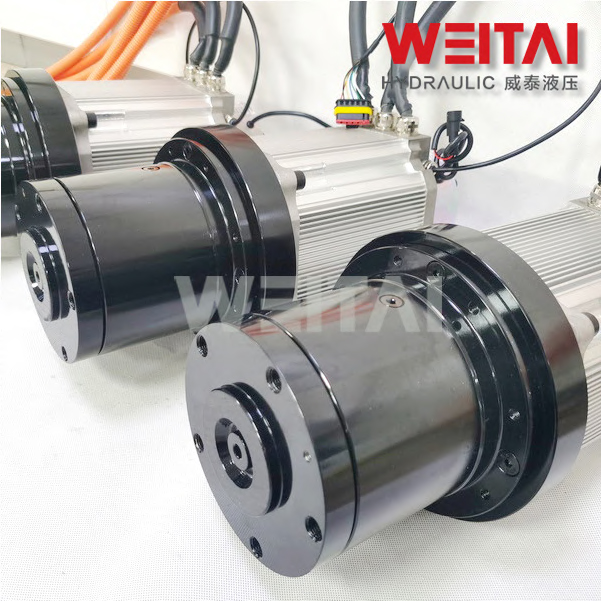

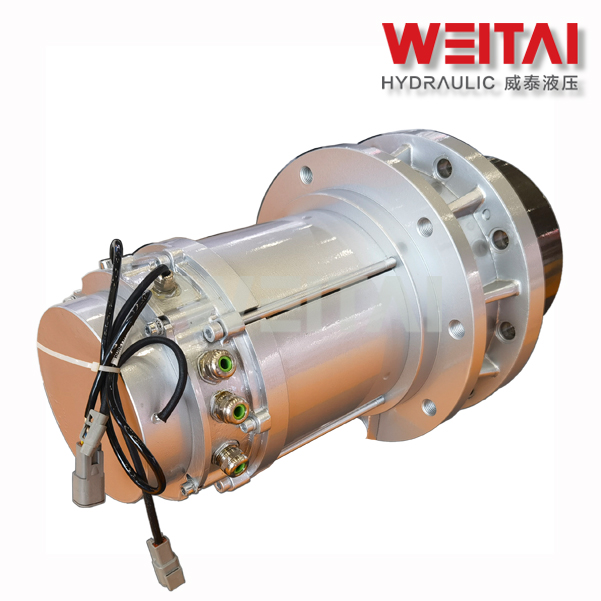

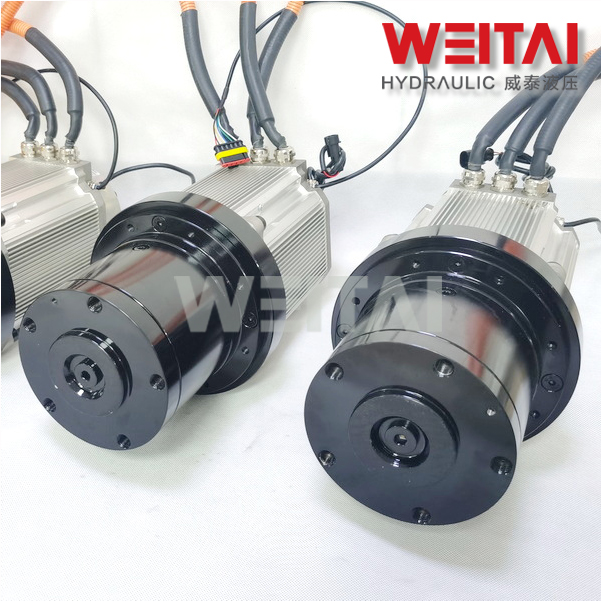

WED-003 series Electric Drive is combined by a high efficiency IPM Motor and planetary gearbox. It is widely used in mobile machinery for wheel drive application, such as Aerial Lift and Aerial Platform.
| Frame orienting diameter | 210mm |
| Frame flange bolt | 9-M10 |
| Frame flange P.C.D. | 230mm |
| Sprocket orienting diameter | 190mm |
| Sprocket flange bolt | 8-M10 |
| Sprocket flange P.C.D. | 230mm |
| Flange distance | 106mm |
| Approximate weight | 70kg |
Benefit to the rapid development of electric excavators and electric skid steers, rich experience has been accumulated in R&D, production and application in the field of electric drives. This series has gradually grown into a leading solution in the field of electric drive.
The drive adopts advanced Permanent Magnet Electric Motor, with compact planetary reducer and uniquely designed connection structure, which provides advantages of high efficiency, compact structure, strong durability and wide application.
With strong design and manufacturing capabilities, complete drive solutions can be provided for applications in different fields. We look forward to cooperating with customers around the world in the field of fully electric mobile machinery.
