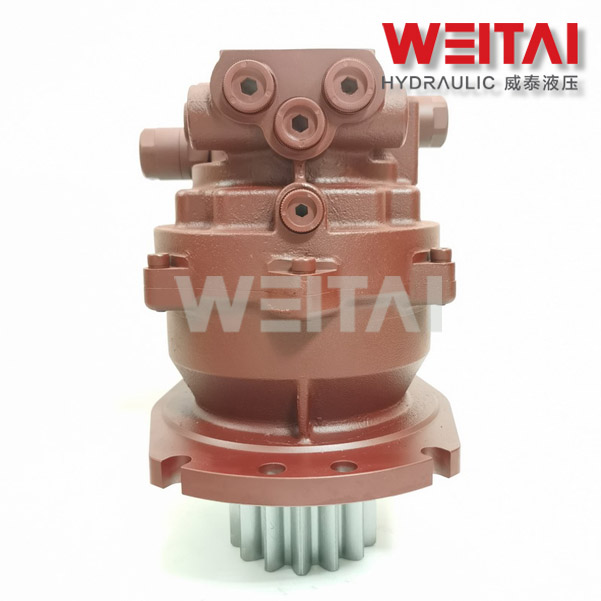

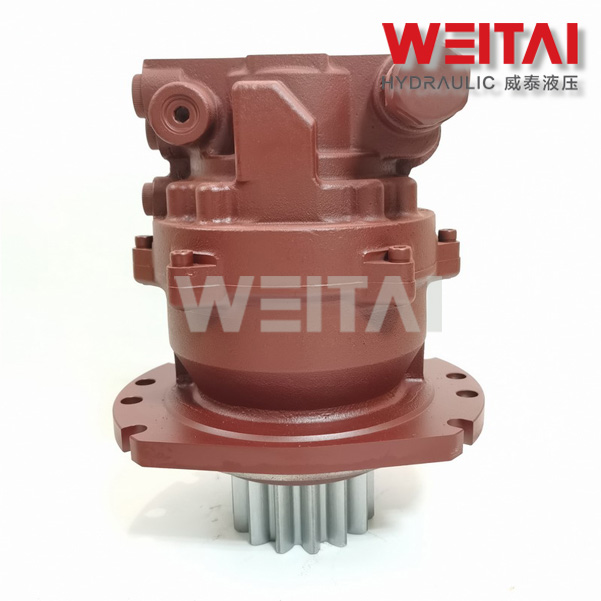

PCR-10-10 Swing Motor is a high-performance swing device driven by a Swash-plate Piston Motor integrated with a planetary gearbox. It is engineered specifically for Mini Excavators, Drilling Rigs, Mining Equipment, and other heavy machinery requiring precise rotary action.
Model
Max Working Pressure
Max. Output Torque
Max. Output Speed
Application
PCR-10-10
21.5 MPa
620 N.m
60 rpm
0.8-2.5 Ton
2 Key Features
Swash-plate Piston Motor with high efficiency
Extremely compact volume and light weight
Built-in parking brake for enhanced safety
Reliable quality and high durability
Travels smoothly with very low noise
Optional automatic speed changing function
3 Specifications
Model:
PCR-10-10
Displacement
23 ml/r
Max Working Pressure
21 MPa
Gear Ratio
10
Theoretical Output Torque
620 N.m
Theoretical Output Speed
60 r/min
Application
1~2.5 Ton
4 Wide Range of Applications
PCR Travel Motors are compatible with most excavators on the market, including: Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion, and other leading brands.
5 Summary & Replacement
The PCR series Hydraulic Swing Motor features dimensions similar to leading industry brands such as Nachi PCR Slew Motor, KYB Swing Motor, Eaton Slew Drive, and Kawasaki Swing Motor. It is widely utilized in both OEM and aftermarket sectors to replace brands like Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, and Tong Myung.
● Note: Flange hole patterns can be customized as per specific technical requirements.
6 Connection & Compatibility
The PCR-10-10 Swing Motor serves as an ideal replacement for the PCR-1B Slew Motor, ensuring seamless integration and reliable performance.
Technical FAQ
What is the primary application for the PCR-10-10 Swing Motor?
It is primarily designed for rotary actions in mini excavators ranging from 0.8 to 2.5 tons, as well as drilling rigs and mining equipment.
Can this motor replace other major brands like Nachi or KYB?
Yes, the PCR-10-10 is an ideal replacement for Nachi PCR, KYB, Eaton, and Kawasaki swing motors due to its similar dimensions and technical specifications.
Does the PCR-10-10 come with a braking system?
Yes, it features a built-in parking brake to ensure safety and stability during operation.
Is it possible to customize the flange hole patterns?
Absolutely. Flange hole patterns can be manufactured as required to match your specific machine mounting needs.
What are the core technical advantages of this motor?
The motor offers high efficiency through its swash-plate piston design, a compact and lightweight structure, high durability, and very low operational noise.
Is there an automatic speed changing function?
An automatic speed changing function is available as an optional feature depending on your specific requirements.
