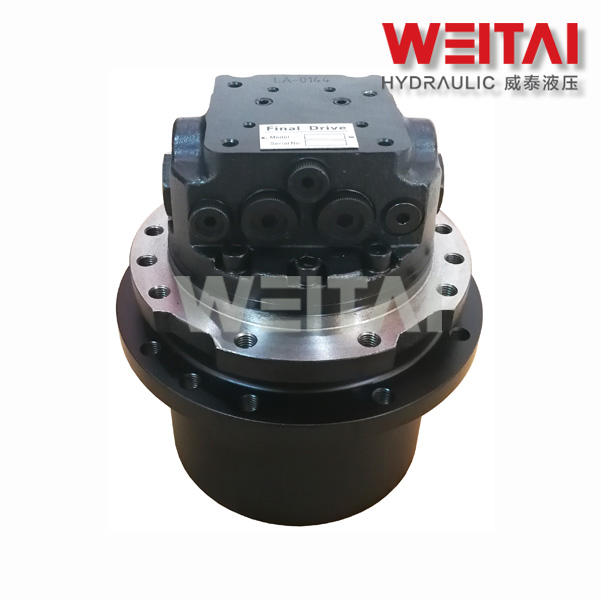

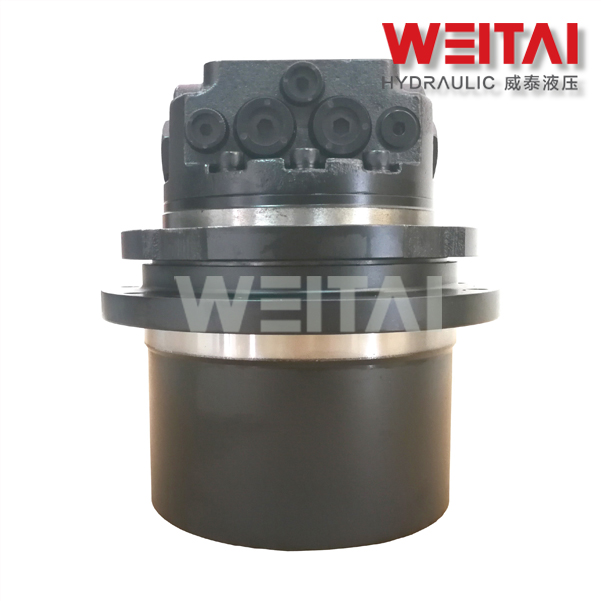

China Track Drive 701 C2K Manufacturer, Suppliers

Model No.: 701 C2 K 1-2 ton Mini Excavator Final Drive. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with TM03, PHV-3B, MAG-18V-350, JMV016 Travel Motors.

Send Inquiry

Product Description

▶ Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
701 C2 K	21 MPa	3000 N.m	68 rpm	2-speed	4 ports	2.5-3.5 Ton Excavator

i Brief Introduction

700CK series Track Drive motors are integrated Travel Drive motors for crawler excavators and other track drive machines. Extreme compactness, lightweight, efficiency and smooth operation are the key features of the 700CK series track drives. It is powered by integrated axial piston motor and worked with high strength big toque reducing gearboxes.

⚙ Widely Applications

WTM Travel Motors are suitable for most of the Excavators in the market. Such as Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion and other main brand Excavators.

📋 Summary

701 C2 K series Track Drive is with the similar dimensions with most of the famous brands in market such as Nachi Travel Motor, KYB Travel Motor, Eaton Track Drive, and other Final Drives. So it widely used in the OEM and aftersales market to replace Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, Tong Myung and other Hydraulic Final Drive Motors.

Our models include 700C2K, 700-2C2K, 701C2K, 702C2K, 704C2k, 705C2k to 710C2K. We are also making 700C1H, 701C1, 703C2H, 705C2H, 706C3H, 707 C2B, 709C3B, 710C2B, 711C3B, 713C3B, 715C3B, 717C3H, and the full series of 700C Travel Drives.

★ Key Features

Swash-plate Piston Motor with high efficiency.

Double speed Motor with large ration for widely usage.

Rugged design.

High torque capacity.

High load capacity.

Compact design.

Rotating output flange with large PCD suitable for sprocket.

Automatic speed switching is optional.

📊 Specifications

Motor Displacement	18/12 cc/r
Working pressure	21 Mpa
2-Speed control pressure	2~7 Mpa
Ratio options	48.6
Max. torque of Gearbox	3000 N.m
Max. speed of Gearbox	68 rpm
Machine application	2.5~3.5 Ton

Displacement and gear ratio can be made as required.

📐 Connection Dimensions

Frame flange orientation diameter	165mm
Frame flange bolt pattern	9-M12
Frame flange holes P.C.D.	192mm
Sprocket flange orientation diameter	190mm
Sprocket flange bolt pattern	9-M12
Sprocket flange holes P.C.D.	215mm
Flange distance	50mm
Approximate weight	40kg

Flange hole patterns can be made as required.

Frequently Asked Questions

Q1: Which excavator brands are compatible with these travel motors? A: WTM Travel Motors are compatible with a wide range of brands including Caterpillar, Komatsu, Kubota, Hitachi, JCB, Bobcat, Yanmar, and many more.

Q2: Can I customize the gear ratio and motor displacement? A: Yes, both the displacement and the gear ratio can be manufactured according to your specific machine requirements.

Q3: Are these motors suitable for mini-excavators? A: Absolutely. For instance, the 701 C2 K model is specifically designed for 2.5 to 3.5-ton excavators.

Q4: Can these units replace other major brands like Nachi or Eaton? A: Yes, the 700CK series is designed with dimensions similar to brands like Nachi, KYB, Eaton, and Rexroth, making them ideal for OEM and aftermarket replacement.

Q5: What are the primary advantages of the 700CK series? A: Key advantages include high efficiency swash-plate piston motors, double speed functionality, rugged and compact design, and high torque capacity.

Q6: Is automatic speed switching available? A: Yes, automatic speed switching is an optional feature for these track drive motors.
