Brief Introduction

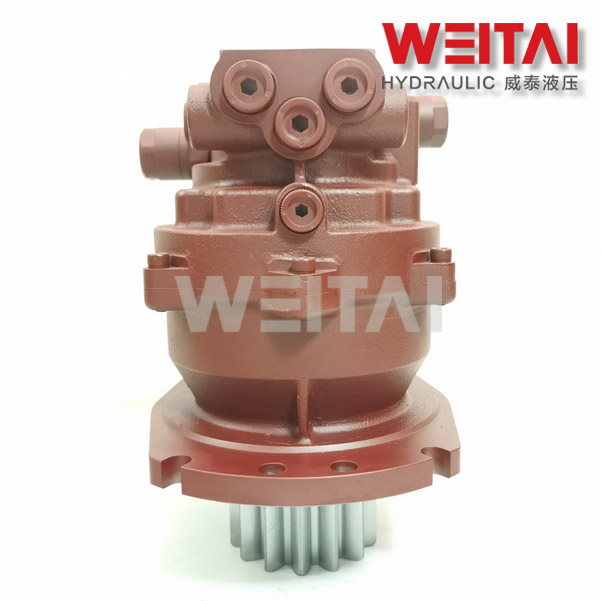

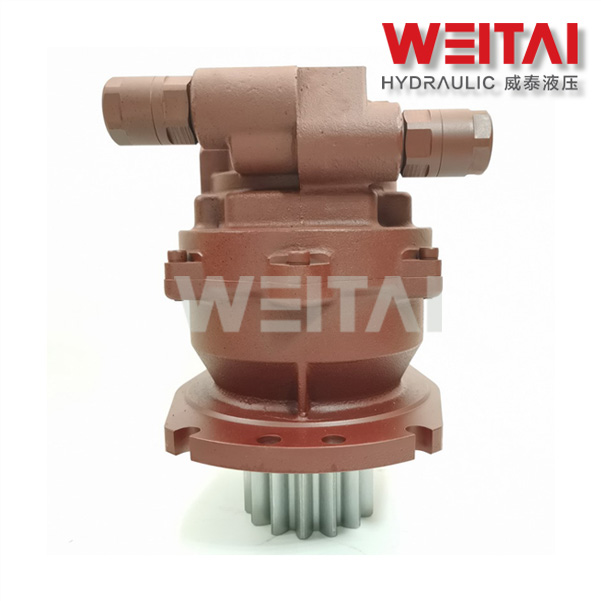

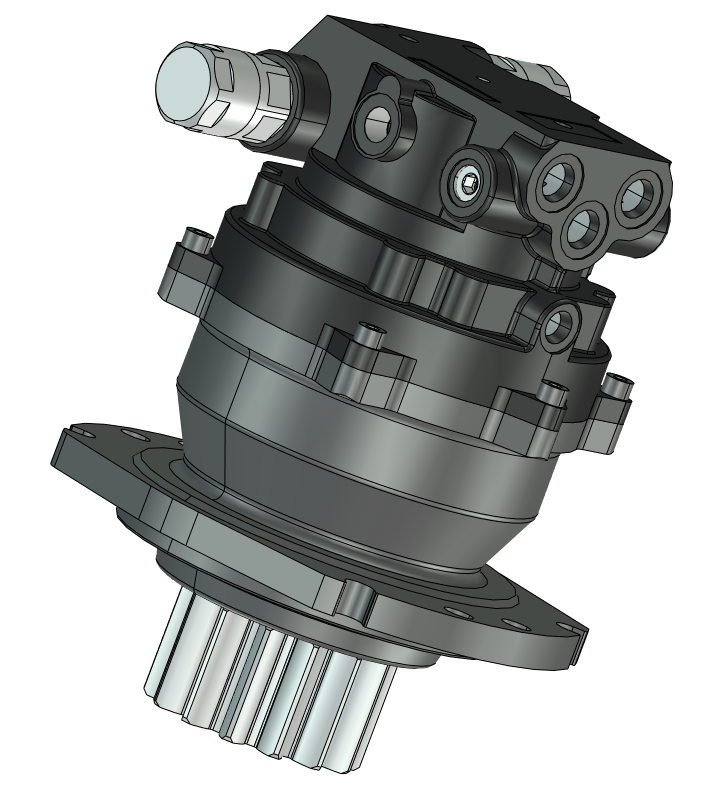

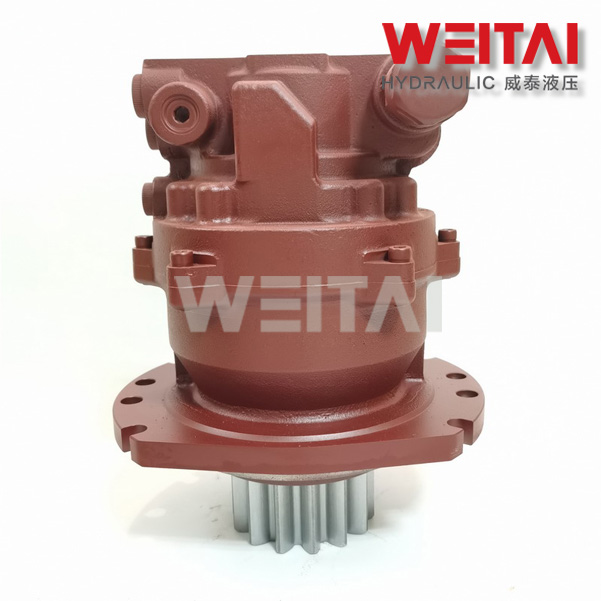

PCR-24-21 Swing Motor is a Swing device driven by Swash-plate Piston Motor with planetary gearbox. It is widely used in Mini Excavators, Drilling Rigs, Mining Equipment and other machines for rotary action.
| Model |
Max Working Pressure |
Max. Output Torque |
Max. Output Speed |
Application |
| PCR-24-21 |
21.5 MPa |
1400 N.m |
90 rpm |
4-6 Ton |
Key Features
Swash-plate Piston Motor with high efficiency.
Extremely compact volume and light weight.
Build-in parking brake for safety.
Reliable quality and high durability.
Swings smoothly with very low noisy.
Automatic speed changing function is optional.
Summary
PCR series Hydraulic Swing Motor is with the similar dimensions with most of the famous brands in market such as Nachi Slew Motor, KYB Swing Motor, Eaton Slew Drive, Kawasaki Swing Motor and other Slew Drives. So it widely used in the OEM and aftersales market to replace Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, Tong Myung and other Hydraulic Swing Drive Motors.
Frequently Asked Questions (FAQ)
Q1: What machines is the PCR-24-21 Swing Motor suitable for?
It is primarily designed for 4-6 ton mini excavators, drilling rigs, and mining equipment requiring reliable rotary action.
Q2: Can this motor replace other major slewing drive brands?
Yes, the PCR series is designed with similar dimensions to replace brands like Nachi, KYB, Eaton, Kawasaki, Rexroth, and Bonfiglioli.
Q3: Does the PCR-24-21 include a braking system?
Yes, it features a built-in parking brake to ensure safety and stability during operation.

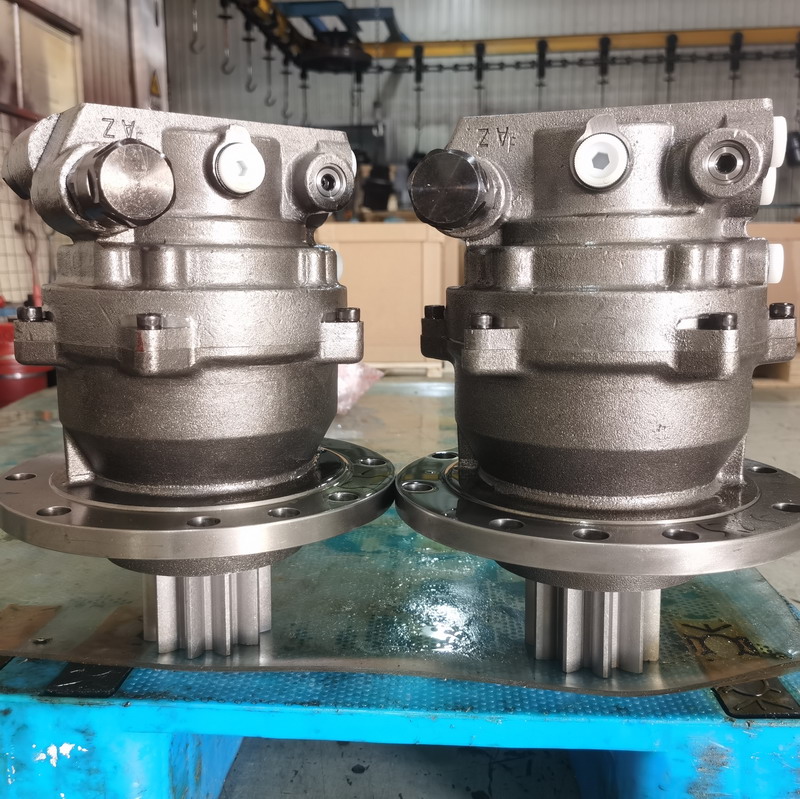

Q4: Is the mounting flange customizable?
Yes, flange hole patterns can be customized and manufactured according to your specific machinery requirements.
Q5: What are the main advantages of this swing motor?
The motor offers high efficiency, a compact and lightweight design, low noise operation, and exceptional durability for demanding environments.
Q6: What is the maximum output torque and speed for this model?
The PCR-24-21 provides a maximum output torque of approximately 1400-1445 N.m and a maximum output speed of 90 rpm.
