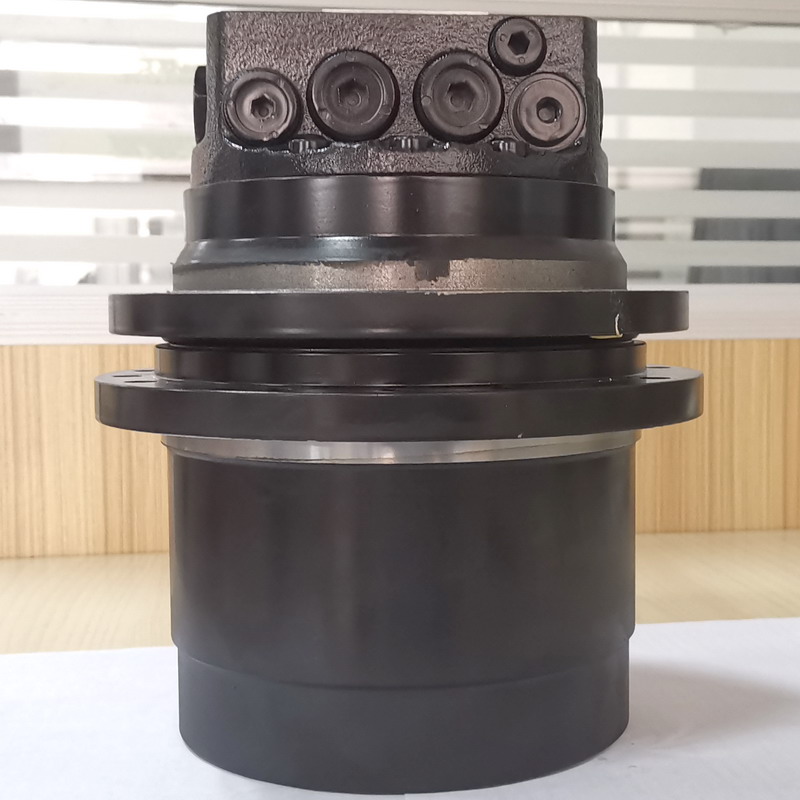

OEM Track Drive 700-2C2K Manufacturers, Factories

Model No.: 700-2C2 K 1-2 ton Mini Excavator Final Drive. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with TM-03, PHV-2B, TRB31, MAG-18V Travel Motors.

Send Inquiry

Product Description

Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
700-2C2 K	21 MPa	2100 N.m	70 rpm	2-speed	4 ports	1.5-2.5 Ton Excavator

Brief Introduction

700CK series Track Drive motors are integrated Travel Drive motors for crawler excavators and other track drive machines. Extreme compactness, lightweight, efficiency and smooth operation are the key features of the 700CK series track drives. It is powered by integrated axial piston motor and worked with high strength big toque reducing gearboxes.

Widely Applications

WTM Travel Motors are suitable for most of the Excavators in the market. Such as Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion and other main brand Excavators.

Summary

700-2C2K series Track Drive is with the similar dimensions with most of the famous brands in market such as Nachi Travel Motor, KYB Travel Motor, Eaton Track Drive, and other Final Drives. So it widely used in the OEM and aftersales market to replace Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, Tong Myung and other Hydraulic Final Drive Motors.

Our models include 700C2K, 700-2C2K, 701C2K, 702C2K, 704C2k, 705C2k to 710C2K. We are also making 700C1H, 701C1, 703C2H, 705C2H, 706C3H, 707 C2B, 709C3B, 710C2B, 711C3B, 713C3B, 715C3B, 717C3H, and the full series of 700C Travel Drives.

Key Features

Swash-plate Piston Motor with high efficiency
Double speed Motor with large ration for widely usage
Rugged design
High torque capacity
High load capacity
Compact design
Rotating output flange with large PCD suitable for sprocket
Automatic speed switching is optional

Specifications

Motor Displacement	16/9 cc/r
Working pressure	21 Mpa
2-Speed control pressure	2~7 Mpa
Ratio options	39
Max. torque of Gearbox	2100 N.m
Max. speed of Gearbox	70 rpm
Machine application	1.5~2.5 Ton

* Displacement and gear ratio can be made as required.

Connection Dimensions

Frame flange orientation diameter	150mm
Frame flange bolt pattern	9-M10
Frame flange holes P.C.D.	170mm
Sprocket flange orientation diameter	160mm
Sprocket flange bolt pattern	9-M10 Equally
Sprocket flange holes P.C.D.	180mm
Flange distance	40mm
Approximate weight	25kg

* Flange hole patterns can be made as required.

Frequently Asked Questions

What types of machines are the 700CK series track drives designed for?

They are integrated travel drive motors primarily designed for crawler excavators and other track-driven machinery.

Can the 700-2C2K series replace other famous brands?

Yes, it features similar dimensions to brands like Nachi, KYB, Eaton, Nabtesco, Doosan, and Rexroth, making it ideal for OEM and aftermarket replacements.

Is it possible to customize the displacement and gear ratio?

Yes, both the displacement and gear ratio can be manufactured according to your specific requirements.

Does the motor support multiple speeds?

The 700-2C2K is a 2-speed motor, and automatic speed switching is available as an optional feature.

What excavator tonnage is the 700-2C2K model suitable for?

This specific model is designed for machines ranging from 1.5 to 2.5 tons.

Can the flange bolt patterns be modified?

Yes, flange hole patterns can be customized to fit your specific equipment needs.
