China 705C2K Track Drive Motor Supplier, Factories

Model No.: 705 C2 K 7 ton Excavator Travel Motor. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with Bonfiglioli 705 C2 K Track Drive.

Send Inquiry

Product Description

Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
705 C2 K	27.5 MPa	11000 N.m	47 rpm	2-speed	4 ports	7-9 Ton

Key Features

Swash-plate Axial Piston Motor with high efficiency.
Double speed Motor with large ration for widely usage.
Build-in parking brake for safety.
Extremely compact volume and light weight.
Reliable quality and high durability.
Travel smoothly with very low noisy.
Optional Free-wheel device.
Automatic speed changing function is optional.

Brief Introduction

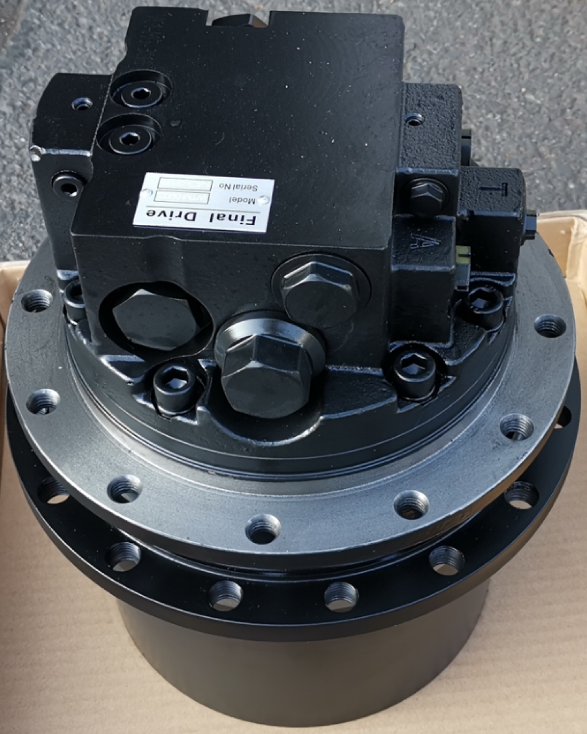

705 C2 K Final Drive is consisted of Swash-plate Piston Motor integrated with Bonfiglioli 700CK series planetary gearbox. It is widely used for track driving hydraulic Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.

Specifications

Motor Displacement	23/45 cc/r
Working pressure	27.5 Mpa
Speed control pressure	2~7 Mpa
Ratio options	55.3
Max. torque of Gearbox	11000 N.m
Max. speed of Gearbox	47 rpm
Machine application	7~9 Ton

Connection

Frame connection diameter	210mm
Frame flange bolt	12-M14
Frame flange P.C.D.	244mm
Sprocket connection diameter	230mm
Sprocket flange bolt	12-M14
Sprocket flange P.C.D.	260mm
Flange distance	70mm
Approximate weight	90kg

Summary

705 C2 K Travel Motor is the ideal replacement for Bonfiglioli 705 C2 K Track Drive. It is a Motor with high efficiency and large strength. High performance OEM Final Drives are produced for mobile machinery by professional experts with decades of experience. Our solutions serve as the primary resource for top excavator brands, providing the best Track Motor value in the market.

Models include 700C2K, 700-2C2K, 701C2K, 702C2K, 704C2k, 705C2k to 710C2K. We also provide 700C1H, 701C1, 703C2H, 705C2H, 706C3H, 707 C2B, 709C3B, 710C2B, 711C3B, 713C3B, 715C3B, 717C3H, and the full series of 700C Travel Drives.
