China 715C3B Travel Drive Manufacturers, Supplier

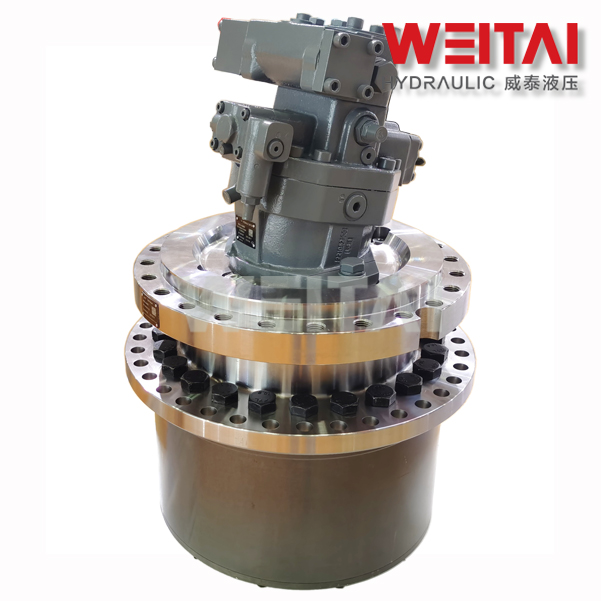

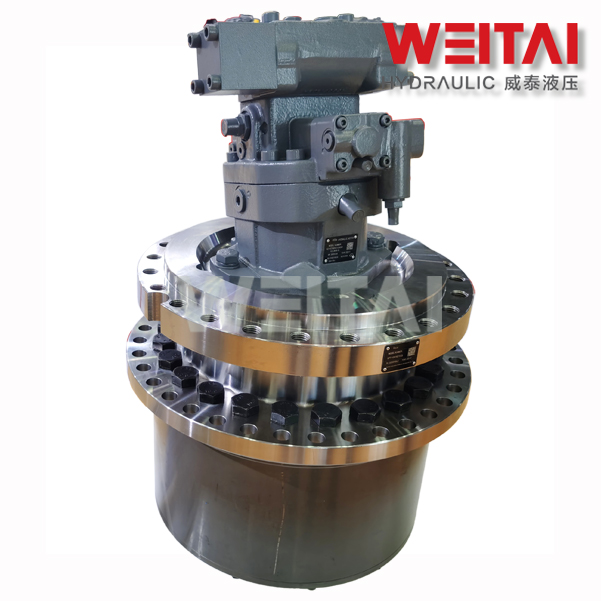

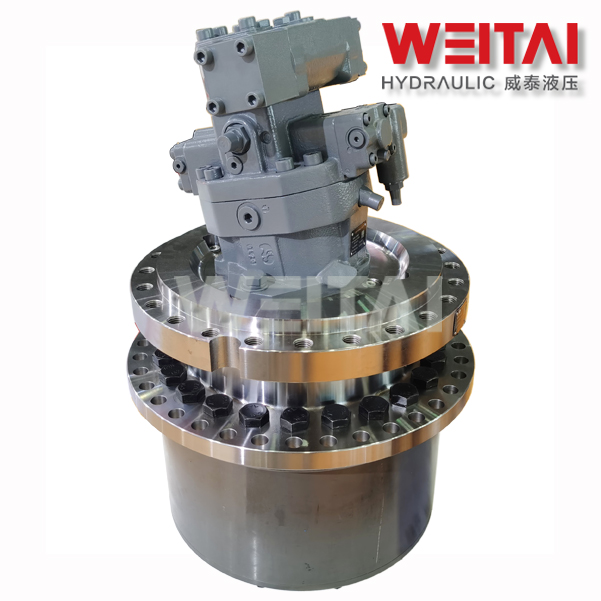

Model No.: 715 C3 B Travel Reducer with Hydraulic Motor. OEM quality with One Year warranty. Interchangeable with Bonfiglioli 700C Travel Drives.

Send Inquiry

Product Description

▶

Video Display

Model	Max Output Torque (Nm)	Max Working Pressure (Mpa)	Max Output Speed (r/min)	Applicable Tonnage(T)
715 C3 B	81500	28.5	30	36-45T

Brief Introduction

700C series Travel Drives are designed for crawler excavators and other track drive machines, working seamlessly with A6VE series various Hydraulic Motors. It integrates with Rexroth A6VE cartridge axial piston motors featuring failsafe parking brakes for maximum reliability.

★

Features

High-efficiency Swash-plate Piston Motor

Widely Used Standard Motor Configuration

Rugged and Durable Construction

High Torque and Load Capacity

Compact and Space-Saving Design

Rotating Output Flange for Sprockets

Optional Freewheel for Easy Transportation

⚙

Specifications

Motor Displacement	100/160 cc/r
Working pressure	28.5 Mpa
Speed control pressure	2~7 Mpa
Ratio options	129
Max. torque of Gearbox	81000 N.m
Max. speed of Gearbox	30 rpm
Machine application	36~45 Ton

🔗

Connection Data

Frame connection diameter	420mm
Frame flange bolt	24-M20
Frame flange P.C.D.	460mm
Sprocket connection diameter	460mm
Sprocket flange bolt	24-M20
Sprocket flange P.C.D.	510mm
Flange distance	129mm
Approximate weight	520kg

📋

Summary & Compatibility

710 C2 K series Track Drive features similar dimensions to industry-leading brands, making it a versatile choice for the OEM and aftermarket sectors. It serves as a reliable replacement for Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, and Tong Myung.

Compatible Brands:

Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion, and other major excavators.

Frequently Asked Questions

What machinery is the 700C series travel drive compatible with?

The 700C series is designed for crawler excavators and track-driven machines ranging from 36 to 45 tons, including brands like Caterpillar, Komatsu, and Volvo.

Can this unit replace a Rexroth or Bonfiglioli final drive?

Yes, our 700C series has similar dimensions and specifications, making it an ideal replacement for major brands such as Rexroth, Bonfiglioli, Nachi, and KYB.

What are the main advantages of the A6VE piston motor?

The A6VE swash-plate piston motor offers high efficiency, a rugged design for heavy-duty applications, and high torque capacity in a compact size.

Does the gearbox include a braking system?

Yes, it works with a Rexroth A6VE cartridge axial piston motor which includes a failsafe parking brake for safety and precision.

Is there an option for easier machine transportation?

Yes, we offer an optional freewheel feature that allows for easier movement and transportation of the machine when required.

What is the maximum torque output for the 715 C3 B model?

The 715 C3 B model provides a maximum output torque of up to 81,500 Nm, suitable for high-load industrial environments.
