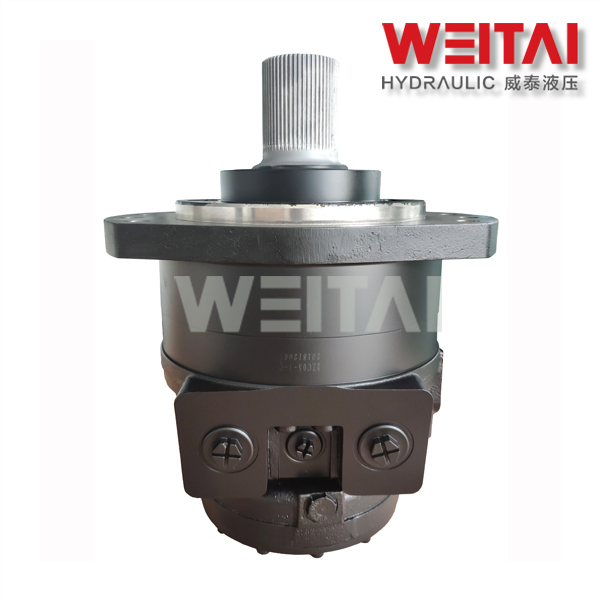

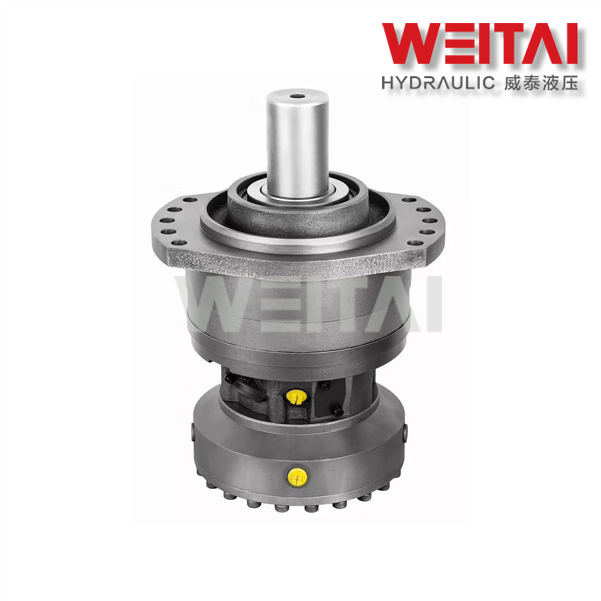

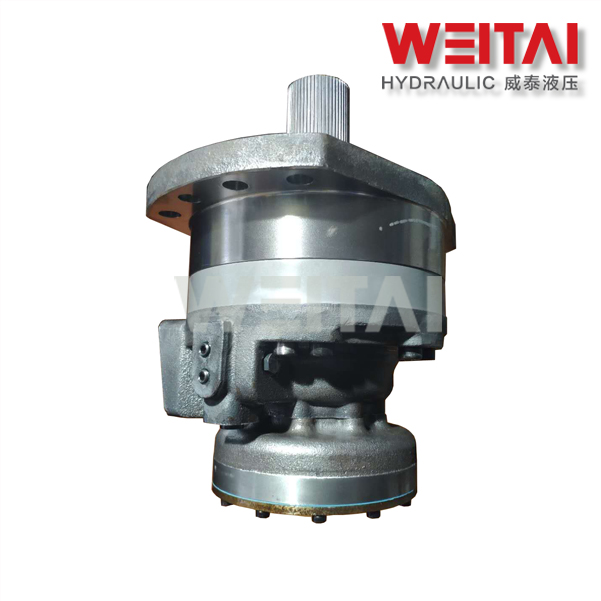

Model: MCR05A380 ~ MCR05A820 Perfectly replacement of Rexroth MCR-A series Hydraulic Motors. Radial piston structure for frame integrated drive. Displacement from 380~820cc/r. ANSI B92.1 and DIN 5480 splined drive shaft. For open or closed loop system. Widely used for Skid steer loaders, Mining machines, Mini Excavators, etc.

Send Inquiry

Product Description

Brief Introduction

MCR05A series Radial Piston Motor is a shaft drive motor mainly used for Skid Steer Loader, Rotary Drill Rig, Mini Excavator, Compact Loader, Coal Mining Machine, Road Header, Scraper, and other similar machines. With various spline shaft mounted attachment, it can achieve many types of applications such as gear drive, sprocket, and chain drive.

Key Features

Completely interchangeable with Rexroth MCR05A series Piston Motor.

It can be used in both open and closed loop circuit.

Double speed and Bi-directional working.

Compact structure and High efficiency.

High reliability and low maintenance.

Parking brake and Free-wheel function.

Optional Speed sensor.

Flushing valve is optional for closed circuit.

Specifications

Model	MCR05A
Displacement (ml/r)	380	470	520	565	620	680	750	820
Theo torque @ 10MPa (N.m)	604	747	826	890	985	1080	1192	1302
Rated speed (r/min)	160	125	125	125	125	100	100	100
Rated pressure (Mpa)	25	25	25	25	25	25	25	25
Rated torque (N.m)	1240	1540	1700	1850	2030	2230	2460	2690
Max. pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5
Max. torque (N.m)	1540	1900	2100	2290	2510	2750	3040	3320
Speed range (r/min)	0-475	0-385	0-350	0-320	0-290	0-265	0-240	0-220
Max. power (kW)	29	29	29	29	35	35	35	35

Advantage

In order to ensure the quality of our Hydraulic Motor, we adopt Full Automatic CNC Machining Centers to make our Hydraulic Motor Parts. The accuracy and uniformity of our Piston group, Stator, Rotor and other key parts are the same as Rexroth parts.

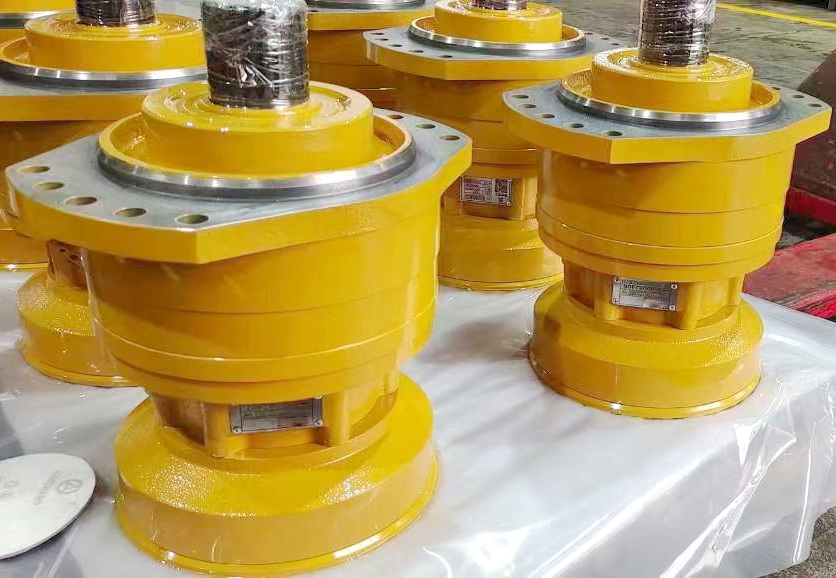

All our Hydraulic Motors are 100% inspected and tested after assembly. We also test the specifications, torque and efficiency of each motors before delivery.

We can also supply the inner parts of Rexroth MCR Motors and Poclain MS Motors. All our parts are completely interchangeable with your original Hydraulic Motors.

Frequently Asked Questions

What applications is the MCR05A series motor suitable for?

The MCR05A is ideal for Skid Steer Loaders, Rotary Drill Rigs, Mini Excavators, Compact Loaders, Coal Mining Machines, Road Headers, and Scrapers.

Is the MCR05A motor compatible with Rexroth models?

Yes, it is completely interchangeable with Rexroth MCR05A series piston motors in terms of both dimensions and performance.

Does this motor support both open and closed loop circuits?

Yes, the motor is designed to work efficiently in both open and closed loop hydraulic circuits.

What optional features are available for this motor?

Optional features include a speed sensor and a flushing valve, which is specifically recommended for closed circuit applications.

How is the quality and reliability of the motors ensured?

We use full automatic CNC machining for high precision parts and perform 100% inspection and testing on torque, efficiency, and specifications after assembly.

Can you provide spare parts for other motor brands?

Yes, we provide inner parts that are completely interchangeable with Rexroth MCR and Poclain MS series hydraulic motors.
