| Model |
Max Working Pressure |
Max. Output Torque |
Max. Output Speed |
Speed |
Oil Port |
Application |
| MAG-18V-350 |
21 MPa |
2900 N.m |
68 rpm |
2-speed |
4 ports |
2.5-3.5 Ton Excavator |
Brief Introduction

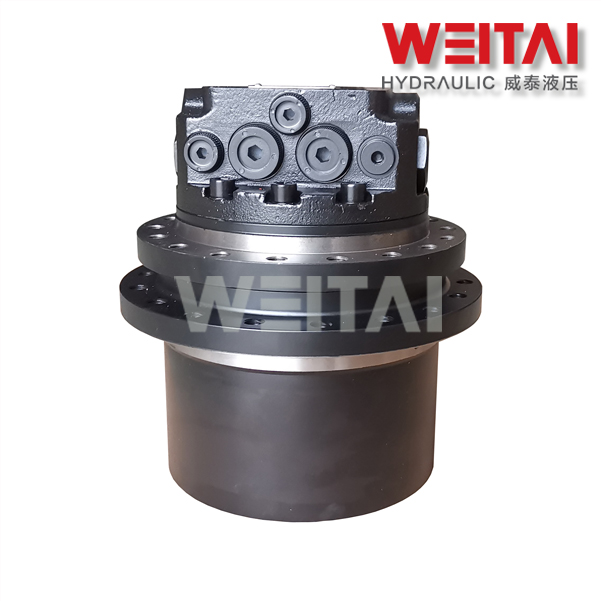

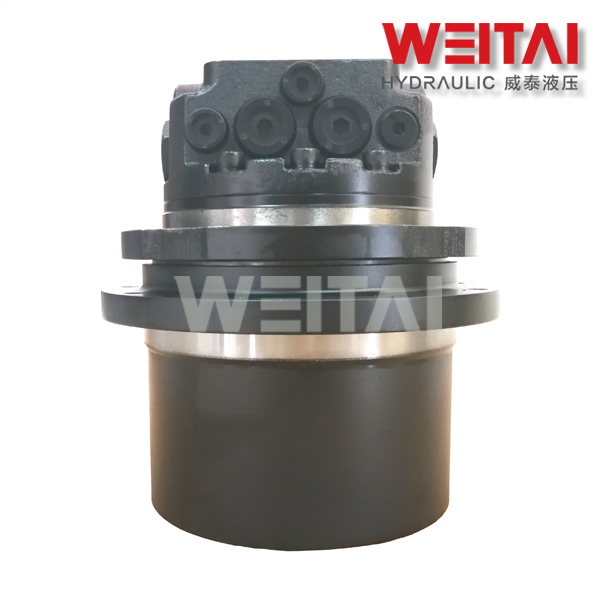

MAG-18V-350 Travel Motor is a medium-high torque motor for medium-slow speed crawler vehicle traveling. Combination of a case-rotation type simple planetary speed reducer and a swash plate motor, two-speed switching, and installation of parking brake are possible.
Summary
MAG series Hydraulic Final Drive Motor is with the similar dimensions with most of the famous brands in market such as Nachi Travel Motor, KYB Travel Motor, Eaton Track Drive, and other Final Drives. So it widely used in the OEM and aftersales market to replace Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, Tong Myung and other Hydraulic Final Drive Motors.
We are making the OEM Piston Motor of MAG-12V-120, MAG-18V-230, MAG-18V-350, MAG-26V-400, MAG-33V-650, MAG-50VP-900, MAG-85VP-1800, MAG-85VP-2400, MAG-170VP-3800 and MAG-180VP-6000.
Key Features
High efficiency swash-plate Piston Motor with planetary reducer.
Double speed Motor with large ration for widely usage.
Extremely compact volume and light weight.
Reliable quality and high durability.
Travels smoothly with very low noisy.
Freewheel design is optional.
Automatic speed changing function is optional.
Specifications
| Motor Displacement |
12/18 cc/r |
| Working pressure |
21 Mpa |
| 2-Speed control pressure |
2~7 Mpa |
| Ratio options |
48 |
| Max. torque of Gearbox |
2900 N.m |
| Max. speed of Gearbox |
68 rpm |
| Machine application |
2.5~3.5 Ton |
* Displacement and gear ratio can be made as required.
Connection Dimensions
| Frame flange orientation diameter |
165mm |
| Frame flange bolt pattern |
9-M12 Equally |
| Frame flange holes P.C.D. |
192mm |
| Sprocket flange orientation diameter |
190mm |
| Sprocket flange bolt pattern |
9-M10 Equally |
| Sprocket flange holes P.C.D. |
215mm |
| Flange distance |
50mm |
| Approximate weight |
40kg |
* Flange hole patterns can be made as required.
Frequently Asked Questions (FAQ)
1. What is the application range for the MAG-18V-350 Travel Motor?
The MAG-18V-350 is designed for 2.5 to 3.5 Ton excavators and medium-slow speed crawler vehicles.
2. Is it possible to replace other brands with the MAG series?
Yes, the MAG series features dimensions similar to famous brands like Nachi, KYB, Eaton, and Nabtesco, making them suitable for replacement in both OEM and aftersales markets.
3. Does this motor support dual-speed operation?
Yes, it features a double-speed motor with a large ratio and supports 2-speed switching for versatile usage.
4. Can I customize the gear ratio or displacement?
Yes, both the displacement and the gear ratio can be customized based on specific project requirements.
5. Does the travel motor include a braking system?
The MAG-18V-350 allows for the installation of a parking brake, ensuring safety and stability during operation.
6. Are customized flange hole patterns available?
Yes, flange hole patterns and connection dimensions can be manufactured as required to fit different machine frames.
