| Model |
Max Working Pressure |
Max. Output Torque |
Max. Output Speed |
Speed |
Oil Port |
Application |
| MAG-26V-400 |
21 MPa |
4200 N.m |
54 rpm |
2-speed |
4 ports |
3.5-4.5 Ton Excavator |
i Brief Introduction

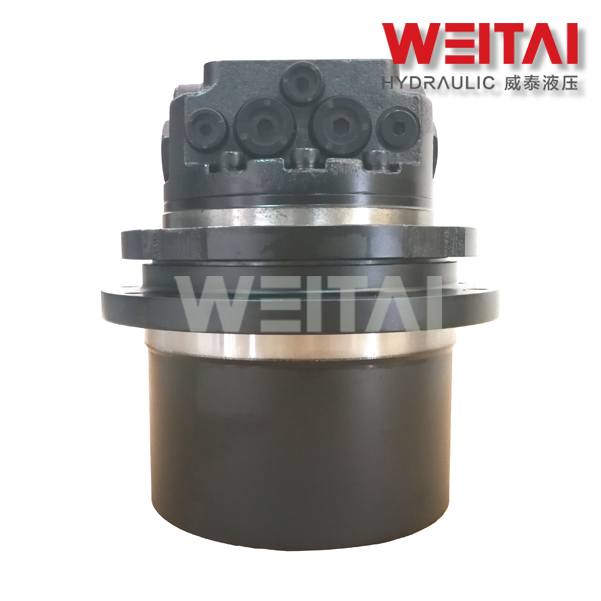

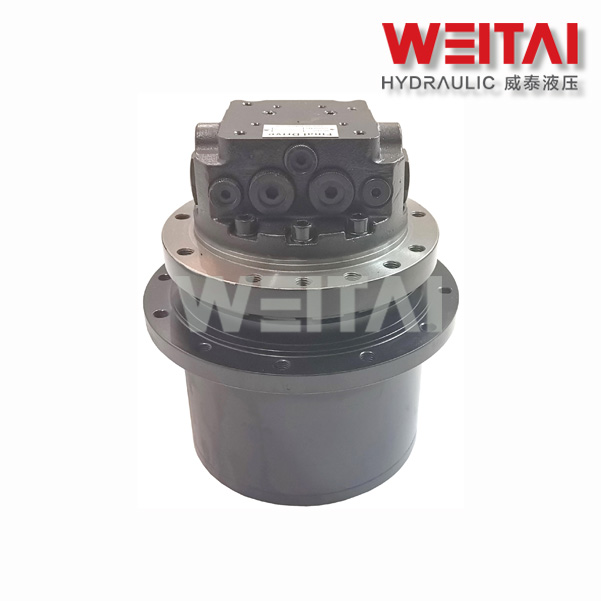

MAG-26V-4000 Travel Motor is a medium-high torque motor designed for medium-slow speed crawler vehicle traveling. This unit features a combination of a case-rotation type simple planetary speed reducer and a swash plate motor. It supports two-speed switching and allows for the installation of a parking brake.
★ Summary

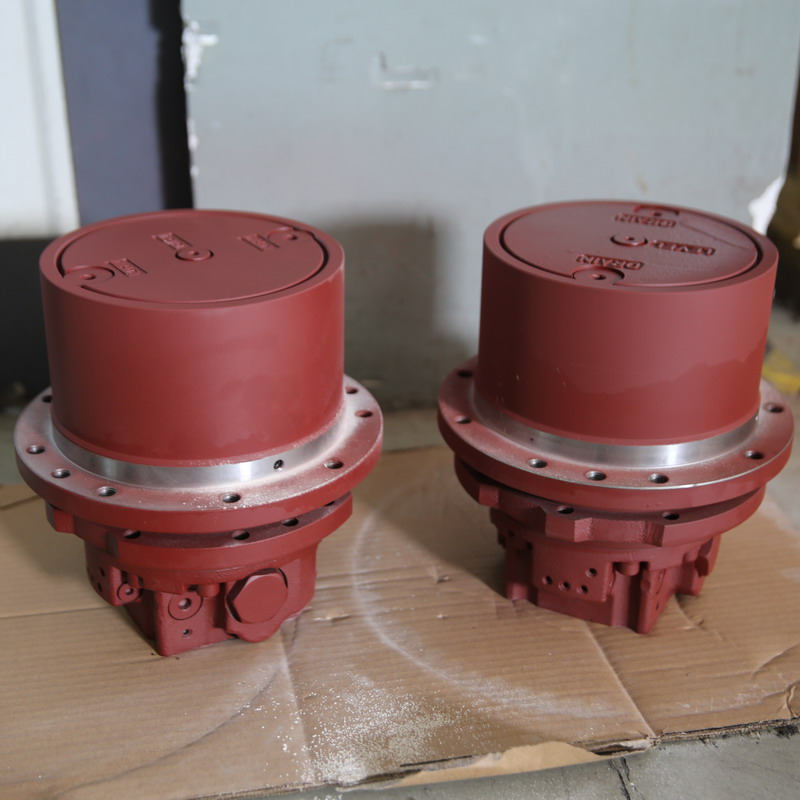

The MAG series Hydraulic Final Drive Motor features dimensions similar to major market brands such as Nachi Travel Motor, KYB Travel Motor, Eaton Track Drive, and other common Final Drives. It is widely utilized in both OEM and aftersales markets to replace brands like Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, and Tong Myung.
Available OEM Piston Motor models include: MAG-12V-120, MAG-18V-230, MAG-18V-350, MAG-26V-400, MAG-33V-650, MAG-50VP-900, MAG-85VP-1800, MAG-85VP-2400, MAG-170VP-3800, and MAG-180VP-6000.
⚙ Key Features
- High efficiency swash-plate Piston Motor with planetary reducer.
- Double speed Motor with large ratio for wide usage.
- Extremely compact volume and light weight.
- Reliable quality and high durability.
- Travels smoothly with very low noise.
- Freewheel design is optional.
- Automatic speed changing function is optional.
📋 Specifications
| Motor Displacement |
14/24 cc/r |
| Working pressure |
21 Mpa |
| 2-Speed control pressure |
2~7 Mpa |
| Ratio options |
52.7 |
| Max. torque of Gearbox |
4200 N.m |
| Max. speed of Gearbox |
54 rpm |
| Machine application |
3.5~4.5 Ton |
* Displacement and gear ratio can be customized as required.
📏 Connection Dimensions
| Frame flange orientation diameter |
165mm |
| Frame flange bolt pattern |
9-M12 Equally |
| Frame flange holes P.C.D. |
192mm |
| Sprocket flange orientation diameter |
210mm (204mm) |
| Sprocket flange bolt pattern |
12-M12 Equally |
| Sprocket flange holes P.C.D. |
232mm |
| Flange distance |
70mm |
| Approximate weight |
50kg |
* Flange hole patterns can be modified based on specific requirements.
FAQ
Q1: Which excavator models is the MAG-26V-400 suitable for?
A: It is specifically designed for excavators and crawler vehicles in the 3.5 to 4.5-ton range.
Q2: Is this motor compatible with other major brands?
A: Yes, it is designed with similar dimensions to replace famous brands like Nachi, KYB, Eaton, Nabtesco, and Rexroth.
Q3: Does the MAG-26V-400 support multiple speeds?
A: Yes, it is a 2-speed travel motor featuring high efficiency and a large ratio gearbox.
Q4: Can the displacement and gear ratio be customized?
A: Yes, both the displacement and the gear ratio can be manufactured according to specific client requirements.
Q5: What is the weight and build quality of this travel motor?
A: The motor weighs approximately 50kg and is built for high durability with a compact, lightweight design.
Q6: Are optional features like a parking brake available?
A: Yes, the design allows for the installation of a parking brake, and options for freewheel or automatic speed changing are also available.
