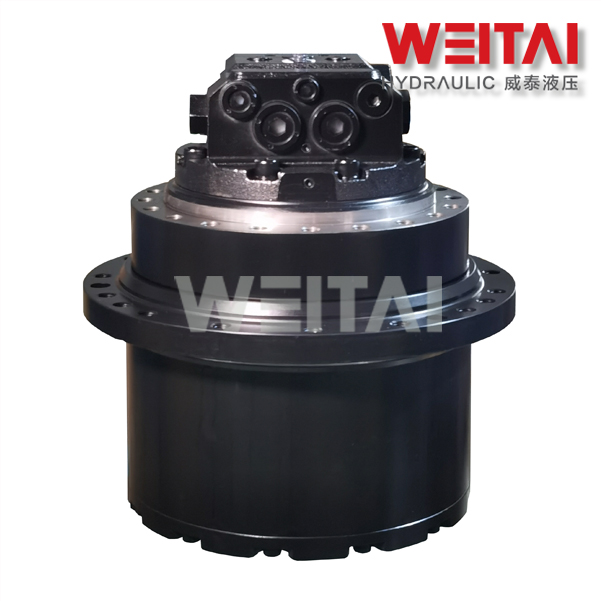

OEM Final Drive Motor MAG-230VP-6000 Manufacturers, Suppliers

Model No.: MAG-230VP-6000 30-35 ton Excavator Travel Motor. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with TM50VC, GM60VA, JMV155 and other Travel Motors.

Send Inquiry

Product Description

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
MAG-230VP-6000	34 MPa	6000 kgf.m	40 rpm	2-speed	4 ports	30-35 Ton

Key Features

✓ Swash-plate Axial Piston Motor with high efficiency.

✓ Double speed Motor with large ration for widely usage.

✓ Build-in parking brake for safety.

✓ Extremely compact volume and light weight.

✓ Reliable quality and high durability.

✓ Travel smoothly with very low noisy.

✓ Optional Free-wheel device.

✓ Automatic speed changing function is optional.

Brief Introduction

MAG-230VP-6000 Final Drive is consisted of a high efficiency double speed Swash-plate Piston Motor integrated with high strength planetary gearbox reducer. It is widely used for track driving Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.

Specifications

Motor Displacement	110/180 cc/r
Working pressure	34 Mpa
Speed control pressure	2~7 Mpa
Ratio options	65
Max. torque of Gearbox	6000 kgf.m
Max. speed of Gearbox	40 rpm
Machine application	30~35 Ton

Connection

Frame connection diameter	380mm
Frame flange bolt	26-M20
Frame flange P.C.D.	440mm
Sprocket connection diameter	450mm
Sprocket flange bolt	18-M24
Sprocket flange P.C.D.	492mm
Flange distance	102.5mm
Approximate weight	500kg

Summary & Compatibility

MAG-230VP-6000 Travel Motors are interchangeable with Doosan TM60, Kayaba MAG-230VP-6000, Nabtesco GM60VA and other similar size machines. It is suitable for most of the hydraulic Excavators in the market. Such as Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion and other main brand Excavators.

OEM Piston Motor models available: MAG-12V-120, MAG-18V-230, MAG-18V-350, MAG-26V-400, MAG-33V-650, MAG-50VP-900, MAG-85VP-1800, MAG-85VP-2400, MAG-170VP-3800 and MAG-180VP-6000.

Frequently Asked Questions

What size of excavator is the MAG-230VP-6000 suitable for?

This final drive is specifically designed for hydraulic excavators ranging from 30 to 35 tons.

Which major brands is this travel motor compatible with?

It is compatible with a wide range of brands including Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Volvo, JCB, Sany, and many others.

Does the motor include an integrated braking system?

Yes, it features a built-in parking brake to ensure safety during operation.

What are the main advantages of the swash-plate axial piston motor?

The swash-plate design offers high efficiency, high durability, and allows for a very compact volume and light weight.

Can this unit replace a Nabtesco or Kayaba motor?

Yes, the MAG-230VP-6000 is fully interchangeable with Nabtesco GM60VA and Kayaba MAG-230VP-6000 models.

What is the maximum torque and speed for this model?
