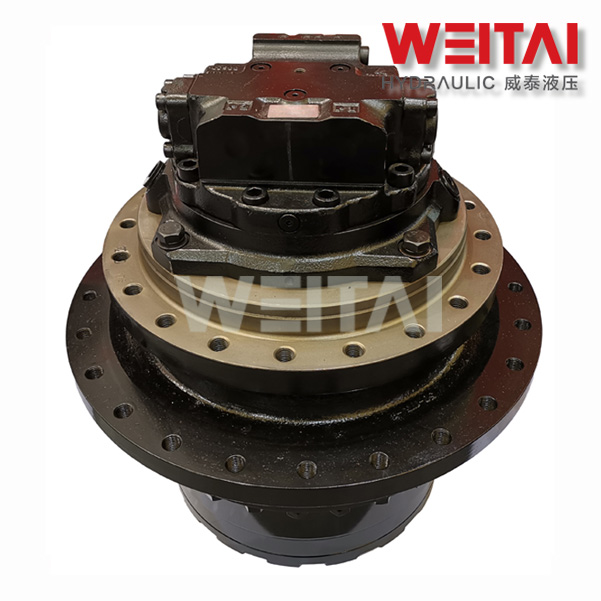

China Final Drive Motor MSF-340VP-110 Manufacturer, Supplier

Model No.: MSF-340VP-110 40-70 ton Excavator Travel Motor. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). MSF-340VP Travel Motor work with GFT Reducer.

Send Inquiry

Product Description

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
MSF-340VP-110	34 MPa	100000 kgf.m	34 rpm	2-speed	4 ports	36-50 Ton

Key Features

Swash-plate Axial Piston Motor with high efficiency.
Double speed Motor with large ration for widely usage.
Build-in parking brake for safety.
Extremely compact volume and light weight.
Reliable quality and high durability.
Travel smoothly with very low noisy.
Optional Free-wheel device.
Automatic speed changing function is optional.

Brief Introduction

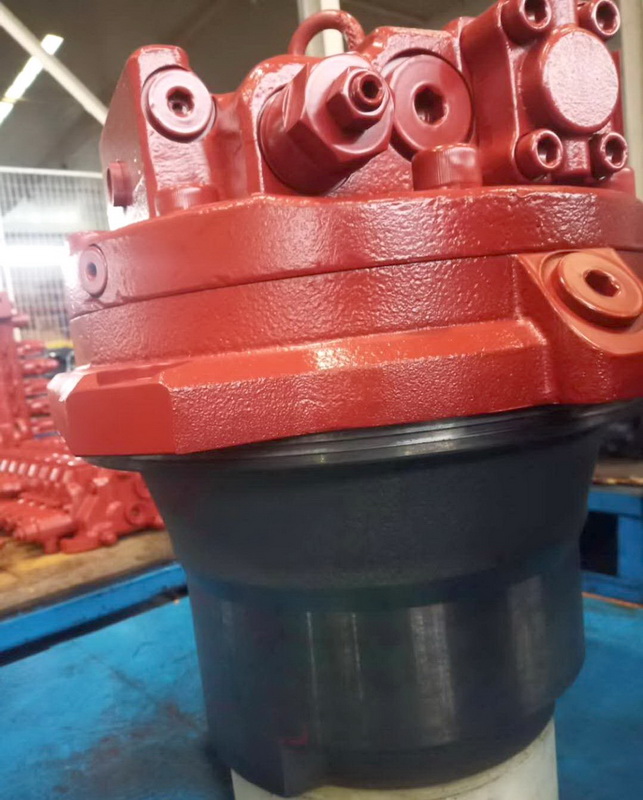

MSF-340VP Travel Motor is a high efficiency double speed Swash-plate Piston Motor. It can be used with GFT series planetary gearbox reducer. It is widely used for track driving Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.

Specifications

Motor Displacement	304/175 cc/r
Working pressure	34 Mpa
Speed control pressure	2~7 Mpa
Ratio options	60
Max. torque of Gearbox	10000 N.m
Max. speed of Gearbox	34 rpm
Machine application	36~50 Ton

Connection Dimensions

Frame connection diameter	420mm
Frame flange bolt	24-M24
Frame flange P.C.D.	470mm
Sprocket connection diameter	570mm
Sprocket flange bolt	24-M24
Sprocket flange P.C.D.	620mm
Flange distance	148mm
Approximate weight	720kg

Summary & Compatibility

MSF-340VP Travel Motors are interchangeable with Kayaba MSF-340VP and other similar size machines. It is suitable for most of the hydraulic Excavators in the market, including:

Airman Atlas Copco Bobcat Case Caterpillar Daewoo/Doosan Gehl Hitachi Hyundai IHI JCB John Deere Kobelco Komatsu Kubota Liebherr LiuGong Lonking Lovol Mitsubishi Nachi New Holland Nissan Pel Job Rexroth Samsung Sany Sandvik Schaeff SDLG Sumitomo Sunward Takeuchi Terex Wacker Neuson Wirtgen Volvo XCMG XGMA Yanmar Yuchai Zoomlion

Applications

Hitachi: ZX450-3, ZX470-3, ZX500-3, ZX520-3, ZX600, ZX650-3, ZX670-3, ZX850-3, ZX870-3

Komatsu: PC800-8E0, PC850-8E0, PC850-8R1, PC750-6, PC750-7K, PC750LC-7, PC800-6/7/8/8K, PC1250-7/8

Volvo: EC700, EC700BLC, EC700CL

Other Brands: Kobelco SK850, Sany SY850, Doosan DX700

Frequently Asked Questions

1. What tonnage of excavator is the MSF-340VP travel motor suitable for?

The MSF-340VP is specifically designed for large scale crawler equipment, typically ranging from 36 to 50 Ton excavators.

2. Is this motor compatible with other major brands?

Yes, it is designed to be interchangeable with Kayaba MSF-340VP and fits a wide variety of brands including Hitachi, Komatsu, Volvo, Kobelco, and Sany.

3. Does the motor support multiple speeds?

Yes, it is a high-efficiency double speed Swash-plate Piston Motor, and an automatic speed changing function is also available as an option.

4. What are the key safety features included?

The motor features a built-in parking brake to ensure safety during operation and while stationary.

5. Can this motor be used with planetary gearboxes?

Absolutely. The MSF-340VP can be integrated with GFT series planetary gearbox reducers for optimal driving performance.

6. What is the maximum working pressure for this model?

The MSF-340VP-110 model has a maximum working pressure rating of 34 MPa.
