China Final Drive Motor MAG-85VP-2400E Manufacturer, Manufacturers

Model No.: MAG-85VP-2400E 13-16 ton Excavator Travel Motor. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with TM24, GM24VA and other Travel Motors.

Send Inquiry

Product Description

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
MAG-85VP-2400E	34 MPa	24000 N.m	51 rpm	2-speed	4 ports	13-16 Ton

Key Features

Swash-plate Axial Piston Motor with high efficiency.

Double speed Motor with large ration for widely usage.

Build-in parking brake for safety.

Extremely compact volume and light weight.

Reliable quality and high durability.

Travel smoothly with very low noisy.

Optional Free-wheel device.

Automatic speed changing function is optional.

Brief Introduction

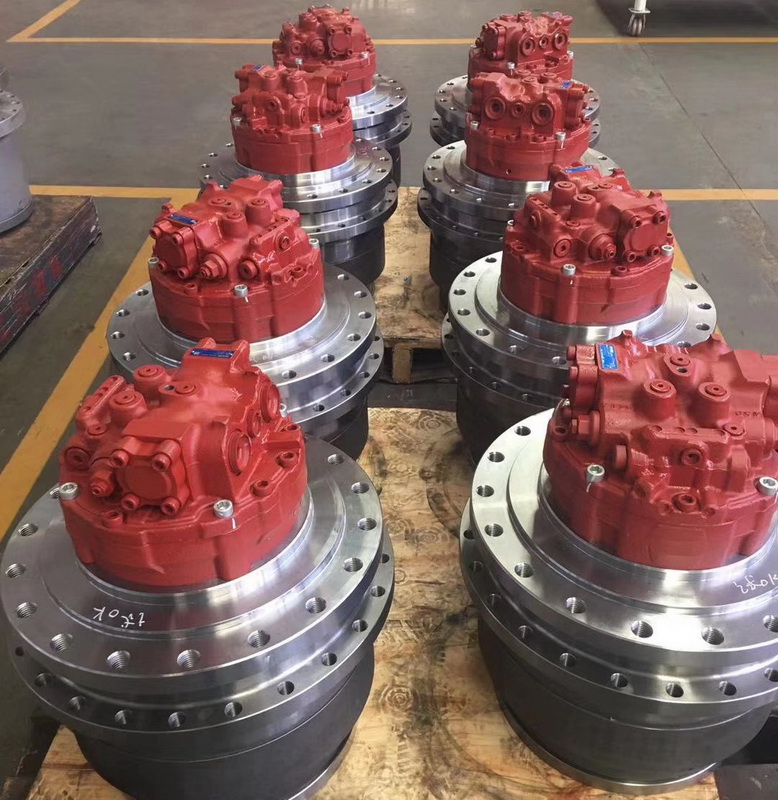

MAG-85VP-2400E Final Drive consists of a high efficiency double speed Swash-plate Piston Motor integrated with a high strength planetary gearbox reducer. It is widely used for 12-16 ton track driving Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.

Specifications

Motor Displacement	54/32 cc/r
Working pressure	34 Mpa
Speed control pressure	2~7 Mpa
Ratio options	53
Max. torque of Gearbox	24000 N.m
Max. speed of Gearbox	51 rpm
Machine application	13~16 Ton

Connection Data

Frame connection diameter	330mm
Frame flange bolt	16-M16
Frame flange P.C.D.	370mm
Sprocket connection diameter	365mm
Sprocket flange bolt	22-M16
Sprocket flange P.C.D.	405mm
Approximate weight	200kg

Interchangeability Summary

MAG-85VP-2400E Travel Motors are interchangeable with Doosan TM24, Kayaba MAG-85VP-2400, Nabtesco GM24VA and other similar size machines. It is suitable for most hydraulic Excavators in the market, including:

Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion and other major brands.

OEM Piston Motors available for: MAG-12V-120, MAG-18V-230, MAG-18V-350, MAG-26V-400, MAG-33V-650, MAG-50VP-900, MAG-85VP-1800, MAG-85VP-2400, MAG-170VP-3800 and MAG-180VP-6000.

Frequently Asked Questions

What is the machine application for MAG-85VP-2400E?

The MAG-85VP-2400E is designed for 13 to 16-ton track-driving excavators, drilling rigs, and other crawler equipment.

Is this final drive compatible with other major brands?

Yes, it is interchangeable with models like Doosan TM24, Kayaba MAG-85VP-2400, and Nabtesco GM24VA, making it suitable for most excavator brands such as Caterpillar, Komatsu, and Volvo.

What are the key technical advantages of this motor?

It features a high-efficiency swash-plate axial piston motor, double speed capability, a built-in parking brake for safety, and an extremely compact design.

What is the maximum output torque and speed?

The motor provides a maximum output torque of 24,000 N.m and a maximum output speed of 51 rpm.

Are there any optional functions available?

Yes, optional features include a free-wheel device and an automatic speed-changing function.

What is the working pressure for this model?

The standard working pressure for the MAG-85VP-2400E is 34 MPa.
