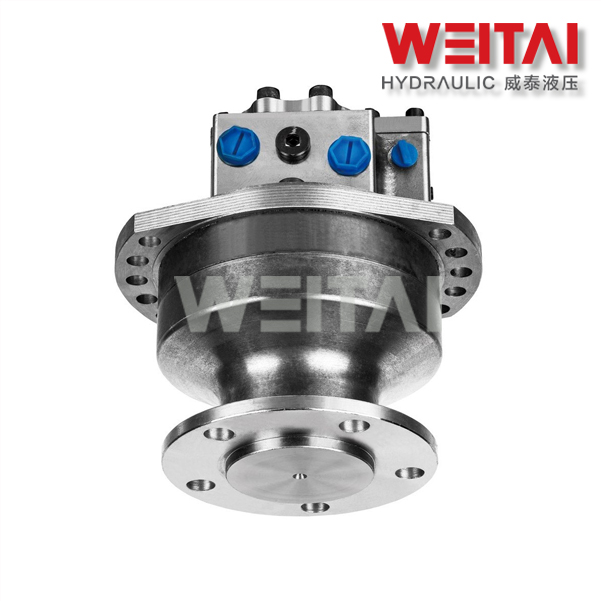

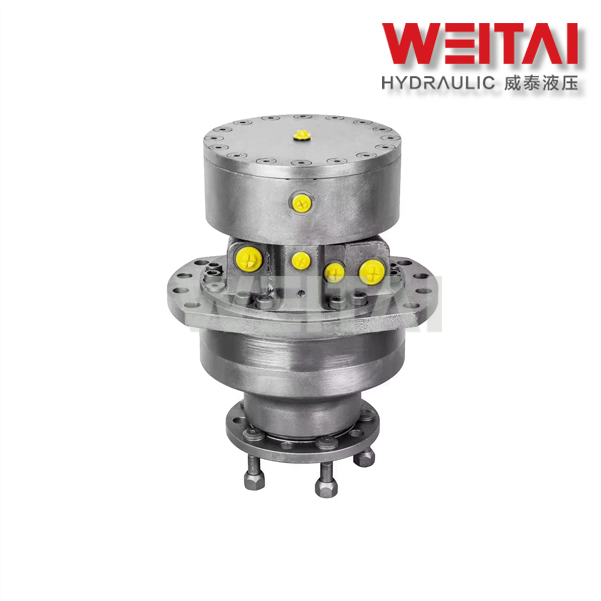

MCR05F series Radial Piston Motor is a Wheel drive motor mainly used for agricultural machinery, municipal vehicles, forklift trucks, forestry machinery, and other similar machines. The integrated flange with wheel studs allows easy installation of standard wheel rims.
✓Completely interchangeable with Rexroth MCR05F series.
✓Applicable for both open and closed loop circuits.
✓Double speed and Bi-directional working capability.
✓Compact structure with high mechanical efficiency.
✓High reliability and extremely low maintenance.
✓Integrated parking brake and free-wheel function.
✓Optional Speed sensor and Flushing valve.
| Model |
MCR05F |
| Displacement (ml/r) |
380 | 470 | 520 | 565 | 620 | 680 | 750 | 820 |
| Theo torque @ 10MPa (N.m) |
604 | 747 | 826 | 890 | 985 | 1080 | 1192 | 1302 |
| Rated speed (r/min) |
160 | 125 | 125 | 125 | 125 | 100 | 100 | 100 |
| Rated pressure (Mpa) |
25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque (N.m) |
1240 | 1540 | 1700 | 1850 | 2030 | 2230 | 2460 | 2690 |
| Max. pressure (Mpa) |
31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max. torque (N.m) |
1540 | 1900 | 2100 | 2290 | 2510 | 2750 | 3040 | 3320 |
| Speed range (r/min) |
0-475 | 0-385 | 0-350 | 0-320 | 0-290 | 0-265 | 0-240 | 0-220 |
| Max. power (kW) |
29 | 29 | 29 | 29 | 35 | 35 | 35 | 35 |
To ensure the highest quality, we utilize Full Automatic CNC Machining Centers for the production of our Hydraulic Motor Parts. The precision and uniformity of the Piston group, Stator, Rotor, and other key components meet the same rigorous standards as original Rexroth parts.
Every Hydraulic Motor undergoes 100% inspection and testing after assembly. We strictly verify specifications, torque, and efficiency for each unit prior to delivery to guarantee performance.
The inner parts for Rexroth MCR Motors and Poclain MS Motors are available and completely interchangeable with original equipment. These precision-engineered components provide a cost-effective solution for maintenance and repair.
Frequently Asked Questions
What applications is the MCR05F motor suitable for?
It is primarily designed for wheel drive applications in agricultural machinery, municipal vehicles, forklift trucks, and forestry equipment.
Is the MCR05F motor compatible with Rexroth series?
Yes, our MCR05F series is completely interchangeable with Rexroth MCR05F series piston motors in terms of both performance and mounting dimensions.
Can this motor operate in a closed loop circuit?
Yes, it is designed to work efficiently in both open and closed loop hydraulic circuits.
Does the motor include a braking function?
The MCR05F features an integrated parking brake and also includes a free-wheel function for versatile operation.
How is the quality of the components ensured?
Key parts like the stator and rotor are manufactured using fully automatic CNC centers, followed by 100% inspection and performance testing after assembly.
Are replacement parts available for other brands?
Yes, we provide inner parts that are fully interchangeable with Rexroth MCR and Poclain MS series motors.
