OEM MCR03F Wheel Drive Motor Supplier, Factory

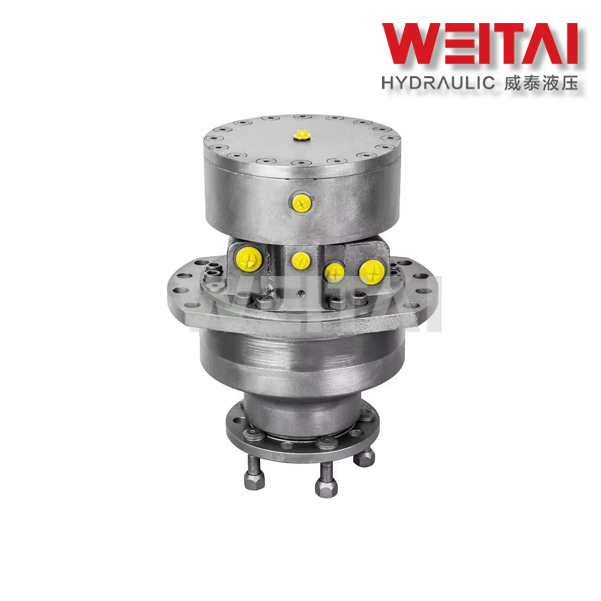

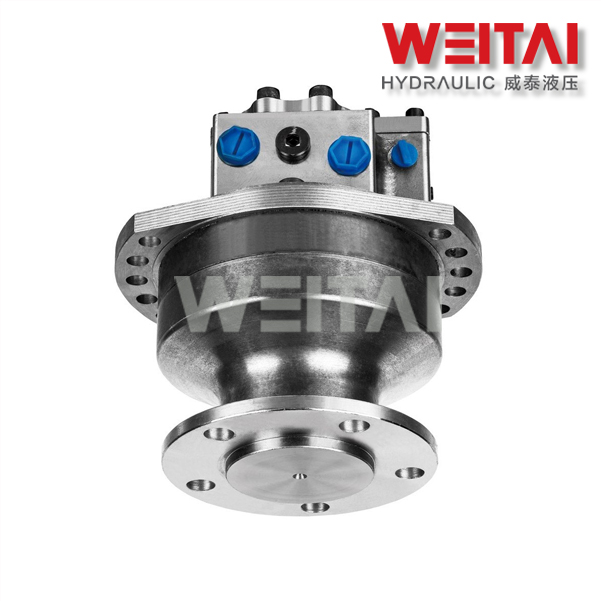

Model: MCR03F160 ~ MCR03F400 Perfectly replacement of Rexroth MCR-F series Hydraulic Motors. Radial piston structure for Wheel drive. Displacement from 160~400cc/r. For open or closed loop system. Widely used for wheel drive machinery.

Send Inquiry

Product Description

■ Brief Introduction

MCR03F series Radial Piston Motor is a Wheel drive motor mainly used for agricultural machinery, municipal vehicles, forklift trucks, forestry machinery, and other similar machines. The integrated flange with wheel studs allows easy installation of standard wheel rims.

■ Key Features

✓ Completely interchangeable with Rexroth MCR03F series Piston Motor.

✓ Can be used in both open and closed loop circuit.

✓ Double speed and Bi-directional working.

✓ Compact structure and High efficiency.

✓ High reliability and low maintenance.

✓ Parking brake and Free-wheel function.

✓ Optional Speed sensor and Flushing valve for closed circuit.

■ Specifications

Model	MCR03F
Displacement (ml/r)	160	225	225	280	325	365	400
Theoretical torque at @ 10MPa (N.m)	245	357	405	445	516	580	636
Rated speed (r/min)	250	160	160	125	160	125	125
Rated pressure (Mpa)	25	25	25	25	25	25	25
Rated torque (N.m)	530	740	830	920	1060	1200	1310
Max. pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5
Max. torque (N.m)	650	910	1030	1130	1310	1470	1620
Speed range (r/min)	0-670	0-475	0-420	0-385	0-330	0-295	0-270
Max. power (kW)	18	18	18	18	22	22	22

■ Advantage

In order to ensure the quality of our Hydraulic Motor, we adopt Full Automatic CNC Machining Centers to make our Hydraulic Motor Parts. The accuracy and uniformity of our Piston group, Stator, Rotor and other key parts are the same as Rexroth parts. All our Hydraulic Motors are 100% inspected and tested after assembly. We also test the specifications, torque and efficiency of each motor before delivery.

Inner parts of Rexroth MCR Motors and Poclain MS Motors are also available. All parts are completely interchangeable with your original Hydraulic Motors.

Frequently Asked Questions

Q1: Which machines are MCR03F series motors suitable for? A: They are primarily designed for wheel drive applications in agricultural machinery, municipal vehicles, forklift trucks, and forestry equipment.

Q2: Can this motor replace a Rexroth MCR03F directly? A: Yes, our MCR03F series is completely interchangeable with the original Rexroth MCR03F series in terms of specifications and mounting.

Q3: Does the motor support two-speed operation? A: Yes, it features double speed capabilities and bi-directional working functions for versatile operation.

Q4: What is the maximum operating pressure for these motors? A: The rated pressure is 25 MPa, while the maximum intermittent pressure can reach up to 31.5 MPa.

Q5: Are replacement parts available for maintenance? A: Yes, we provide all inner parts (Piston group, Stator, Rotor, etc.) which are fully interchangeable with Rexroth MCR and Poclain MS series.

Q6: How is the quality of the motors ensured? A: All components are produced via Full Automatic CNC Machining and every motor undergoes 100% inspection and testing for torque and efficiency before delivery.
