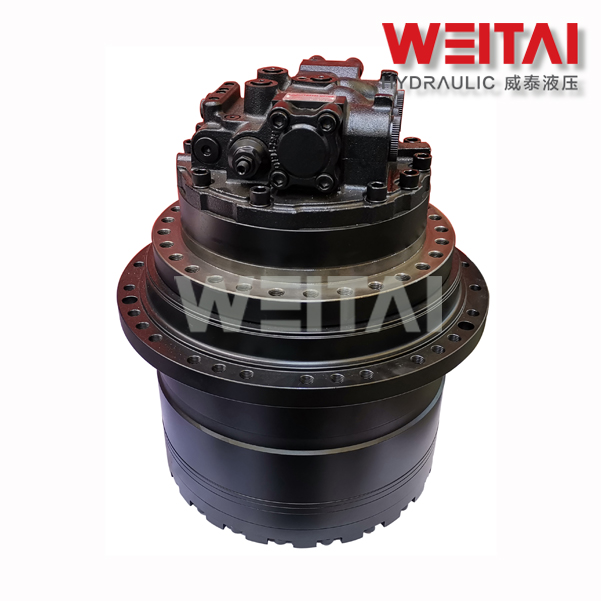

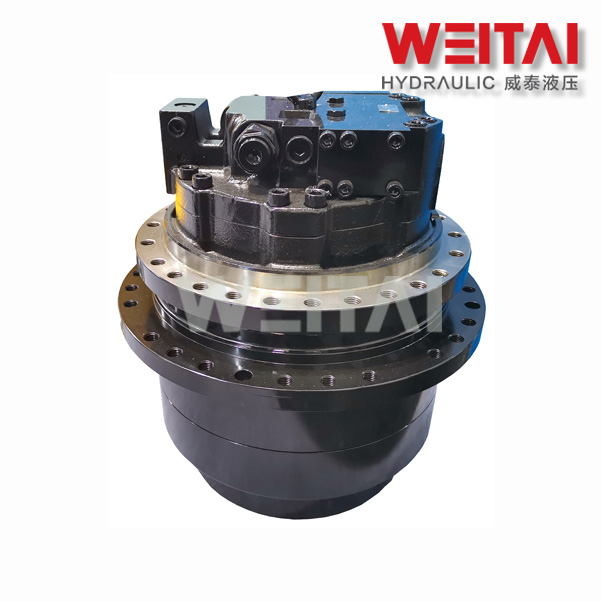

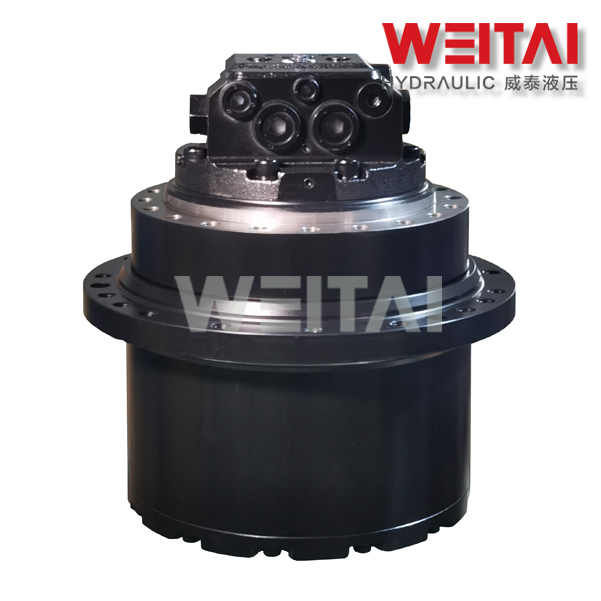

OEM Track Drive Motor JMV173 Suppliers, Factory

Model No.: JMV173
13-15 ton Mini Excavator Final Drive.
OEM quality with One Year warranty.
Quickly delivery within 3 days (standard models).
Interchangeable with Eaton JMV173 Track Motors.

Send Inquiry

Product Description

Video Display

Model	Max Output Torque (Nm)	Max Working Pressure (Mpa)	Max Output Speed (r/min)	Applicable Tonnage (T)
JMV173	65000	34	40	32-36T

Brief Introduction

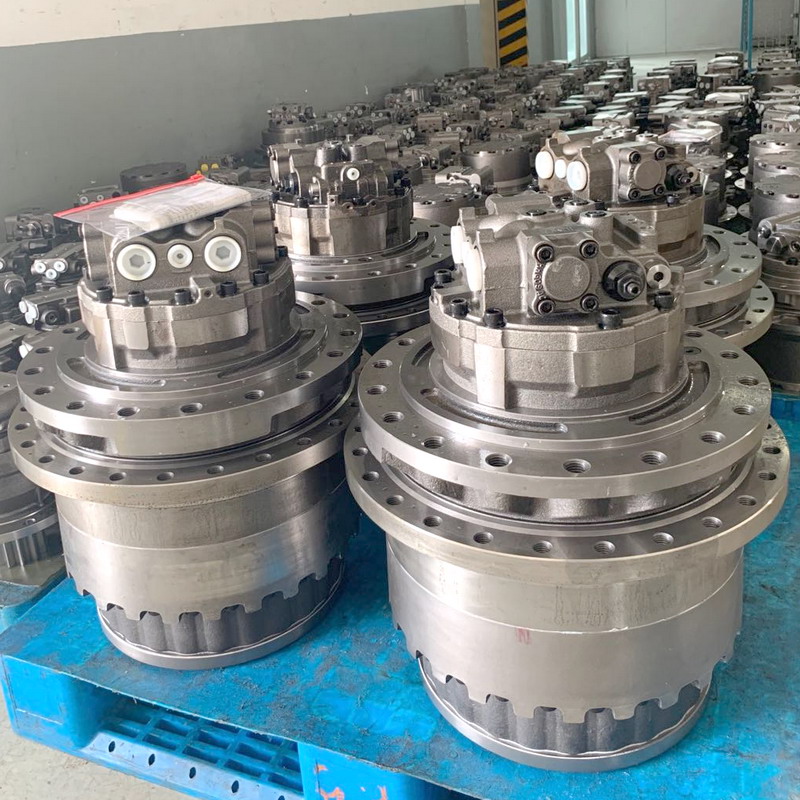

JMV series Track Drive Motor is consisted of JMV Axial Piston Motor integrated with high strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipments.

Key Features

Integrated gearbox with 2-speed Axial Piston Motor

Rated pressure up to 365 bar

Displacement: 16cc ~ 274cc

Suitable for 1.5 ton ~ 50 ton mobile applications

Integrated Relief and Counterbalance valves

Integrated fail-safe mechanical Parking Brake

Higher mechanical and volumetric efficiency helps reduce power loss

Improved design for higher start up torque and overall efficiency

Optimum design ensures smooth start/accelerate and decelerate/stop

Compact design with high power density

Auto-shift from high-speed low torque to low-speed high torque

High performance and reliability with over half million units in the field

Compatible fit for most popular installation requirements

Specifications (JMV155)

Model	JMV155
Motor Displacement	180/110 cc/r
Working pressure	34Mpa
Speed control pressure	2~7 Mpa
Ratio options	65
Max. torque of Gearbox	42000 N.m
Max. speed of Gearbox	42 rpm
Machine application	30~35 Ton

Connection Details

Frame connection diameter	380 mm
Frame flange bolt	26-M20
Frame flange P.C.D.	440 mm
Sprocket connection diameter	450 mm
Sprocket flange bolt	18-M24
Sprocket flange P.C.D.	492 mm
Flange distance	102.5 mm
Approximate weight	380 kg

Typical Applications

Excavator and mini excavator

Crawler crane

Winch

Aerial working platform

Grasper

Rotary drilling

Horizontal directional drilling

Crusher

Asphalt milling

Special crawler vehicle

Frequently Asked Questions

What is the JMV series Track Drive Motor?

The JMV series is an integrated solution consisting of an axial piston motor and a high-strength planetary gearbox, specifically designed for crawler-driven equipment.

What machine tonnages are these motors suitable for?

These motors are versatile and suitable for a wide range of mobile applications ranging from 1.5 tons up to 50 tons.

Does the motor include safety features like brakes?

Yes, it includes an integrated fail-safe mechanical parking brake as well as relief and counterbalance valves for enhanced safety and control.

Can the motor handle automatic speed shifts?

Yes, the JMV motor features an auto-shift function that transitions from high-speed low torque to low-speed high torque when encountering high travelling resistance.

What is the maximum rated pressure for these motors?

The JMV series track drive motors are designed to handle rated pressures up to 365 bar.

Are these motors compatible with common market installations?

Yes, the design ensures a compatible fit for most popular installation requirements found in the current market.
