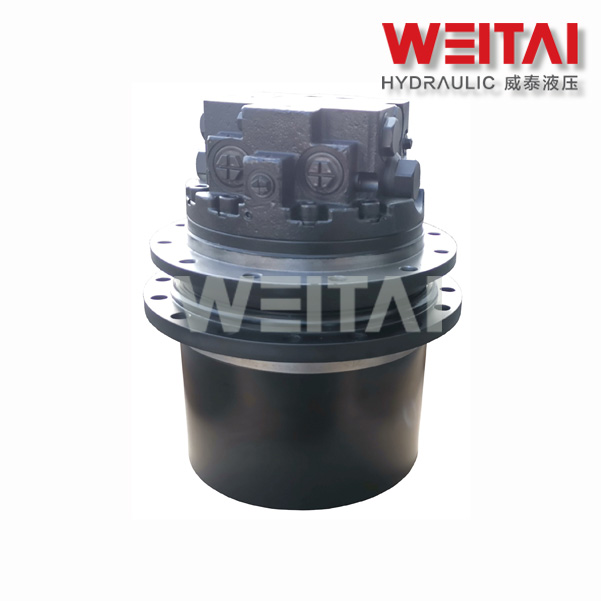

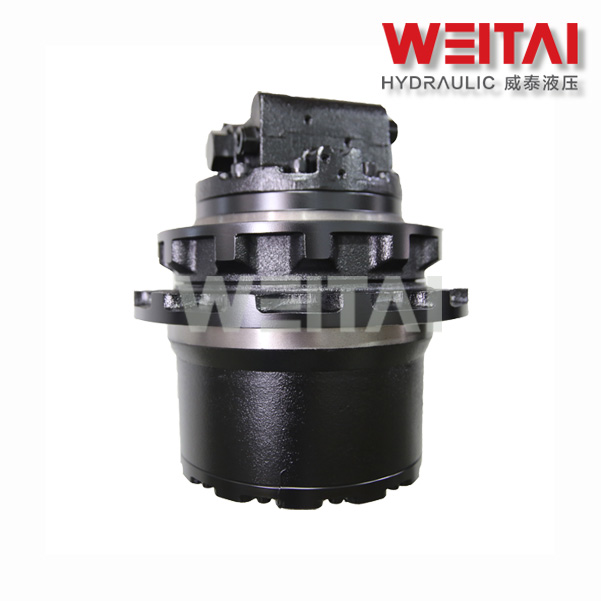

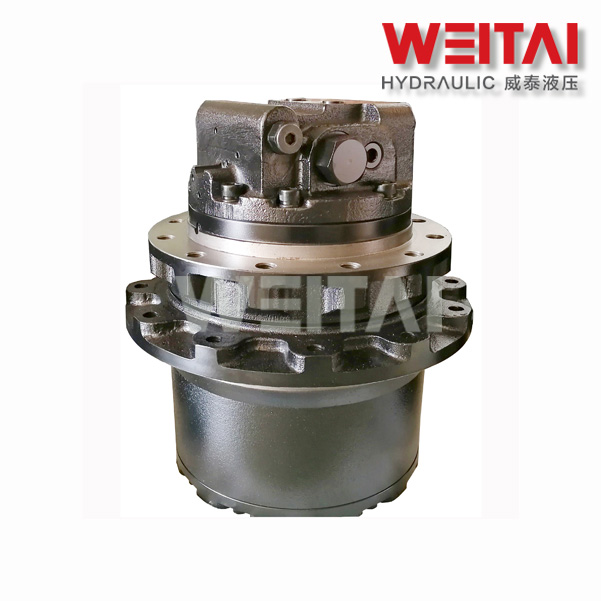

OEM Track Drive Motor JMV053 Suppliers, Factory

Model No.: JMV053 7-9 ton Mini Excavator Final Drive. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with Eaton JMV053 Track Motors.

Send Inquiry

Product Description

⚡ Video Display

Model	Max Output Torque (Nm)	Max Working Pressure (Mpa)	Max Output Speed (r/min)	Applicable Tonnage (T)
JMV053	11700	27	51	7-9T

📌 Brief Introduction

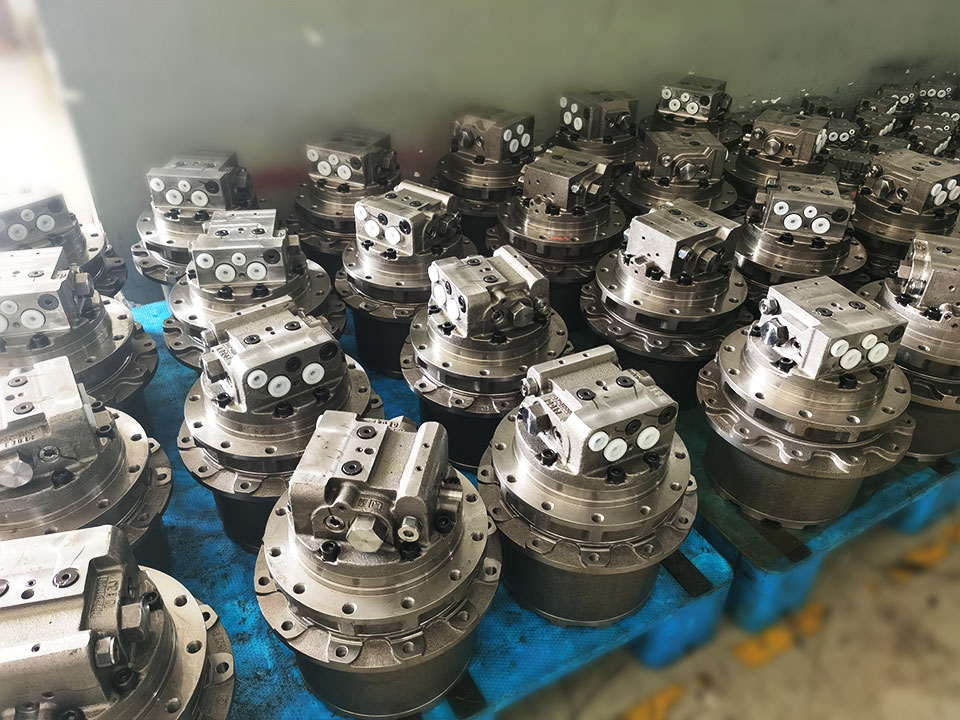

JMV series Track Drive Motor consists of a JMV Axial Piston Motor integrated with a high-strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipments.

⚙ Features

Integrated gearbox with 2-speed Axial Piston Motor
Rated pressure up to 365 bar
Displacement: 16cc ~ 274cc
Suitable for 1.5 ton ~ 50 ton mobile applications
Integrated Relief and Counterbalance valves
Integrated fail-safe mechanical Parking Brake
Higher mechanical and volumetric efficiency helps reduce power loss
Improved design for higher start up torque and overall efficiency
Optimum design ensures smooth start/accelerate and decelerate/stop
Compact design with high power density
Auto-shift from high-speed low torque to low-speed high torque at high travelling resistance
High performance and reliability, high market acceptance with over half million units in the field
Compatible fit for most popular installation requirements in the market

📊 Specifications

Model	JMV053
Motor Displacement	53/34 cc/r
Working pressure	27.5 Mpa
Speed control pressure	2~7 Mpa
Ratio options	45.6
Max. torque of Gearbox	11500 N.m
Max. speed of Gearbox	51 rpm
Machine application	7~9 Ton

🔌 Connection Data

Frame connection diameter	210 mm
Frame flange bolt	12-M16
Frame flange P.C.D.	250 mm
Sprocket connection diameter	265 mm
Sprocket flange bolt	12-M14
Sprocket flange P.C.D.	300 mm
Flange distance	80 mm
Approximate weight	90 kg

🛠 Summary & Applications

Typical Applications include:

Excavator and mini excavator
Crawler crane
Winch
Aerial working platform
Grasper
Rotary drilling
Horizontal directional drilling
Crusher
Asphalt milling
Special crawler vehicle

❓ Frequently Asked Questions

What applications are JMV series Track Drive Motors suitable for?

JMV motors are ideal for mini excavators, crawler cranes, drilling rigs, aerial working platforms, and various other crawler-based machinery ranging from 1.5 to 50 tons.

Does the motor include integrated braking systems?

Yes, the JMV series features an integrated fail-safe mechanical parking brake along with integrated relief and counterbalance valves for enhanced safety and control.

How does the auto-shift function improve performance?

The motor automatically shifts from high-speed low torque to low-speed high torque when it encounters high travelling resistance, optimizing efficiency during operation.

What is the maximum working pressure for the JMV053 model?

The JMV053 model has a rated working pressure of 27.5 Mpa, making it robust for medium-sized crawler equipment.

Are these motors compatible with standard market installations?

Absolutely. The JMV series is designed for compatible fitment with the most popular installation requirements found in the global market.

What components make up the JMV series Track Drive?

It consists of a high-efficiency JMV Axial Piston Motor integrated with a high-strength planetary gearbox for maximum power density and reliability.
