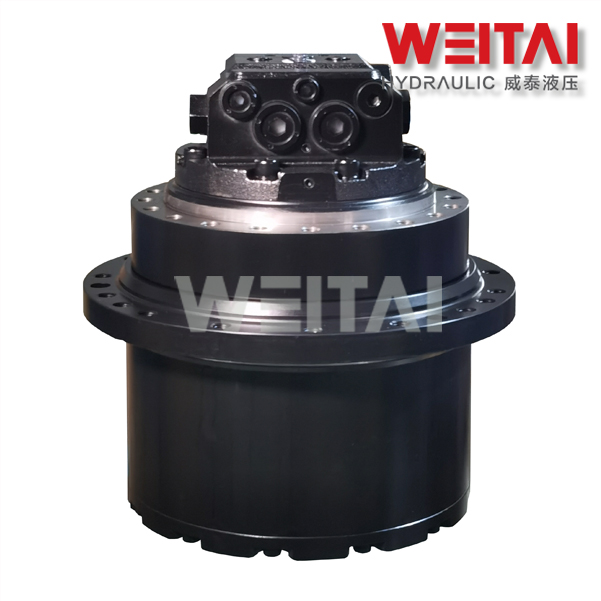

OEM Track Drive Motor JMV155 Manufacturers, Supplier
Model No.: JMV155
13-15 ton Mini Excavator Final Drive.
OEM quality with One Year warranty.
Quickly delivery within 3 days (standard models).
Interchangeable with Eaton JMV155 Track Motors.

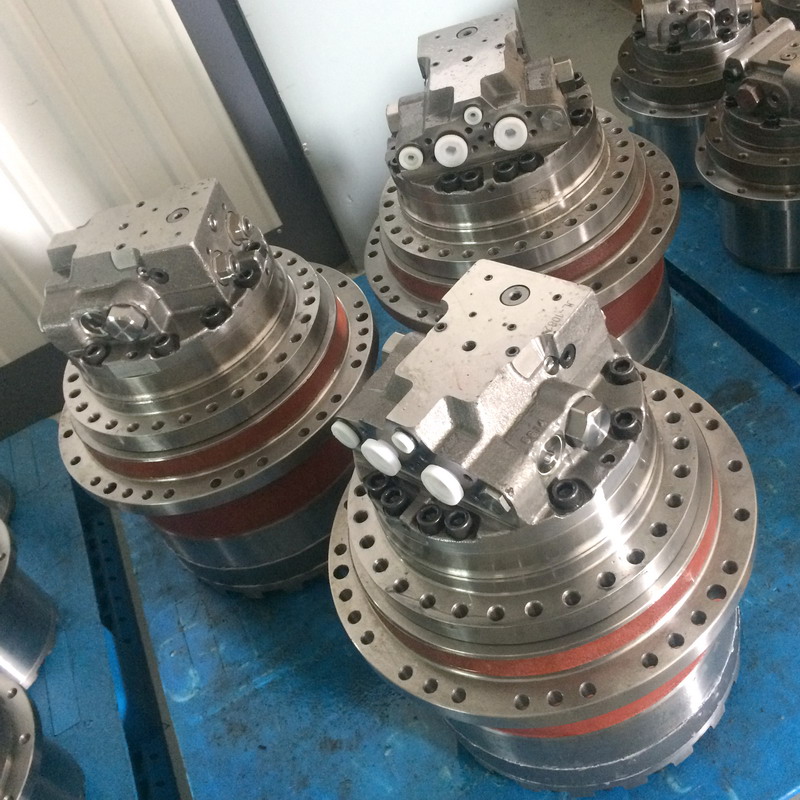

JMV series Track Drive Motor is consisted of JMV Axial Piston Motor integrated with high strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipments.
Key Features
Integrated gearbox with 2-speed Axial Piston Motor
Rated pressure up to 365 bar
Displacement: 16cc ~ 274cc
Suitable for 1.5 ton ~ 50 ton mobile applications
Integrated Relief and Counterbalance valves
Integrated fail-safe mechanical Parking Brake
Higher mechanical and volumetric efficiency helps reduce power loss
Improved design for higher start up torque and overall efficiency
Optimum design ensures smooth start/accelerate and decelerate/stop
Compact design with high power density
Auto-shift from high-speed low torque to lowspeed high torque at high travelling resistance
High performance and reliability with over half million units in field
Compatible fit for most popular installation requirements
Detailed Specifications
Model
JMV155
Motor Displacement
180/110 cc/r
Working Pressure
34 Mpa
Speed Control Pressure
2~7 Mpa
Ratio Options
65
Max. Torque of Gearbox
42000 N.m
Max. Speed of Gearbox
42 rpm
Machine Application
30~35 Ton
Connection Parameters
Frame connection diameter
380 mm
Frame flange bolt
26-M20
Frame flange P.C.D.
440 mm
Sprocket connection diameter
450 mm
Sprocket flange bolt
18-M24
Sprocket flange P.C.D.
492 mm
Flange distance
102.5 mm
Approximate weight
380 kg
Typical Applications
Excavator and mini excavator
Crawler crane
Winch systems
Aerial working platform
Grasper and Rotary drilling
Horizontal directional drilling
Crusher and Asphalt milling
Special crawler vehicle
FAQ
1. What is the JMV series track drive motor?
The JMV series is a high-performance track drive motor consisting of an axial piston motor integrated with a high-strength planetary gearbox, designed for various crawler equipment.
2. Which machine weight class is the JMV155 suitable for?
The JMV155 model is specifically optimized for machines in the 30 to 35-ton range, providing high torque and reliability for large-scale operations.
3. Does it feature an automatic speed shifting function?
Yes, it includes an auto-shift feature that transitions from high-speed/low-torque to low-speed/high-torque when encountering high traveling resistance.
4. What integrated safety valves are included?
The motor comes with integrated Relief valves and Counterbalance valves, along with a fail-safe mechanical parking brake for enhanced safety.
5. Can this motor be used in drilling rigs?
Absolutely. Besides excavators, it is widely used in rotary drilling rigs, horizontal directional drilling (HDD), and mining equipment.
6. Is the design compatible with standard market installations?
Yes, the compact design is engineered to be compatible with the most popular installation requirements currently found in the global market.
