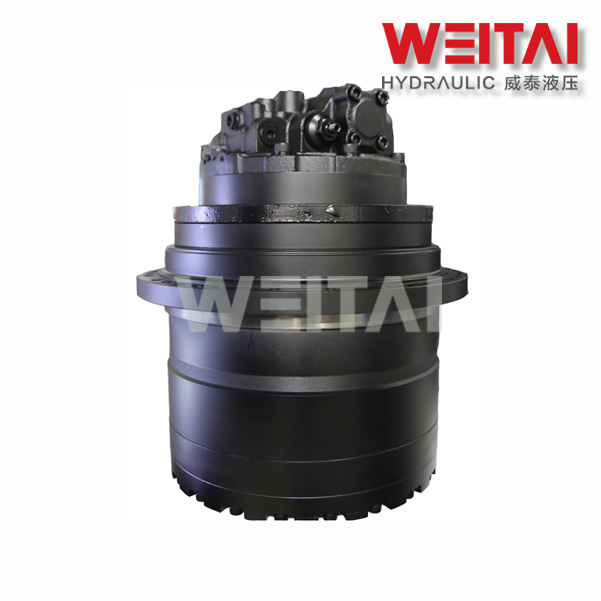

OEM Track Drive Motor JMV076 Manufacturer, Suppliers

Model No.: JMV076 13-15 ton Mini Excavator Final Drive. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with Eaton JMV076 Track Motors.

Send Inquiry

Product Description

Video Display

Model	Max Output Torque (Nm)	Max Working Pressure (Mpa)	Max Output Speed (r/min)	Applicable Tonnage (T)
JMV076	23500	34	51	13-15T

Brief Introduction

JMV series Track Drive Motor is consisted of JMV Axial Piston Motor integrated with high strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipments.

Key Features

Integrated gearbox with 2-speed Axial Piston Motor

Rated pressure up to 365 bar

Displacement: 16cc ~ 274cc

Suitable for 1.5 ton ~ 50 ton mobile applications

Integrated Relief and Counterbalance valves

Integrated fail-safe mechanical Parking Brake

Higher mechanical and volumetric efficiency helps reduce power loss

Improved design for higher start up torque and overall efficiency

Optimum design ensures smooth start/accelerate and decelerate/stop

Compact design with high power density

Auto-shift from high-speed low torque to low-speed high torque

Compatible fit for most popular installation requirements

Technical Specifications

Model	JMV076
Motor Displacement	82/54 cc/r
Working pressure	34Mpa
Speed control pressure	2~7 Mpa
Ratio options	53.7
Max. torque of Gearbox	24000 N.m
Max. speed of Gearbox	51 rpm
Machine application	13~15 Ton

Connection Dimensions

Frame connection diameter	246 mm
Frame flange bolt	20-M16
Frame flange P.C.D.	280 mm
Sprocket connection diameter	324 mm
Sprocket flange bolt	18-M16
Sprocket flange P.C.D.	364 mm
Flange distance	100 mm
Approximate weight	150 kg
