Brief Introduction

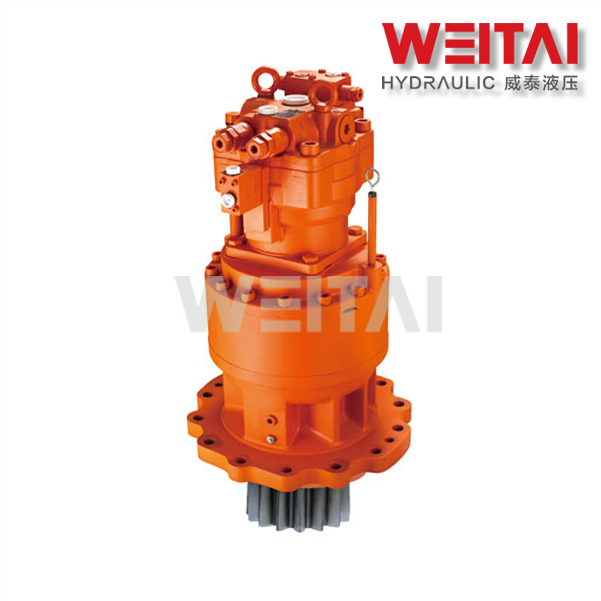

M5X series Swing Motors are swash plate type piston motors developed for application to swinging operation of construction machines. These units are engineered with a built-in mechanical brake, a relief valve, and a make-up valve for superior performance and safety.
| Model |
Max Working Pressure |
Max. Output Torque |
Max. Output Speed |
Application |
| M5X180-25 |
32 MPa |
23480 N.m |
67 rpm |
25.0-30.0 Ton |
Features
High efficiency swash plate type piston motor.
Extraordinarily compact design for easy installation.
Integrated built-in mechanical brake part.
Built-in relief valve for pressure protection.
Optimized specifically for swinging operations.
Interchangeable with Kawasaki M2X180CHB-RG16D and M2X180CHB-RG20D.
Specifications
| Model: |
M5X180-25 |
| Max. Input Flow: |
240L/min |
| Motor Displacement: |
180cc/r |
| Max. Working Pressure: |
32MPa |
| Gear Ratio: |
25 |
| Max. Output Torque: |
23480N.m |
| Max. Output Speed: |
67rpm |
| Control Oil pressure: |
2~7MPa |
| Machine Application: |
~30.0Ton |
Dimensions
Detailed dimensional drawings are provided to ensure precise fitment for construction machinery swinging mechanisms.
Our Advantage
🛡️
Many years in Fluid Power industry.
⚙️
Improved structure based on famous brands.
🏭
OEM Motor supplier for domestic machinery.
🔬
Precision machined Automatic Producing Line.
✅
Real testing for every motor before packing.
📅
One full year warranty.
🌍
Professional international service team.
Frequently Asked Questions (FAQ)
What machines are compatible with the M5X180-25 Swing Motor?
The M5X180-25 is primarily designed for construction machines in the 25.0 to 30.0-ton range, specifically for their swinging operations.
Can this motor replace Kawasaki brand motors?
Yes, this M5X series motor is fully interchangeable with Kawasaki M2X180CHB-RG16D and M2X180CHB-RG20D Swing Motors.
What built-in valves does the M5X series include?
The motor comes equipped with a built-in mechanical brake, a relief valve, and a make-up valve to ensure safe and smooth operation.
How is the quality of the swing motors verified?
Every motor undergoes real-world functional testing before packing, and parts are manufactured on precision automatic production lines.
What kind of warranty is offered?
We provide a comprehensive one-year warranty on our swing motors to ensure peace of mind and reliable performance.
What is the maximum working pressure of this model?
The M5X180-25 Swing Motor supports a maximum working pressure of 32 MPa.
