China GFT9T2 Track Drive Motor Manufacturer, Factory

Model No.: WTM-0902 (GFT 9 T 2) 7-9 ton Excavator Travel Motor. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with Rexroth GFT 9 T 2 Track Drive.

Send Inquiry

Product Description

🎥 Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
WTM-0902	27.5 MPa	11000 N.m	47 rpm	2-speed	4 ports	7-9 Ton

🚀 Key Features

Swash-plate Axial Piston Motor with high efficiency.

Double speed Motor with large ration for widely usage.

Build-in parking brake for safety.

Extremely compact volume and light weight.

Reliable quality and high durability.

Travel smoothly with very low noisy.

Optional Free-wheel device.

Automatic speed changing function is optional.

📝 Brief Introduction

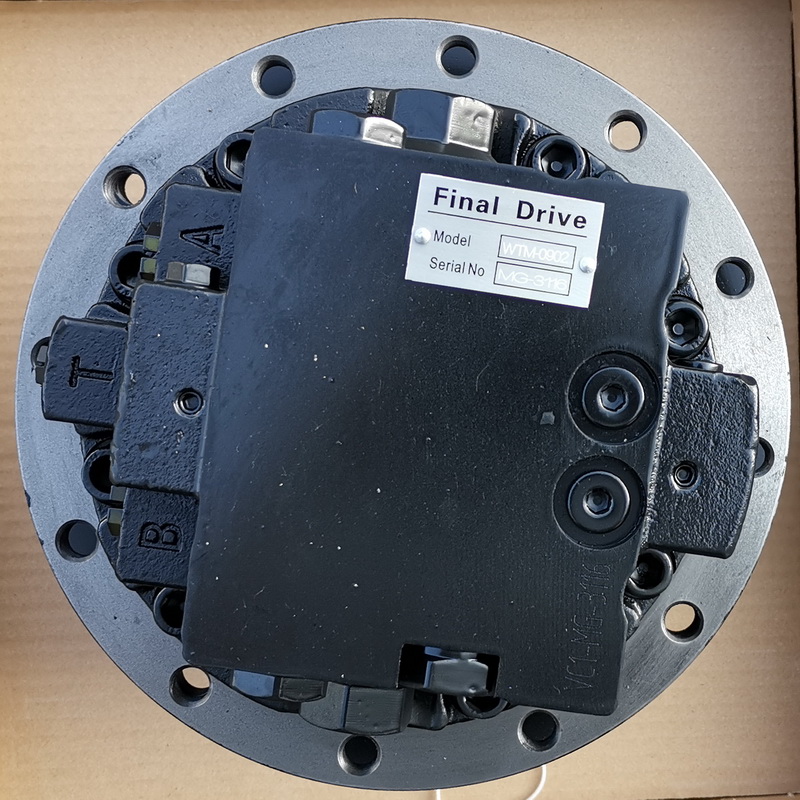

WTM-0902 Final Drive is consisted of Swash-plate Piston Motor integrated with standard GFT series planetary gearbox. It is widely used for track driving hydraulic Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.

⚙️ Specifications

Motor Displacement	23/45 cc/r
Working pressure	27.5 Mpa
Speed control pressure	2~7 Mpa
Ratio options	55.3
Max. torque of Gearbox	11000 N.m
Max. speed of Gearbox	47 rpm
Machine application	7~9 Ton

🔗 Connection

Frame connection diameter	210mm
Frame flange bolt	12-M14
Frame flange P.C.D.	244mm
Sprocket connection diameter	230mm
Sprocket flange bolt	16-M16
Sprocket flange P.C.D.	260mm
Approximate weight	90kg

📊 Summary

WTM-0902 is the ideal replacement for Rexroth GFT 9 T2 2097 Track Drive. It is a Motor with high efficiency and large strength. High performance OEM Final Drives are suitable for mobile machinery. With decades of experiences in Travel Motors, these units provide the best Track Motor resource available in the market.

❓ Frequently Asked Questions

1. What type of machinery is the WTM-0902 Final Drive suitable for? It is designed for 7 to 9-ton crawler equipment, including hydraulic excavators, drilling rigs, and mining equipment.

2. Is the WTM-0902 compatible with Rexroth models? Yes, it is an ideal replacement for the Rexroth GFT 9 T2 2097 Track Drive, offering similar specifications and performance.

3. Does it feature a braking system? Yes, it includes a built-in parking brake to ensure safety during operation.

4. What are the speed options for this motor? It is a 2-speed motor. Additionally, an automatic speed-changing function is available as an option.

5. What is the maximum output torque of the WTM-0902? The unit delivers a maximum output torque of 11,000 N.m with a maximum working pressure of 27.5 MPa.

6. How many oil ports does this model have? The WTM-0902 configuration typically comes with 4 oil ports for hydraulic connection.
