| Model | Max Output Torque (Nm) | Max Working Pressure (Mpa) | Max Output Speed (r/min) | Applicable Tonnage (T) |
|---|---|---|---|---|
| WTM-60 | 60000 | 34.5 | 50 | 30-36T |

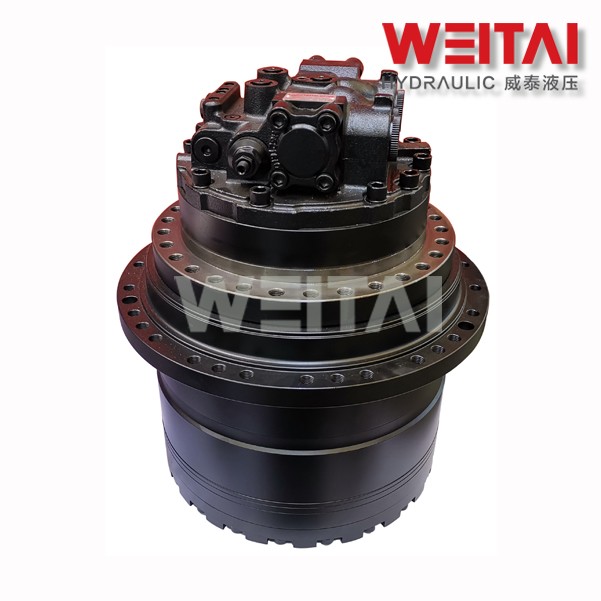

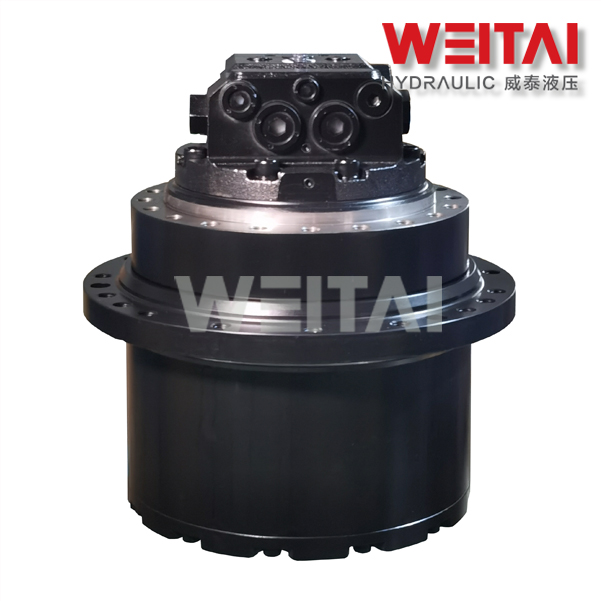

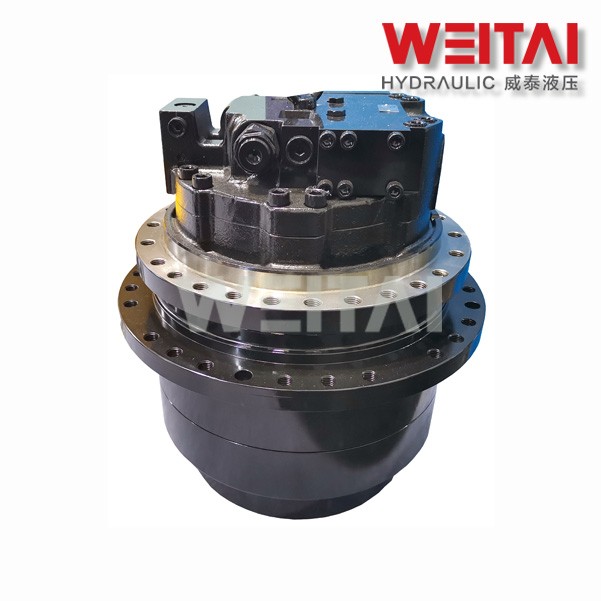

WTM-60 Final Drive is consisted of Swash-plate Piston Motor integrated with high strength planetary gearbox. It is widely used for Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment. It is interchangeable with TM50VC, MAG-230VP-6000, GM60VA, JMV-155 Travel Motors.
| Motor Displacement | 110/180 cc/r |
| Working pressure | 35 Mpa |
| Speed control pressure | 2~7 Mpa |
| Ratio options | 64.8 |
| Max. torque of Gearbox | 63680 N.m |
| Max. speed of Gearbox | 42 rpm |
| Machine application | 30~36 Ton |
| Frame connection diameter | 380mm |
| Frame flange bolt | 26-M120 |
| Frame flange P.C.D. | 440mm |
| Sprocket connection diameter | 450mm |
| Sprocket flange bolt | 18-M24 |
| Sprocket flange P.C.D. | 492mm |
| Flange distance | 102.5mm |
| Approximate weight | 500kg (1100lbs) |
All our products are warranted for ONE FULL YEAR from the date of delivery against defects in materials and workmanship. This warranty does not cover parts that are worn out through the course of normal operation or are damaged through negligence.
Important Reminder:
Unclean hydraulic oil will definitely cause damage to your hydraulic components. This damage is not included in the warranty range. We strongly suggest using new clean oil or ensuring the system oil is clean when using our parts.
