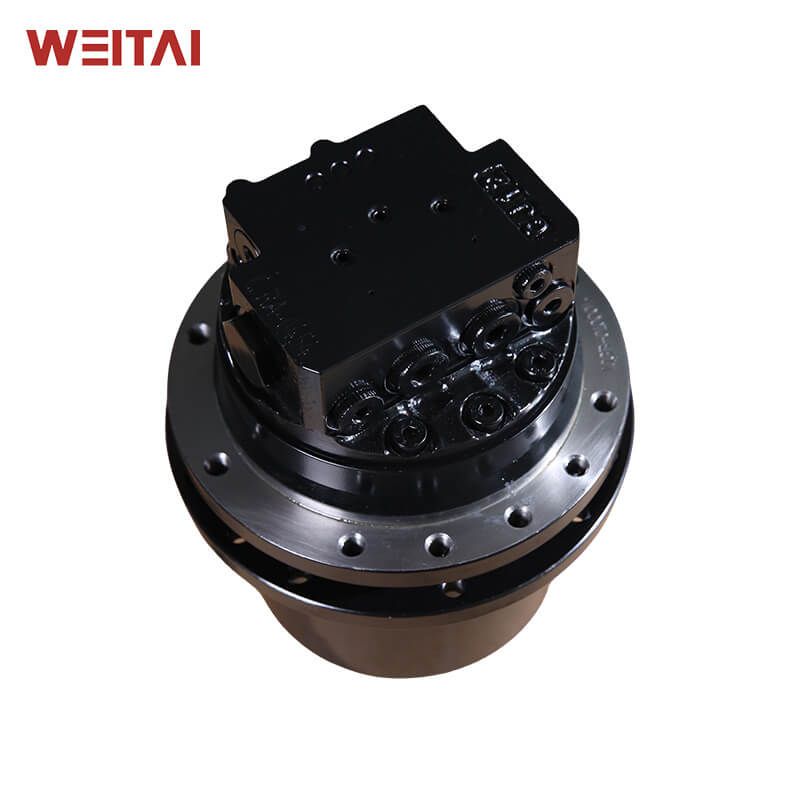

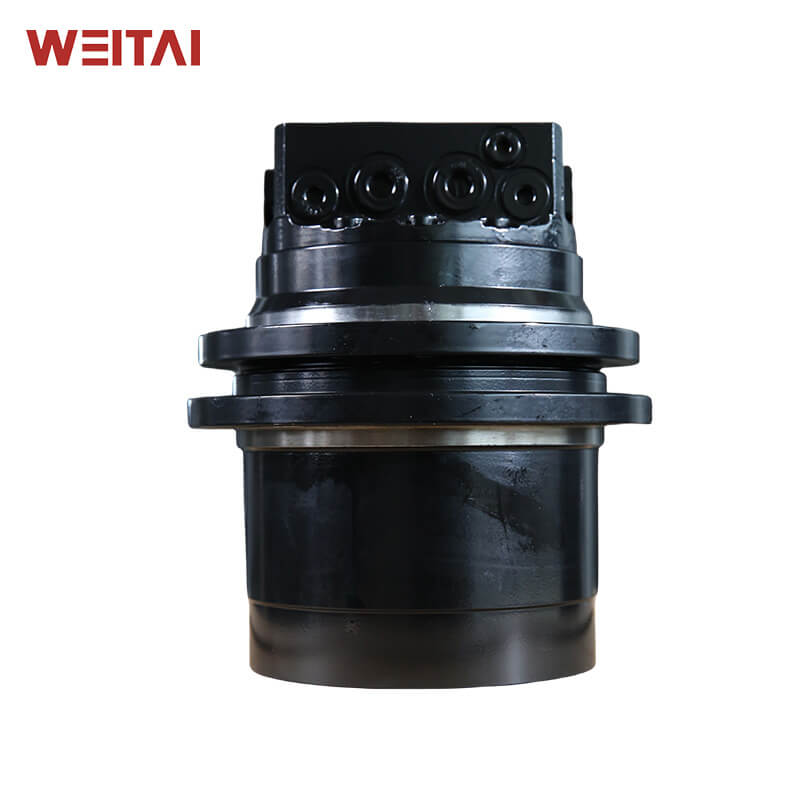

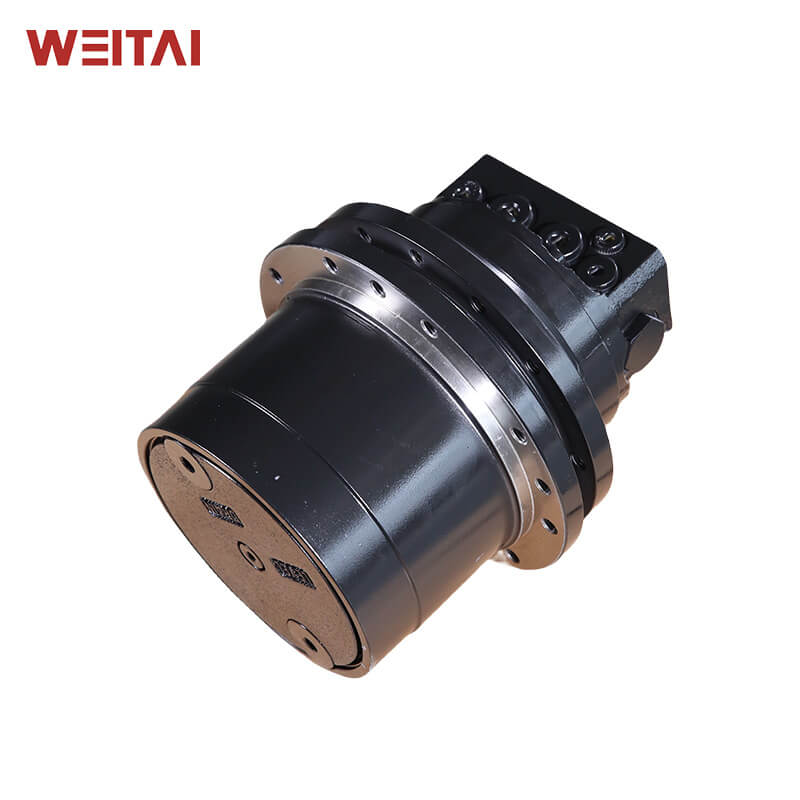

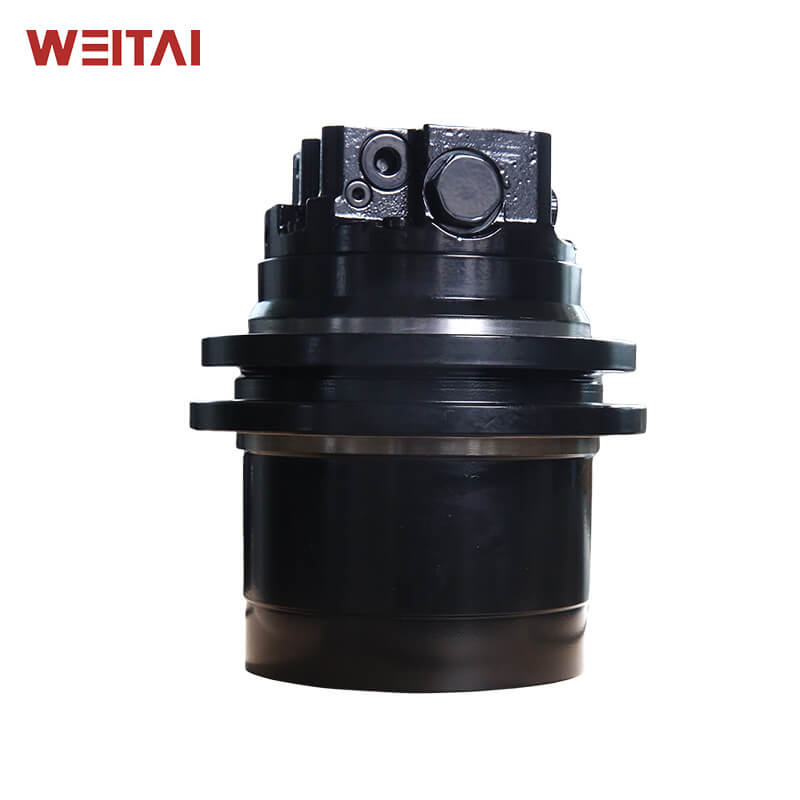

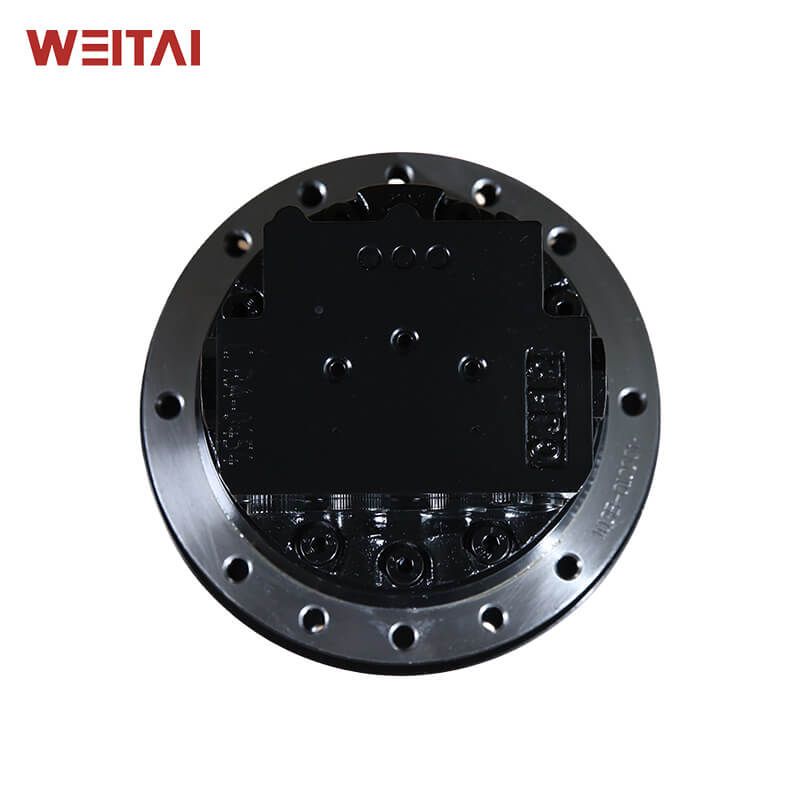

OEM Final Drive Motor WTM-03 Factory, Factories

Model No.: WTM-03 Mini final drive travel motor for 1.5-2.5 ton excavators/diggers. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with PHV-2B, MAG-18V-230, JMV016, 700-2C2K Travel Motors.

Send Inquiry

Product Description

🔴 Video Display

Model	Max Output Torque (Nm)	Max Working Pressure (Mpa)	Max Output Speed (r/min)	Applicable Tonnage(T)
WTM-03	2100	24.5	70	1.5-2.5T

📦 Brief Introduction

WTM-03 Final Drive consists of a swash-plate piston motor integrated with a high-strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.

⭐ Key Features

Swash-plate Axial Piston Motor with high efficiency.
Double-speed Motor with large ratio for wide usage.
Build-in parking brake for safety.
Extremely compact volume and lightweight.
Reliable quality and high durability.
Travel smoothly with very low noise.
The automatic speed-changing function is optional.

📊 Specifications

Model	WTM-03
Motor Displacement	16/9 cc/r
Working pressure	21 Mpa
Speed control pressure	2~7 Mpa
Ratio options	39
Max. torque of Gearbox	2100 N.m
Max. speed of Gearbox	70 rpm
Machine application	1.5~2.5 Ton

※ Displacement and gear ratio can be made as required.

🔗 Connection Dimensions

Model	WTM-03
Frame connection diameter	150mm
Frame flange bolt	12-M10
Frame flange P.C.D.	170mm
Sprocket connection diameter	160mm
Sprocket flange bolt	12-M10
Sprocket flange P.C.D.	180mm
Flange distance	40mm
Approximate weight	28kg (60lbs)

※ Flange hole patterns can be made as required.

📝 Summary

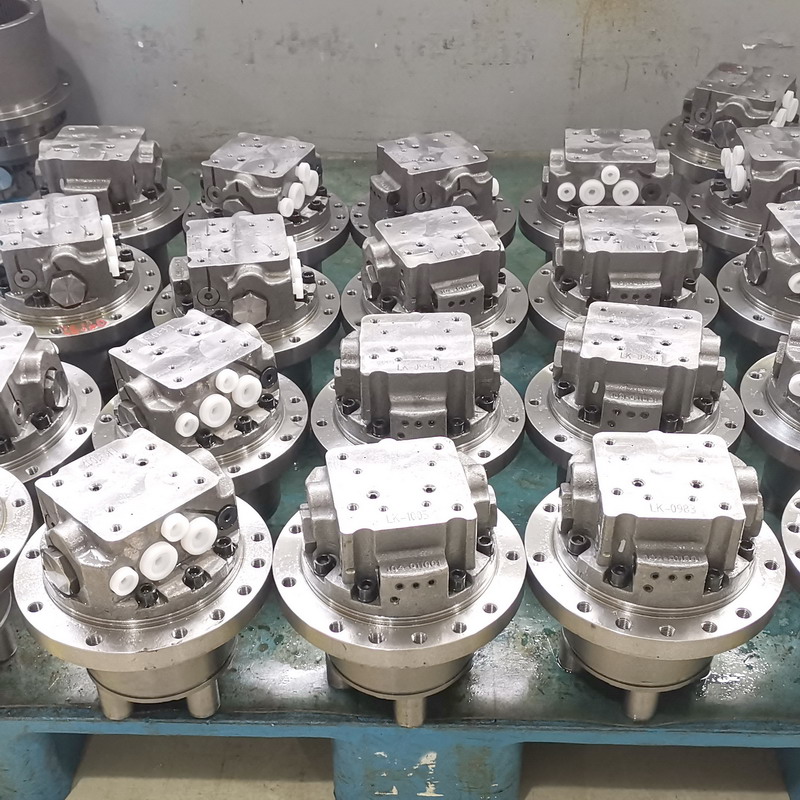

As your reliable OEM Travel Motor supplier, our facility features a high-standard intelligent automatic machining workshop. All key parts are made by CNC machining centers imported from Japan. A dust-free assembling workshop keeps our core parts away from dust pollution. High-accuracy inspection and testing laboratories ensure every part and assembly is qualified. 100% testing and trial runs give us confidence in every travel motor we deliver to our clients.

❓ Frequently Asked Questions (FAQ)

1. What machines is the WTM-03 Final Drive suitable for?

The WTM-03 is specifically designed for mini excavators, drilling rigs, and other crawler equipment ranging from 1.5 to 2.5 tons.

2. Can the displacement and gear ratio be customized?

Yes, we can adjust the motor displacement and gear ratios according to your specific machinery requirements.

3. Does it include a braking system?

Yes, the WTM-03 features a built-in parking brake to ensure safety during operation.

4. What is the maximum output torque of the WTM-03?

The maximum output torque for this model is 2100 Nm, providing powerful performance for small crawler machines.

5. Is the speed-changing function automatic?

The WTM-03 comes as a double-speed motor, and an automatic speed-changing function is available as an optional feature.

6. How is the quality of the travel motors ensured?

Every motor undergoes 100% testing and trials in our high-accuracy laboratory. All key components are manufactured using precision CNC machining.
