| Model | Max Output Torque (Nm) | Max Working Pressure (Mpa) | Max Output Speed (r/min) | Applicable Tonnage (T) |
|---|---|---|---|---|
| WTM-03A | 2900 | 24.5 | 50 | 2.5-3.5T |

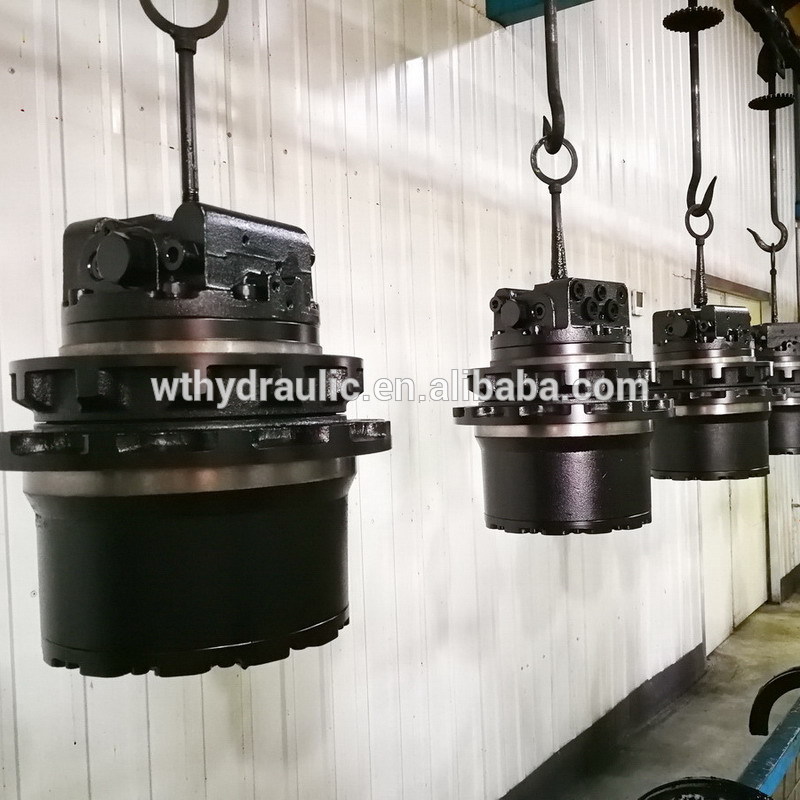

WTM-03A Final Drive consists of a Swash-plate Piston Motor integrated with a high-strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.
| Model | WTM-03A |
| Motor Displacement | 18/12 cc/r |
| Working pressure | 21 Mpa |
| Speed control pressure | 2~7 Mpa |
| Ratio options | 48.6 |
| Max. torque of Gearbox | 2900 N.m |
| Max. speed of Gearbox | 68 rpm |
| Machine application | 2.5~3.5 Ton |
* Displacement and gear ratio can be made as required.
| Model | WTM-03A |
| Frame connection diameter | 165mm |
| Frame flange bolt | 11-M12 |
| Frame flange P.C.D. | 192mm |
| Sprocket connection diameter | 190mm |
| Sprocket flange bolt | 11-M12 |
| Sprocket flange P.C.D. | 215mm (212mm) |
| Flange distance | 50mm |
| Approximate weight | 40kg (90lbs) |
* Flange hole patterns can be made as required.
As your reliable OEM Travel Motor supplier, we utilize a high-standard intelligent automatic machining workshop. All key parts are produced by CNC machining centers imported from Japan. A dust-free assembling workshop keeps core components free from pollution. High-accuracy inspection and testing laboratories ensure every part and assembly is qualified. 100% testing and trial runs provide confidence for every motor delivered to clients.
