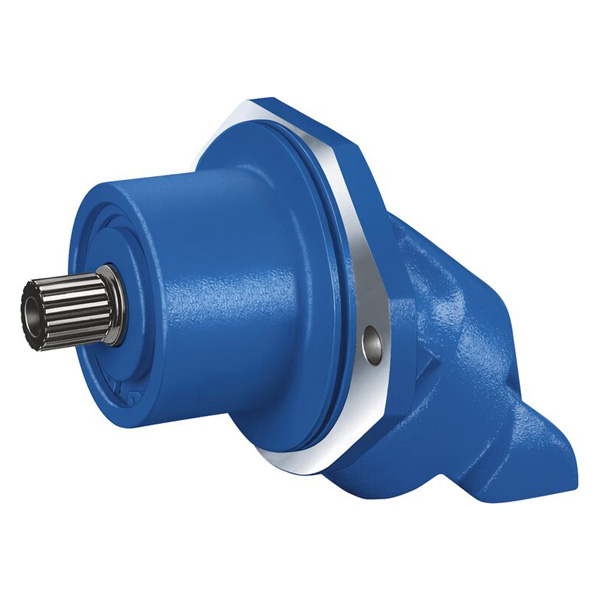

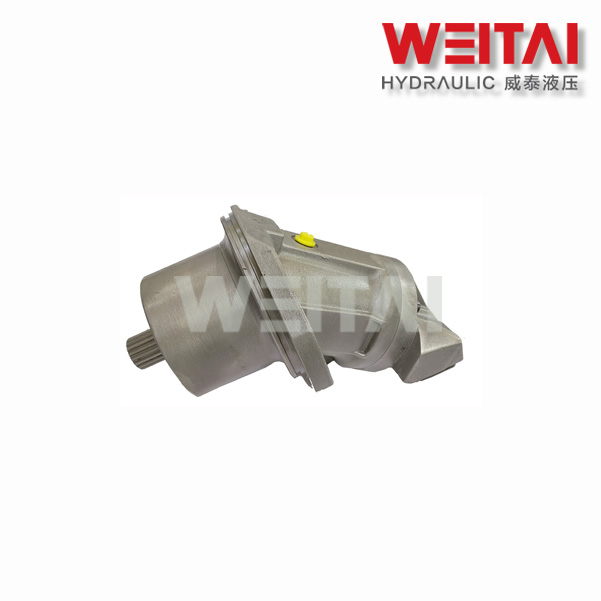

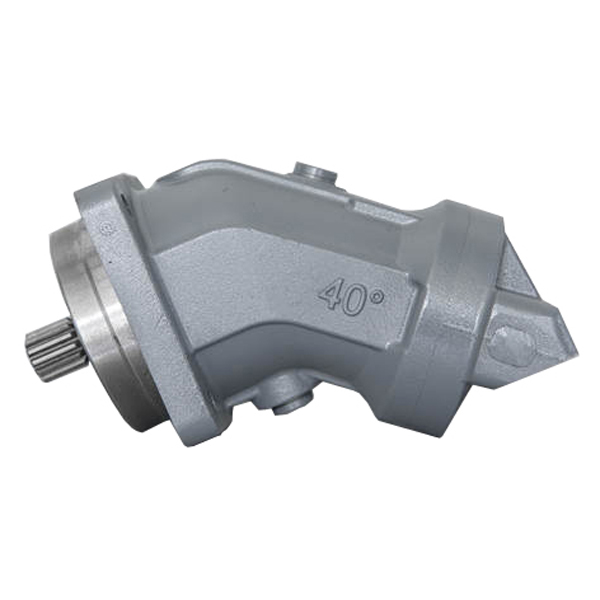

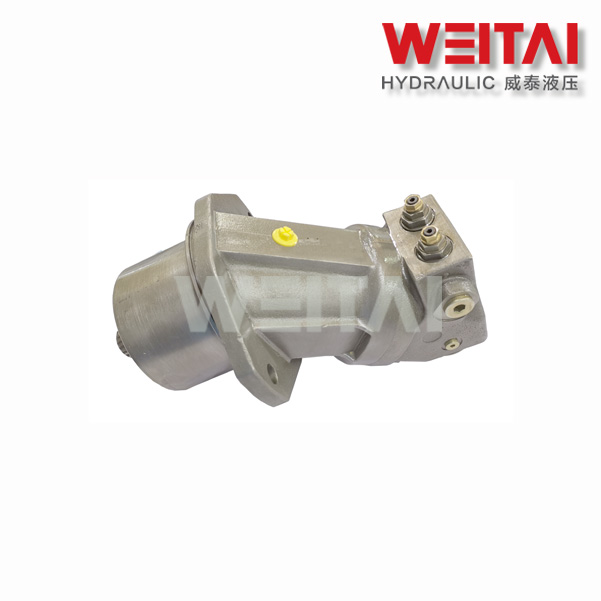

A2FE series Hydraulic Motor is a classic high-pressure motor for all industry and mobile applications. It can work together with GFT and other gearbox directly. Compact bent-axis design for a wide range of applications. It always offer you a high-pressure, wide displacement and reliable performance.
Features
■ Space-saving construction due to recessed mounting flange
■ Easy to install, simply slide into the mechanical gearbox
■ Bent-axis design
■ High power density
■ Very high total efficiency
■ High starting efficiency
■ Optional with integrated pressure relief valve
■ Optional with counterbalance valve
■ Optional with flushing valve
■ Optional with Speed transducer

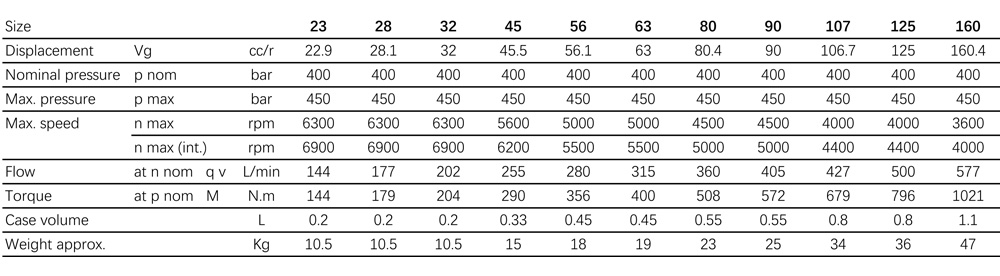

Parameters

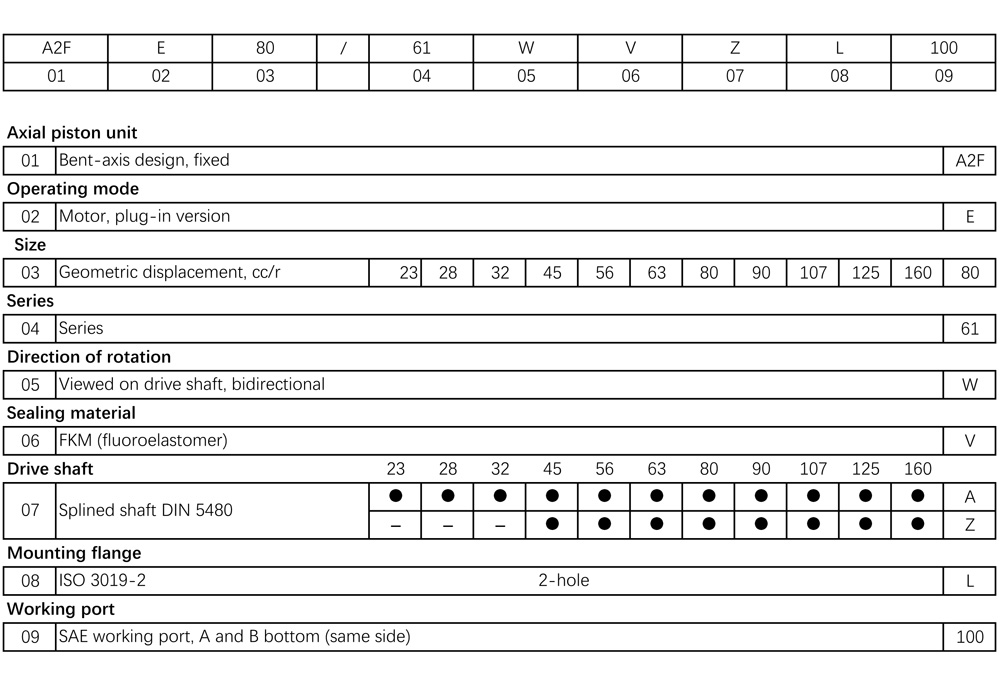

Ordering Code
Frequently Asked Questions
1. What is the main advantage of the A2FE series motor?
The A2FE series features a compact bent-axis design, providing high power density and excellent efficiency, making it ideal for mobile and industrial applications.
2. Can the A2FE motor be used with gearboxes?
Yes, it is designed for direct compatibility with GFT and other types of mechanical gearboxes, ensuring easy installation.
3. Does the motor offer optional valve configurations?
Yes, the A2FE series offers various options, including integrated pressure relief valves, counterbalance valves, and flushing valves to suit specific application requirements.
4. Is the A2FE series energy efficient?
Yes, this series is engineered for very high total efficiency and high starting efficiency, ensuring reliable and optimized performance.
5. Can I install a speed transducer on this motor?
Yes, the A2FE series has an option for an integrated speed transducer to monitor operation effectively.
