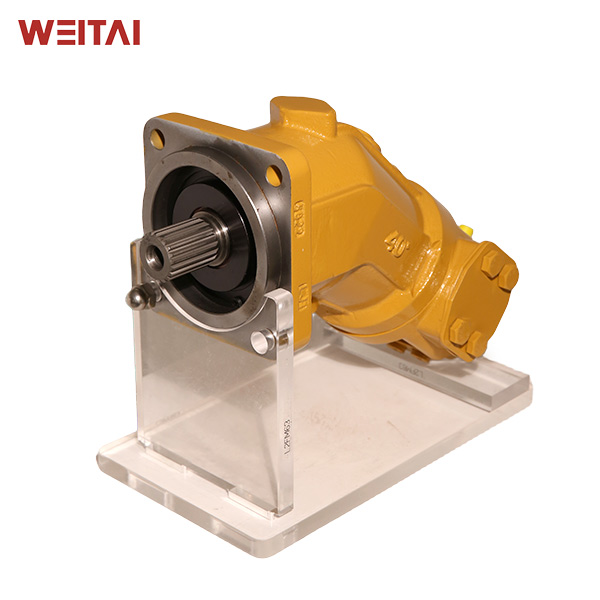

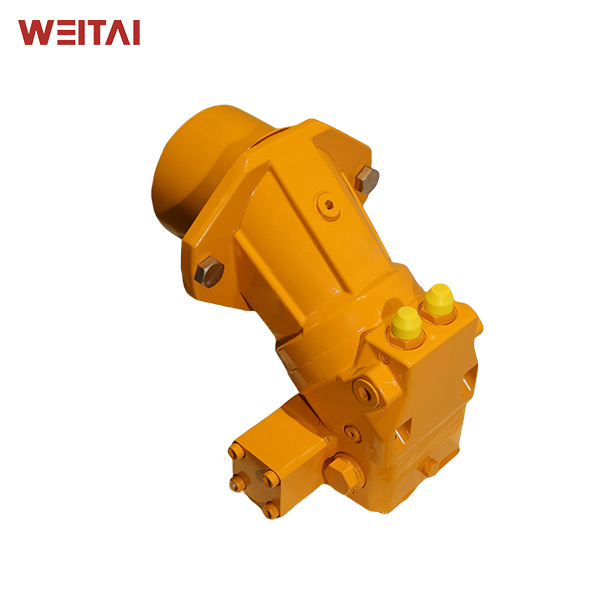

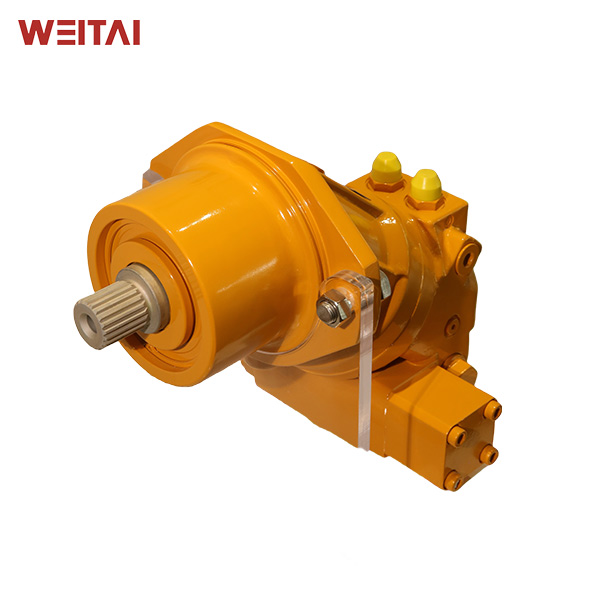

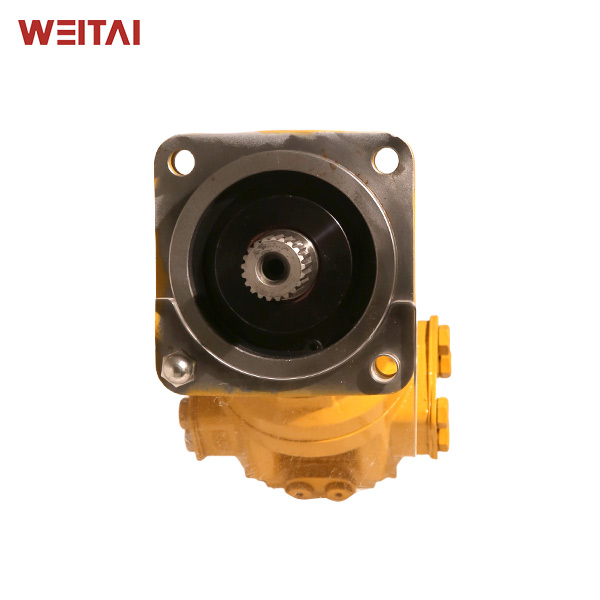

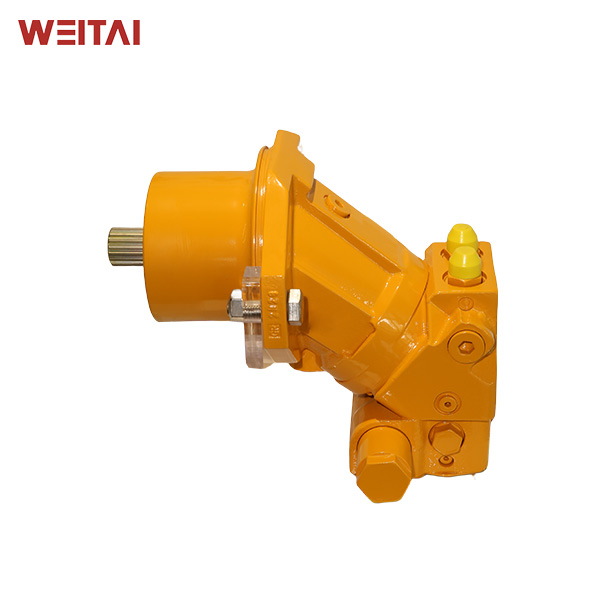

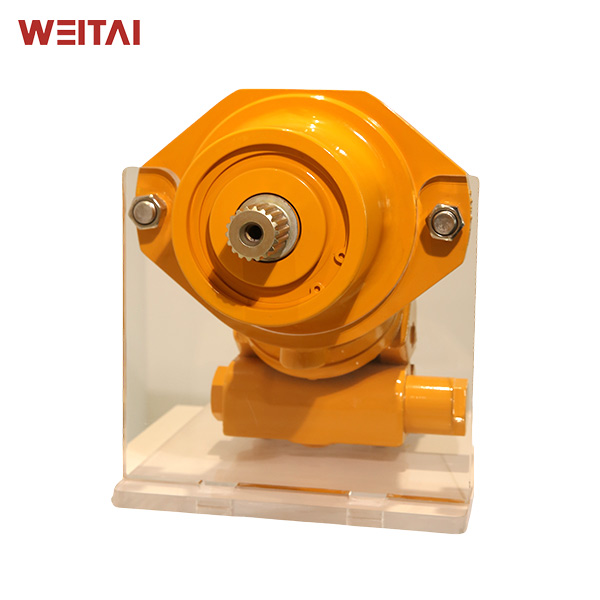

A2FE series pump is a classic high-pressure pump/motor for all industry and mobile applications. Compact bent-axis design for a wide range of applications. It always offer you a high-pressure, wide displacement and reliable performance.
✓ High pressure fixed pump.
✓ For static transmission of Open circuit.
✓ Fixed pump with axial tapered piston rotary group of bent-axis design.
✓ For use in mobile and stationary applications.
✓ The flow is proportional to the drive speed and displacement.
✓ The drive shaft bearings are designed for demanding service life requirements.
✓ High power density and small dimensions.
✓ High total efficiency and economical design.
✓ One-piece tapered piston with piston rings for sealing.
Frequently Asked Questions
What are the primary applications for the A2FE series?
The A2FE series is designed for both mobile and stationary applications, ideal for high-pressure static transmissions in open circuit systems.
What is the benefit of the bent-axis design?
The bent-axis design allows for a more compact dimension while maintaining high power density and excellent total efficiency.
How is the flow rate determined in this fixed pump?
The flow of the A2FE pump is directly proportional to the drive speed and the displacement of the unit.
Are these pumps suitable for high-pressure environments?
Yes, the A2FE series is a classic high-pressure motor/pump specifically engineered to provide reliable performance under high-pressure conditions.
Does the design include specialized sealing?
Yes, it features a one-piece tapered piston equipped with piston rings specifically for efficient and durable sealing.
Is the A2FE pump an economical choice for industrial use?
Absolutely. It combines a high-efficiency rotary group with an economical design, making it a cost-effective solution for various industries.
