200 cc/r displacement.

All-purpose high pressure motor, Open and closed circuit.

Nominal pressure 400 bar, Maximum pressure 450 bar.

A6VM200HP, A6VM200EP, A6VM200EZ, A6VM200HA control. Interchangeable with Rexroth A6VM Motor.

Send Inquiry

Product Description

A6VM200 Series Variable Displacement Motor

The A6VM200 series Motor is a widely used open and closed loop variable motor designed for high-pressure environments. With a pressure capacity of up to 450 bar and various control types, it delivers exceptional performance in demanding conditions. It is extensively utilized in agricultural machinery, construction machinery, aerial lifts, and diverse industrial applications.

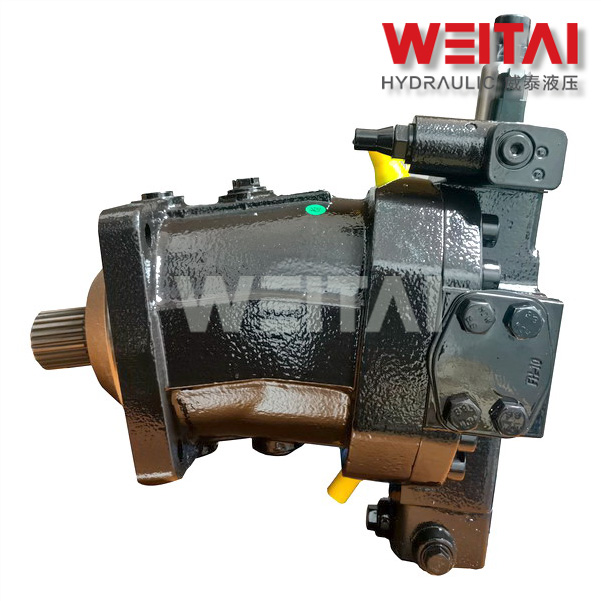

A6VM200 Series Motor

Key Features

✔ Typical Bent-axis design Motor.

✔ Standard high pressure motor for widely usages.

✔ Robust motor with long service life.

✔ Approved for very high rotational speeds.

✔ High control range (can be swiveled to zero).

✔ High torque for heavy duty driving.

✔ Variety of controls for different applications.

✔ Optionally with flushing and boost-pressure valve mounted.

✔ Optionally with mounted high-pressure counterbalance valve.

✔ Optionally with Speed transducer.

✔ Optionally with Pressure sensor.

Technical Parameters: A6VM200

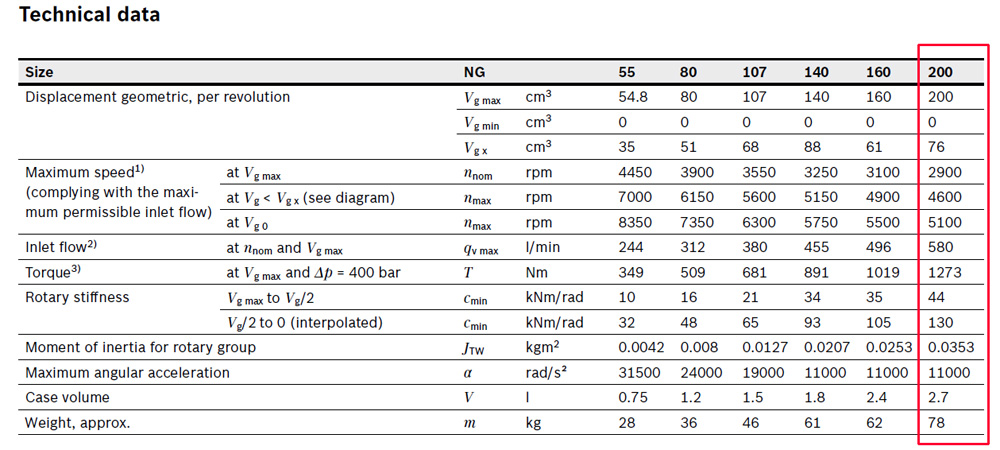

A6VM200 specification

Connection Dimensions

Interchangeable with Rexroth A6VM200 Motor. Various shaft options and control methods are available to suit specific machine requirements.

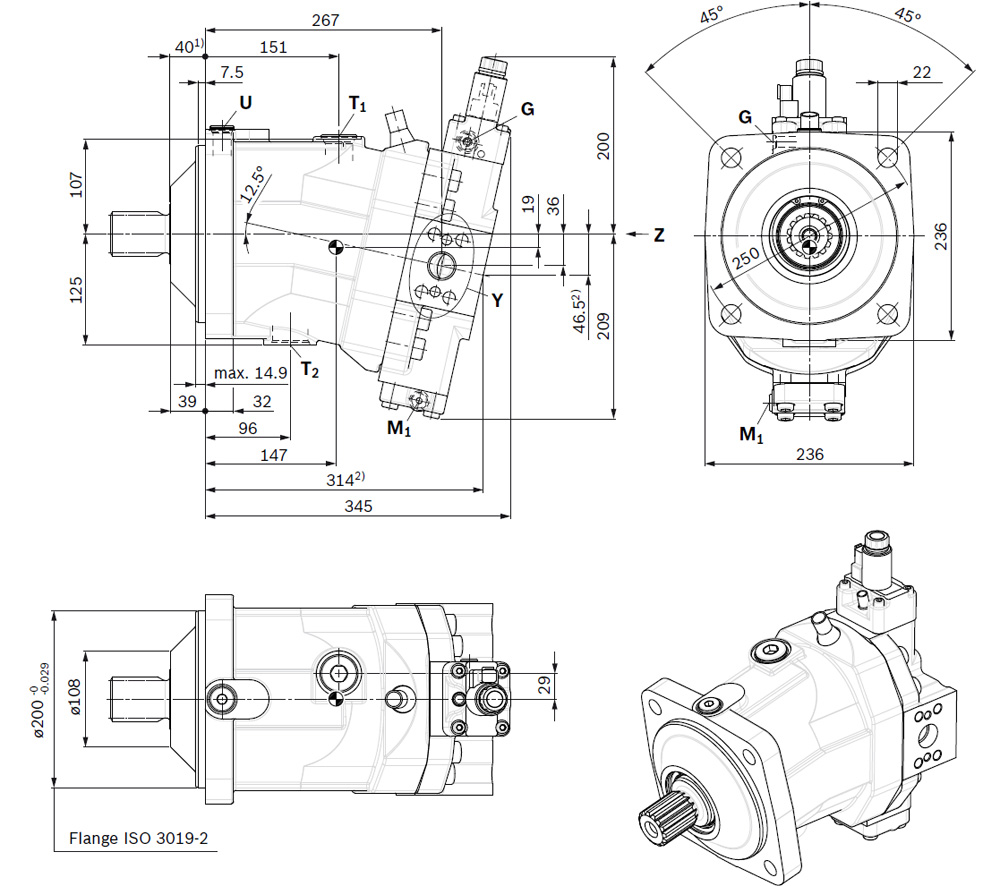

A6VM200 drawing

A6VM200 shaft detail

A6VM200 control option

A6VM200 industrial application

Frequently Asked Questions

What is the maximum pressure rating for the A6VM200 motor?

The A6VM200 series motor is designed for high-pressure circumstances and can handle up to 450 bar.

Is the A6VM200 compatible with Rexroth systems?

Yes, the connection dimensions of this motor are fully interchangeable with the Rexroth A6VM200 Motor.

What are the primary applications for this motor?

It is widely used in construction machinery, agricultural equipment, aerial lifts, and various heavy-duty industrial applications.

Does this motor support speed and pressure monitoring?

Yes, there are optional configurations available that include mounted speed transducers and pressure sensors.

Can the motor displacement be adjusted to zero?

Yes, the A6VM200 features a high control range and the bent-axis design allows it to be swiveled to zero displacement.

What type of design does the A6VM200 utilize?

It utilizes a robust bent-axis design, which is a standard for high-performance variable displacement motors.
