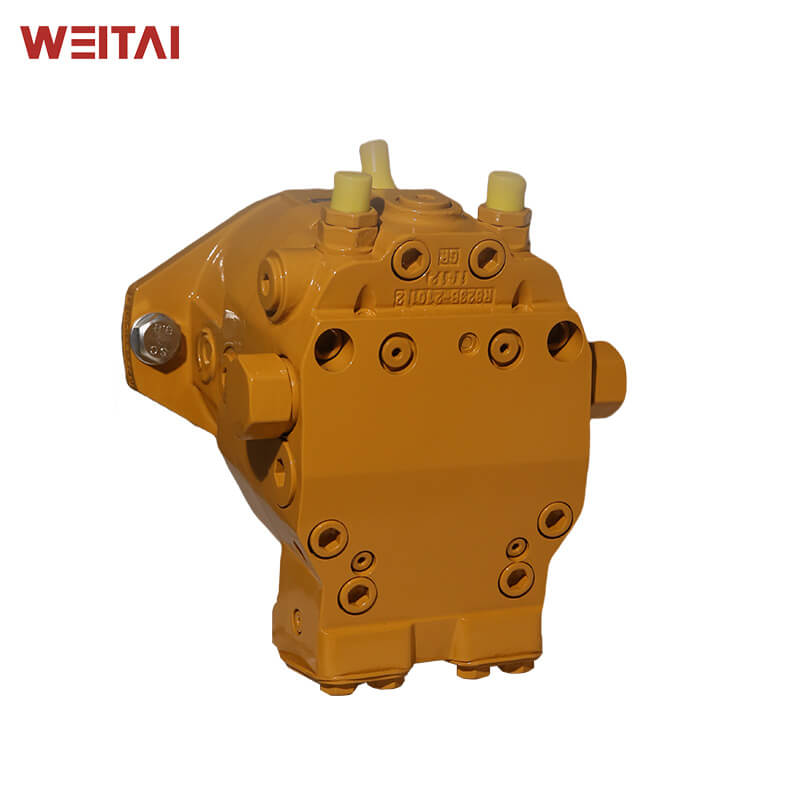

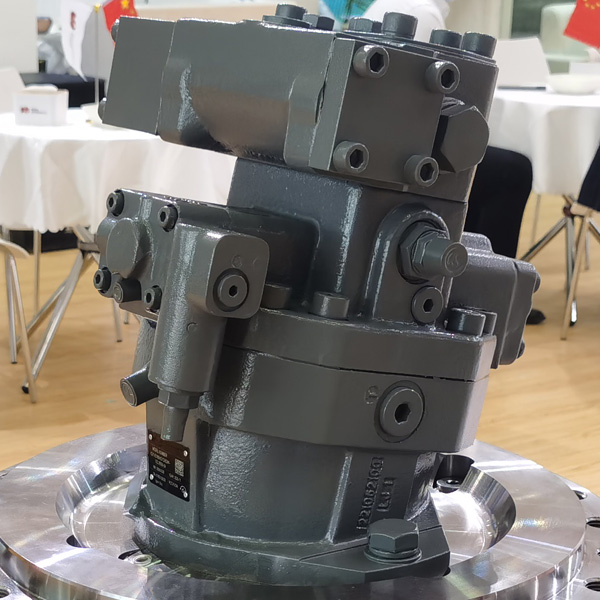

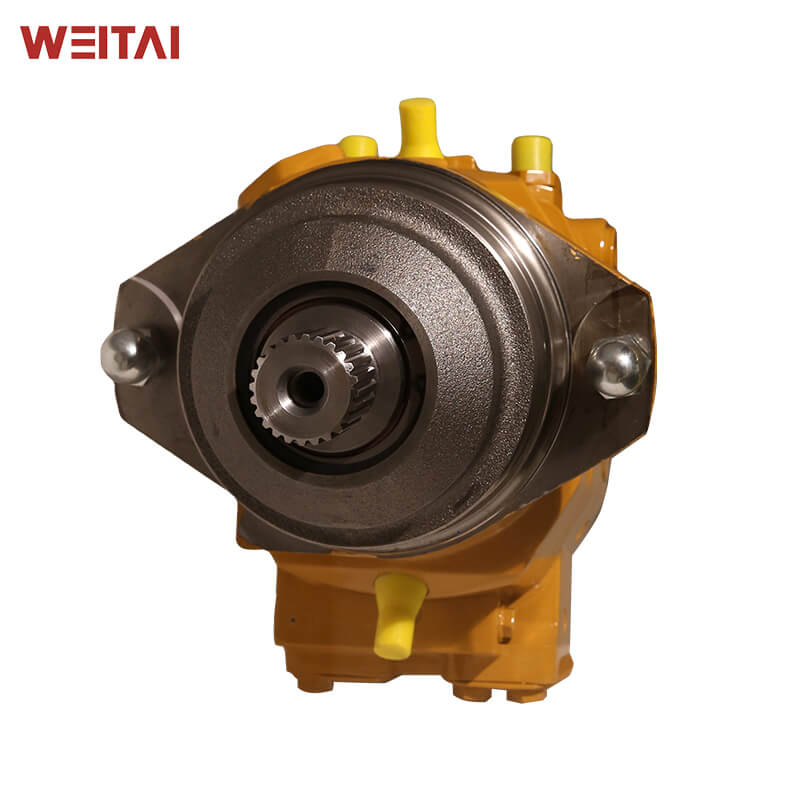

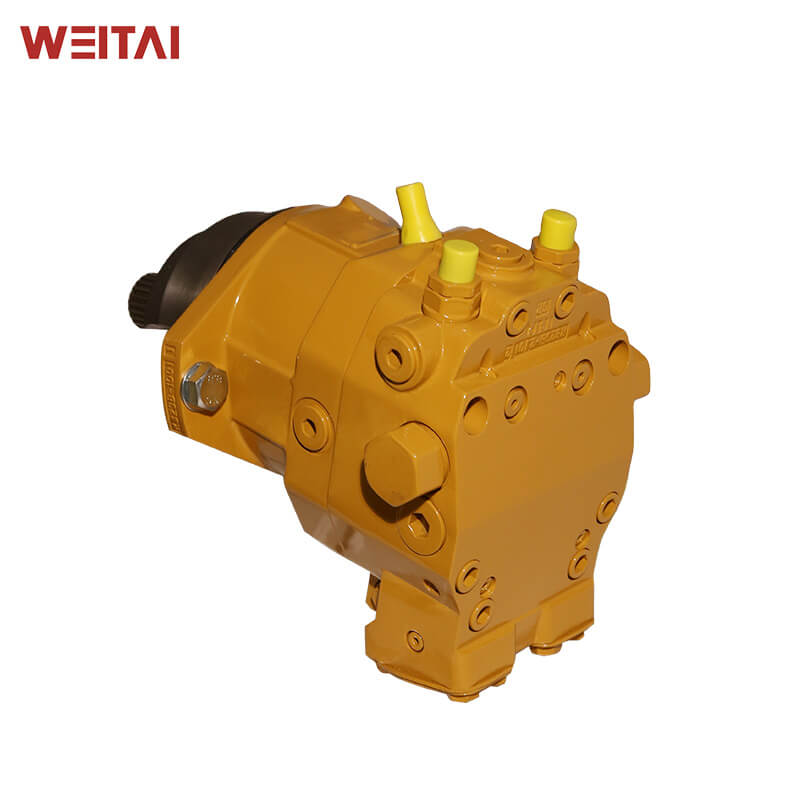

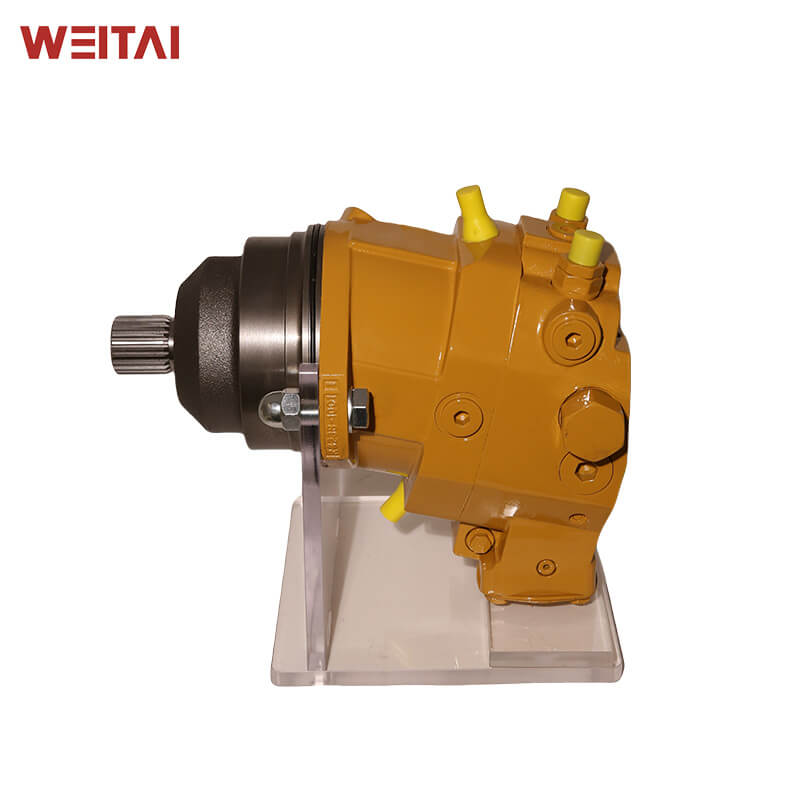

A6VE28/63 series plug-in motor is a widely used open and closed loop variable motor for high-pressure circumstances. The high pressure could be made 450 bar and various control types. This type of hydraulic plunger pump is a plug-in structure and usually works with a mechanical gearbox to achieve a higher torque.
Main Features
✔Typical Bent-axis design Motor.
✔Standard high-pressure plug-in motor for wide usage.
✔Far-reaching integration in the mechanical gearbox.
✔Easy to install, plug into the mechanical gearbox.
✔For use especially in mobile applications.
✔Optionally with a flushing valve mounted.
✔Optionally with mounted high-pressure counterbalance valve.
✔Optionally with speed transducer or pressure sensor.

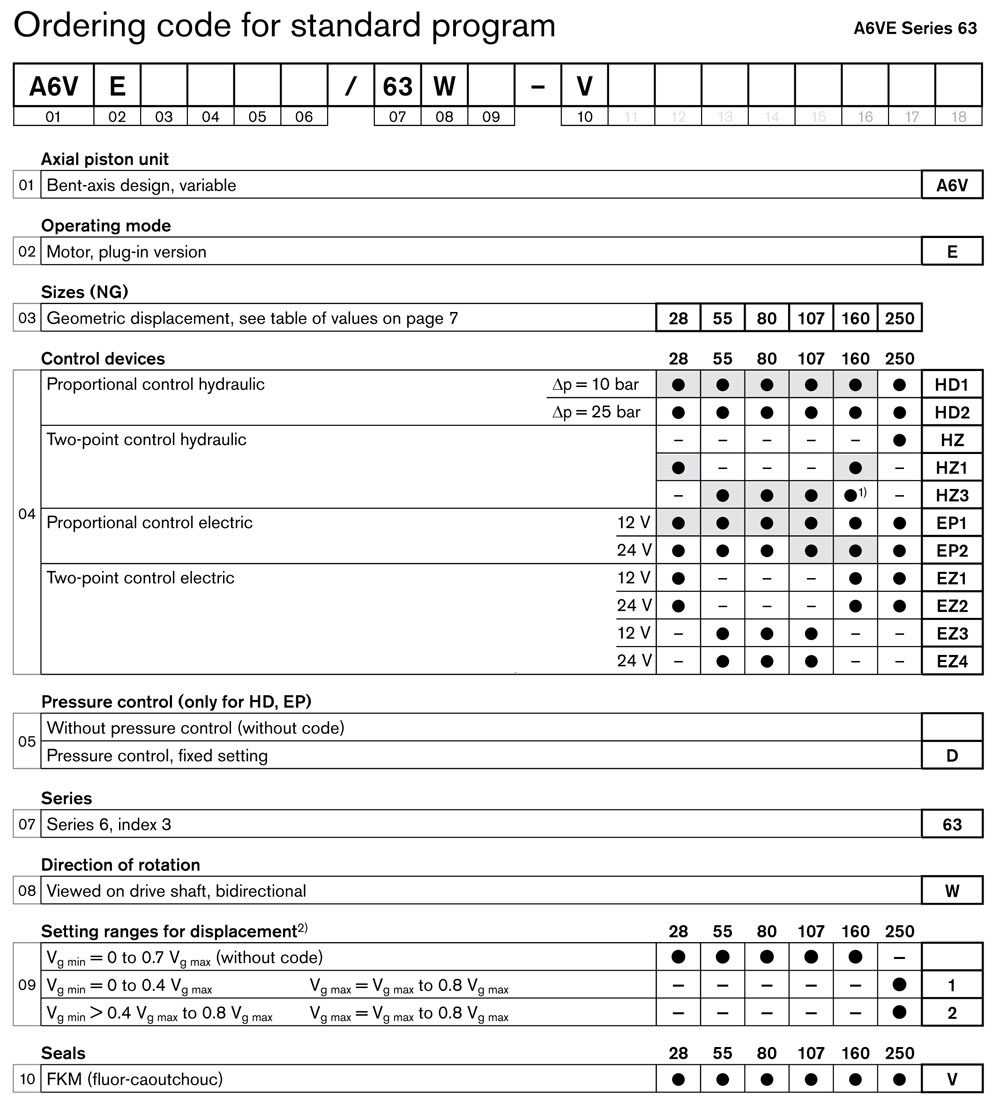

Control Types
HD Proportional control hydraulic
EP Proportional control electric
HZ Two-point control hydraulic
EZ Two-point control electric

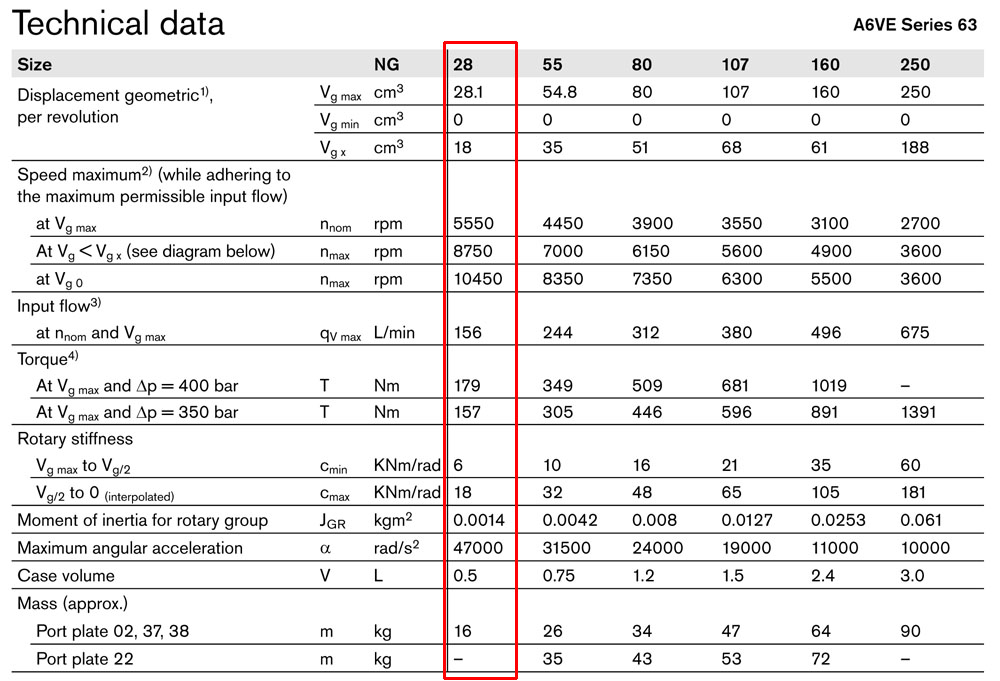

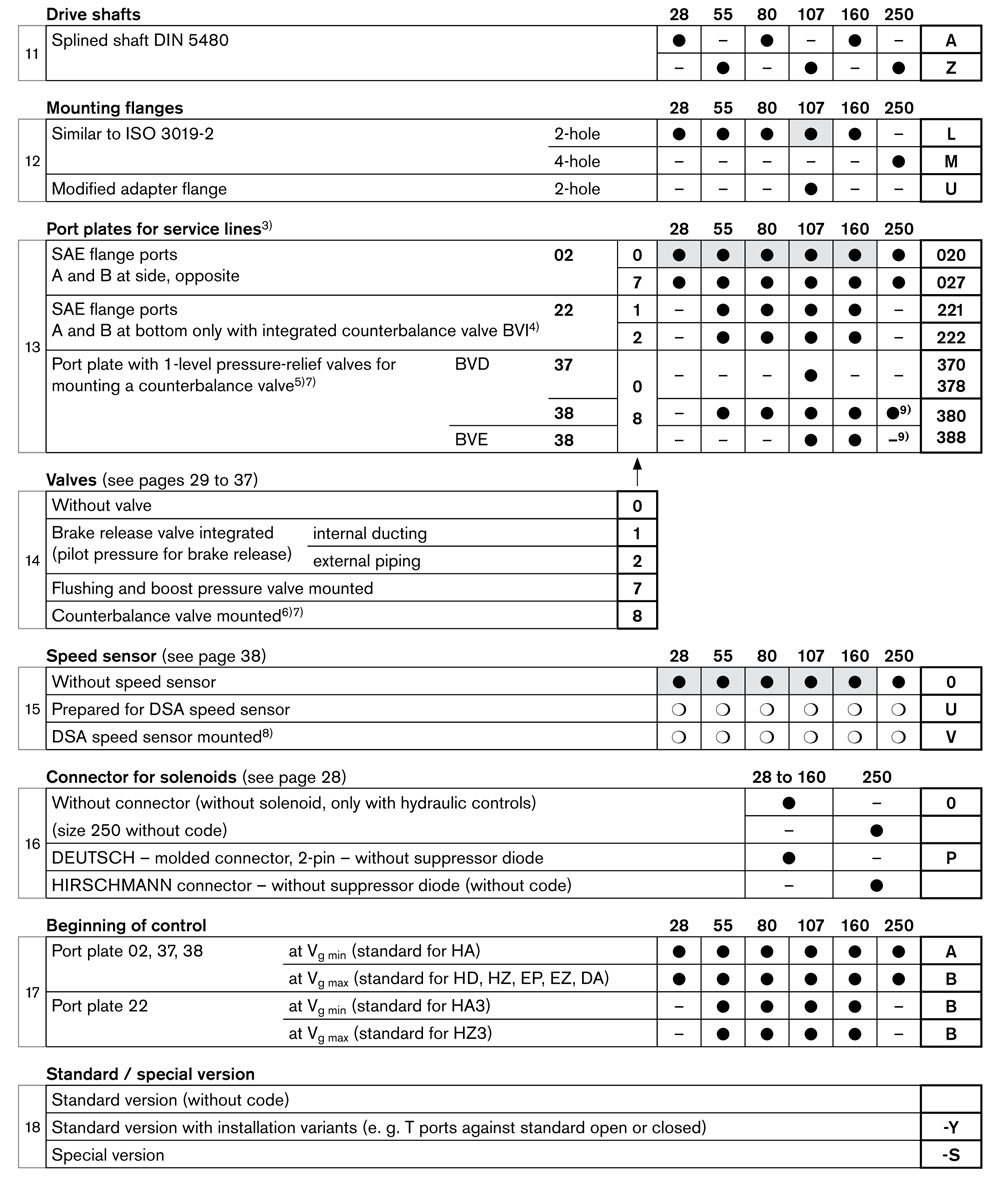

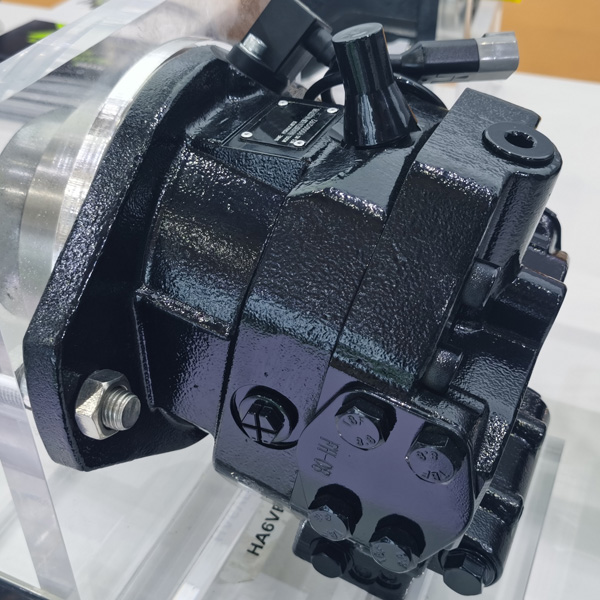

Connection Dimensions & Parameters
Interchangeable with Rexroth A6VE28 Motor.
FAQ
What is the maximum pressure for the A6VE28 series motor?
The motor is designed for high-pressure circumstances and can handle pressures up to 450 bar.
Is this motor compatible with other major brands?
Yes, the connection dimensions are interchangeable with the Rexroth A6VE28 series motors.
What are the primary applications for this plug-in motor?
It is specifically designed for mobile applications and is commonly used in both open and closed loop systems where integration with a mechanical gearbox is required.
What control types are available for the A6VE28 series?
Available control types include HD (Proportional hydraulic), EP (Proportional electric), HZ (Two-point hydraulic), and EZ (Two-point electric).
Can optional valves be mounted on the motor?
Yes, it can optionally be mounted with a flushing valve or a high-pressure counterbalance valve depending on your application needs.
What is the benefit of the plug-in structure?
The plug-in structure allows for easy installation and far-reaching integration into mechanical gearboxes to achieve significantly higher torque.
