A6VM160 series Motor is a widely used open and closed loop variable motor for high pressure circumstances. The high pressure could be made 450 bar and various control types. It is widely used in Agricultural machinery, Construction machinery, Aerial Lift, and industrial applications.
Features
✓Typical Bent-axis design Motor.
✓Standard high pressure motor for widely usages.
✓Robust motor with long service life.
✓Approved for very high rotational speeds.
✓High control range (can be swiveled to zero).
✓High torque.
✓Variety of controls for different applications.
✓Optionally with flushing and boost-pressure valve mounted.
✓Optionally with mounted high-pressure counterbalance valve.
✓Optionally with Speed transducer.
✓Optionally with Pressure sensor.

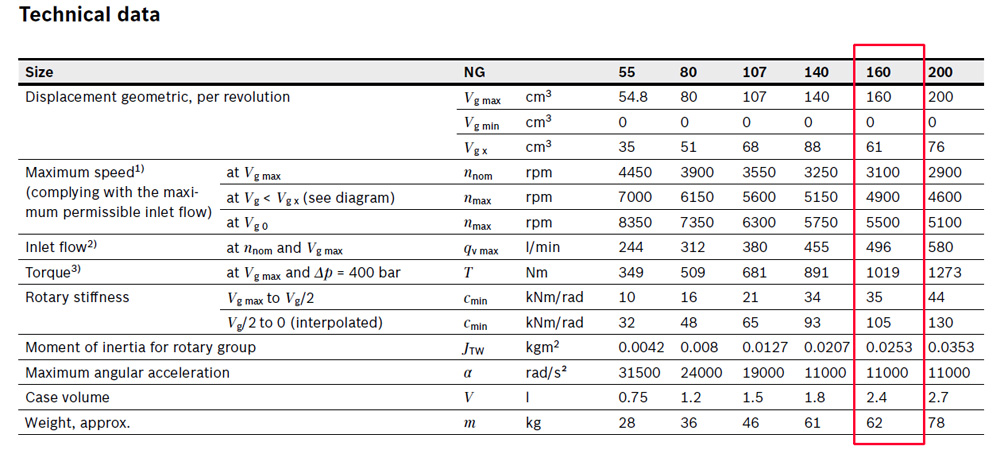

Parameters: A6VM160

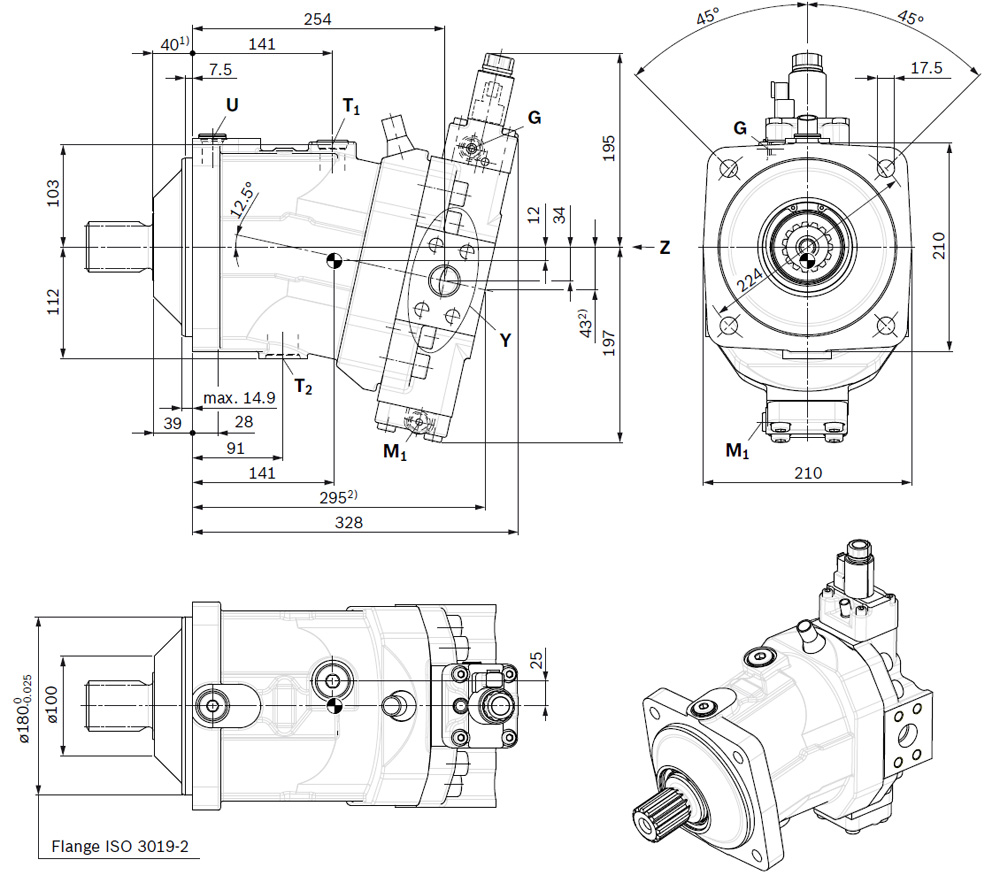

Connection Dimensions
Interchangeable with Rexroth A6VM160 Motor.

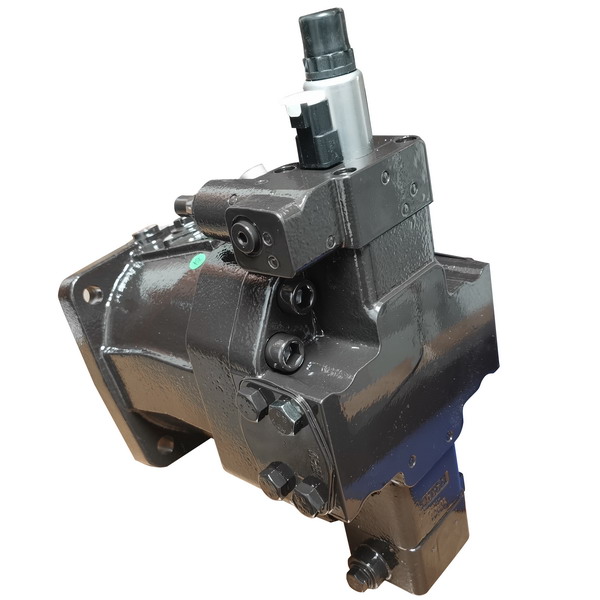

Shaft & Control Options
Various shaft options and control methods available.
Frequently Asked Questions
What are the primary applications for the A6VM160 series motor?
The A6VM160 is widely used in high-pressure environments, specifically in agricultural machinery, construction machinery, aerial lifts, and various industrial applications.
What is the maximum pressure rating for this motor?
This series is designed for high-pressure circumstances and can handle pressures up to 450 bar.
Is the A6VM160 compatible with other major brands?
Yes, the connection dimensions of this motor are fully interchangeable with the Rexroth A6VM160 motor.
Does this motor support both open and closed loop systems?
Yes, it is a versatile variable motor suitable for both open and closed loop hydraulic circuits.
Can I monitor the speed and pressure of the motor?
The motor offers optional configurations including a speed transducer and a pressure sensor for precise monitoring.
What is the benefit of the bent-axis design?
The typical bent-axis design allows for high rotational speeds, high torque, and a wide control range, including the ability to swivel to zero displacement.
